P1575

Electrical Diagram:

CIRCUIT DESCRIPTION

This diagnostic test functions on the assumption that a brake application causes a sudden decrease in non-drive wheel speed,

The Extended Travel Brake Switch is a normally closed switch. When the Extended Travel Brake Switch is closed, the PCM senses ignition voltage on
the Extended Travel Brake Switch signal circuit.

If the PCM senses a voltage on the Extended Travel Brake Switch signal circuit when the Extended Travel Brake Switch should be open, this DTC sets.

CONDITIONS FOR SETTING THE DTC

^ Engine speed is greater than 700 RPM.

^ Engine operating longer than 2.0 second.

^ Wheel speed must be greater than 30 MPH in order to enable the diagnostic. The diagnostic will disable when the wheel speed is below 10 MPH.

^ Vehicle speed is decreasing at a rate greater than 10.4 MPH over a one second period.

^ The PCM detects voltage on the Extended Travel Brake Switch circuit when the Extended Travel Brake Switch should be open.

^ The above conditions present for 1.5 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ The PCM stores the DTC information into memory when the diagnostic runs and fails.

^ The Malfunction Indicator Lamp (MIL) will not illuminate.

^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC

^ A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.

^ The PCM battery voltage is interrupted.

^ Use a scan tool in order to clear the MIL/DTC.

DIAGNOSTIC AIDS

In order to adjust the Extended Travel Brake Switch perform the following:

1. With the brake pedal depressed, insert the Brake Lamp Switch into the retainer until the switch body seats in the retainer. You can hear clicks as you push the threaded portion of the switch through the retainer.

2. Slowly pull the brake pedal fully rearward against the stop until you can no longer hear the clicks.

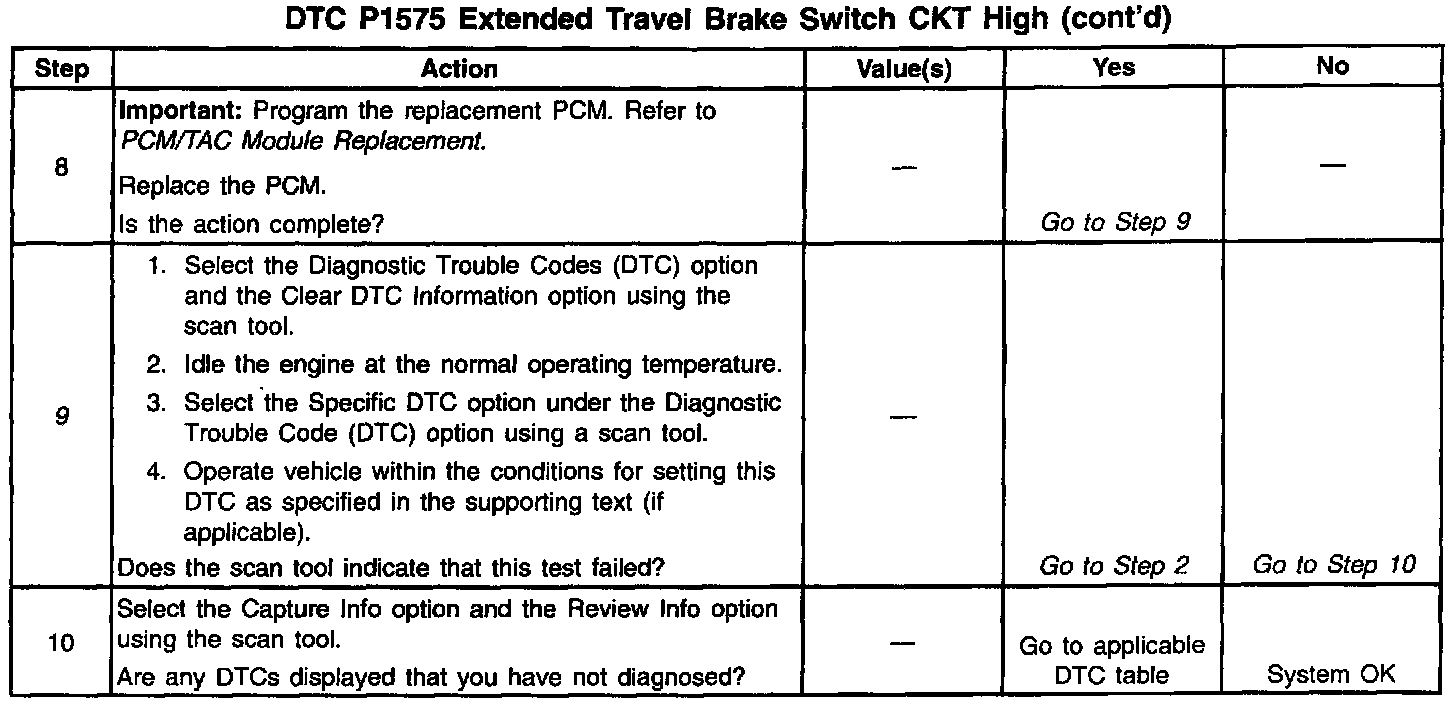

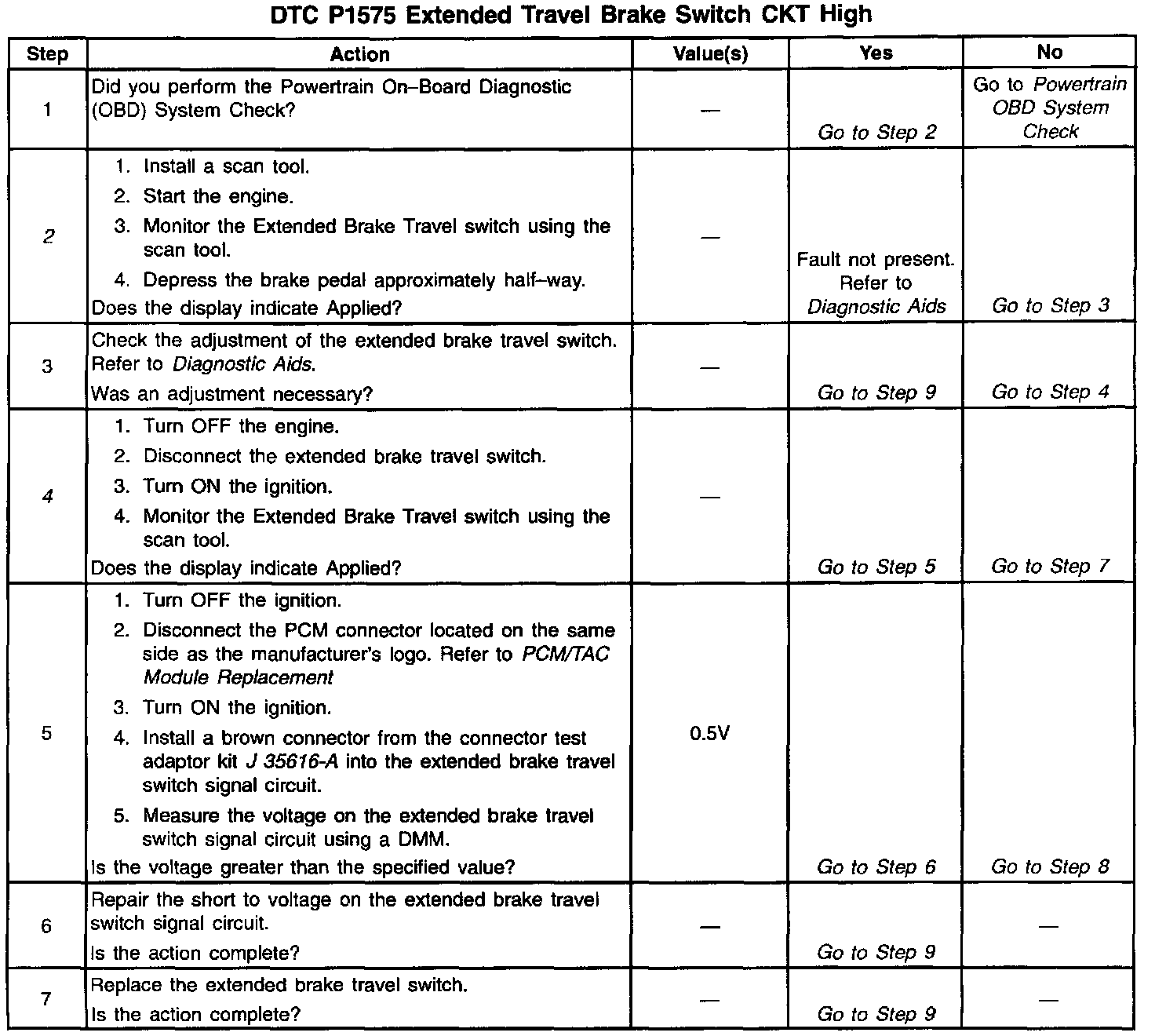

TEST DESCRIPTION

The numbers below refer to the step numbers on the diagnostic table.

2. This step determines if the fault is present.

4. This step checks for a Extended Travel Brake Switch circuit for being shorted to B+.

9. This DTC will not report a pass. The scan tool status for this DTC will never report a pass. The scan tool will only display when the diagnostic fails. The repair is not complete if the scan tool indicates that the diagnostic ran and failed.
