P0500

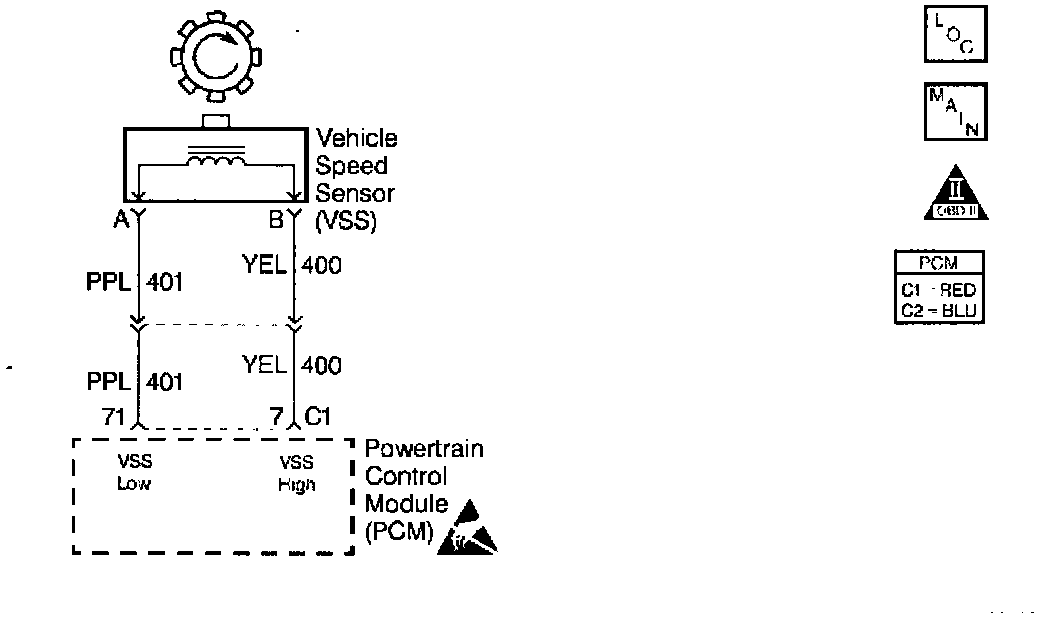

Electrical Diagram:

CIRCUIT DESCRIPTION

A toothed wheel mounted on the output shaft of the transmission generates an AC voltage pulse as it moves past the Vehicle Speed Sensor (VSS). The VSS contains a permanent magnet surrounded by a coil of wire, which produces a magnetic field. The toothed wheel interrupts the magnetic field this generates an AC voltage pulse. As the vehicle speed increases the AC voltage pulse rate also increases.

The PCM supplies this signal to the BCM and the instrument cluster.


CONDITIONS FOR SETTING THE DTC

^ DTCs P0107, P0108, P0117, P0118, P0506, P0507, P1120, P1220, P1221 are not set.

^ ECT is greater than 35°C (95°F)

^ Engine speed is greater than 1000 RPM.

^ TP sensor angle is greater than 10%.

^ MAP is greater than 40 kPa when A/C is OFF.

^ MAP is greater than 45 kPa when A/C is ON.

^ All conditions met for 2 seconds.

^ PCM detects vehicle speed at 0 km/h (0 mph) for 50 seconds.


ACTION TAKEN WHEN THE DTC SETS

^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive drive trip that the diagnostic runs and fails.

^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the. diagnostic reports a failure on the second consecutive drive trip, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.

CONDITIONS FOR CLEARING THE MIL/DTC

^ The PCM turns the MIL OFF after three consecutive drive trips that the diagnostic runs and does not fail.

^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.

^ A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.

^ The PCM battery voltage is interrupted.

^ Use a scan tool in order to clear the MIL/DTC.


DIAGNOSTIC AIDS

Inspect all of the circuits to the PCM and the VSS. Inspect the terminal connections at the VSS harness connector and at the PCM harness connector. If all of the circuits and connections are OK, replace the PCM.

For intermittents, refer to Symptoms. Testing and Inspection

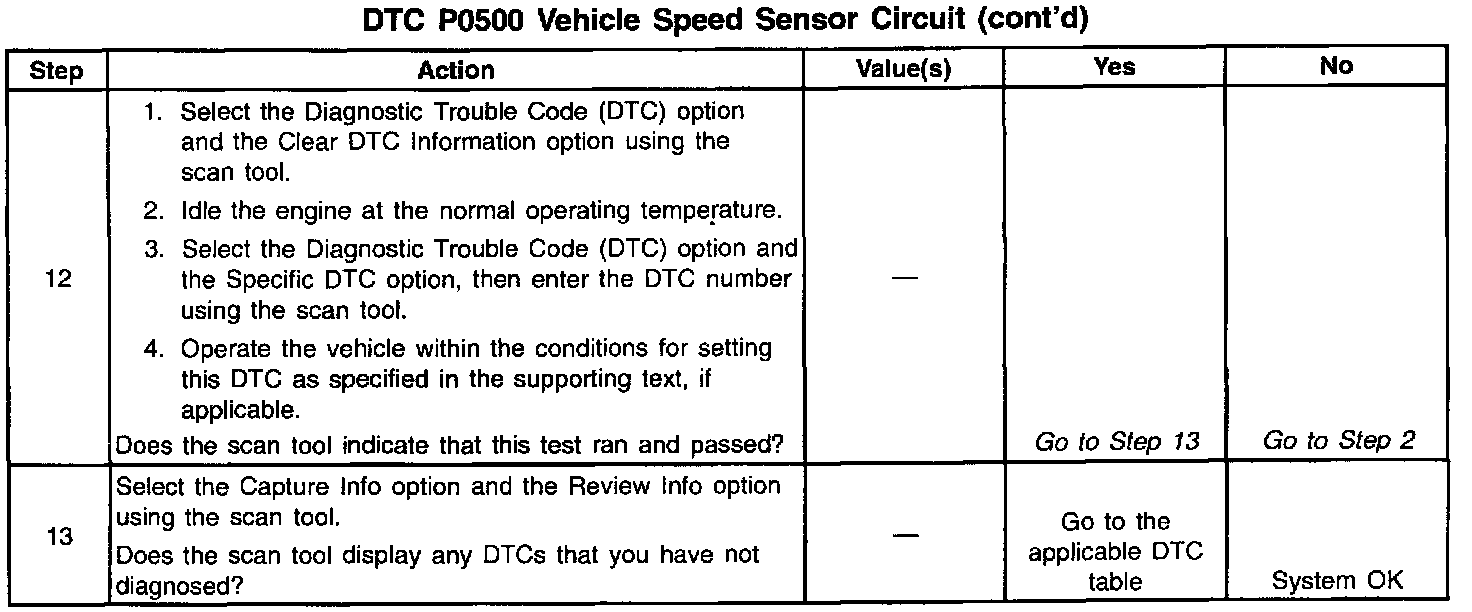

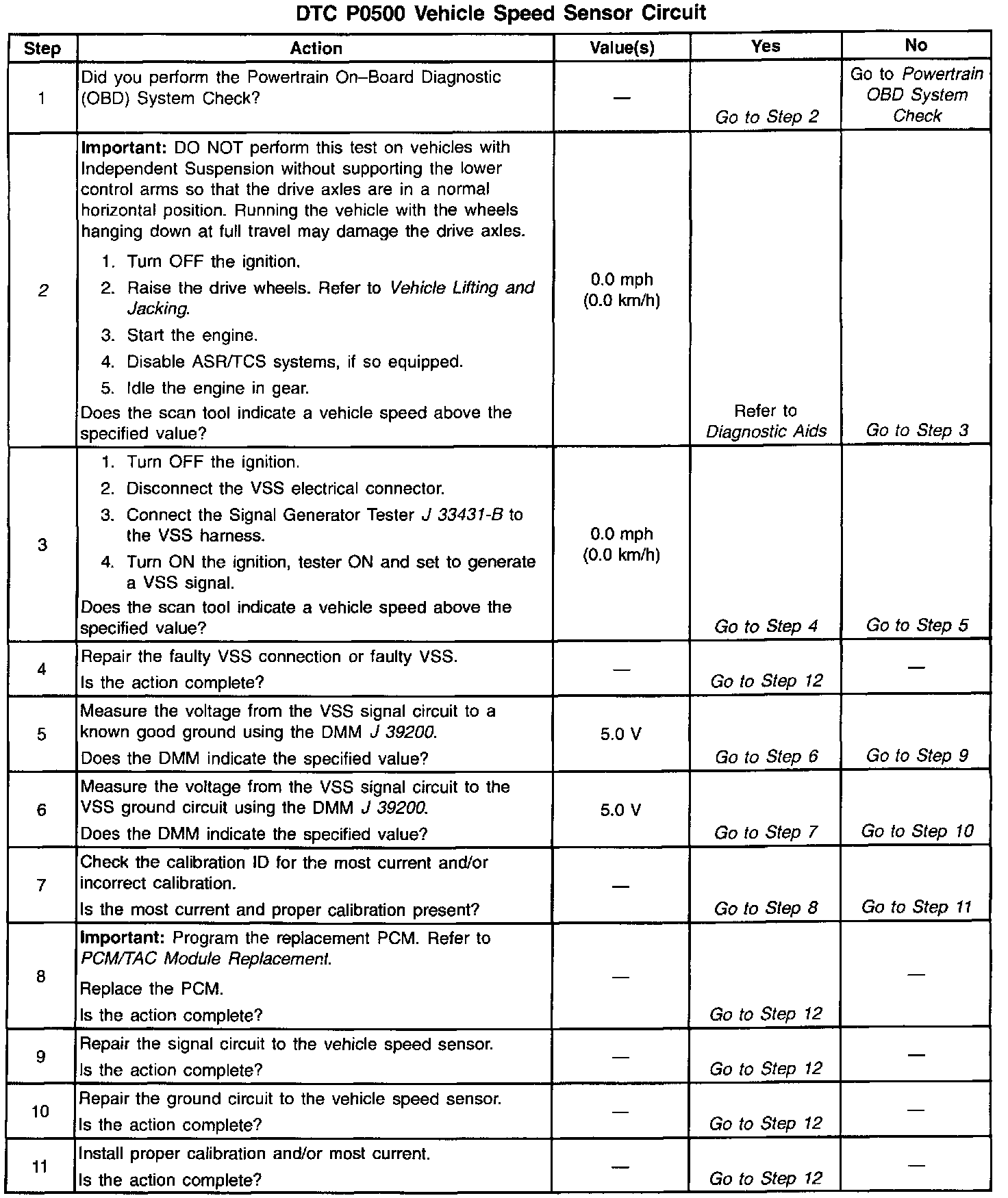

TEST DESCRIPTION

The numbers below refer to the step numbers on the diagnostic table.

2. The ASR/TCS must be disabled when performing this step. Whenever the ignition key is cycled to the OFF position and then cycled back ON, the ASR/TCS system will default ON.
