P0410

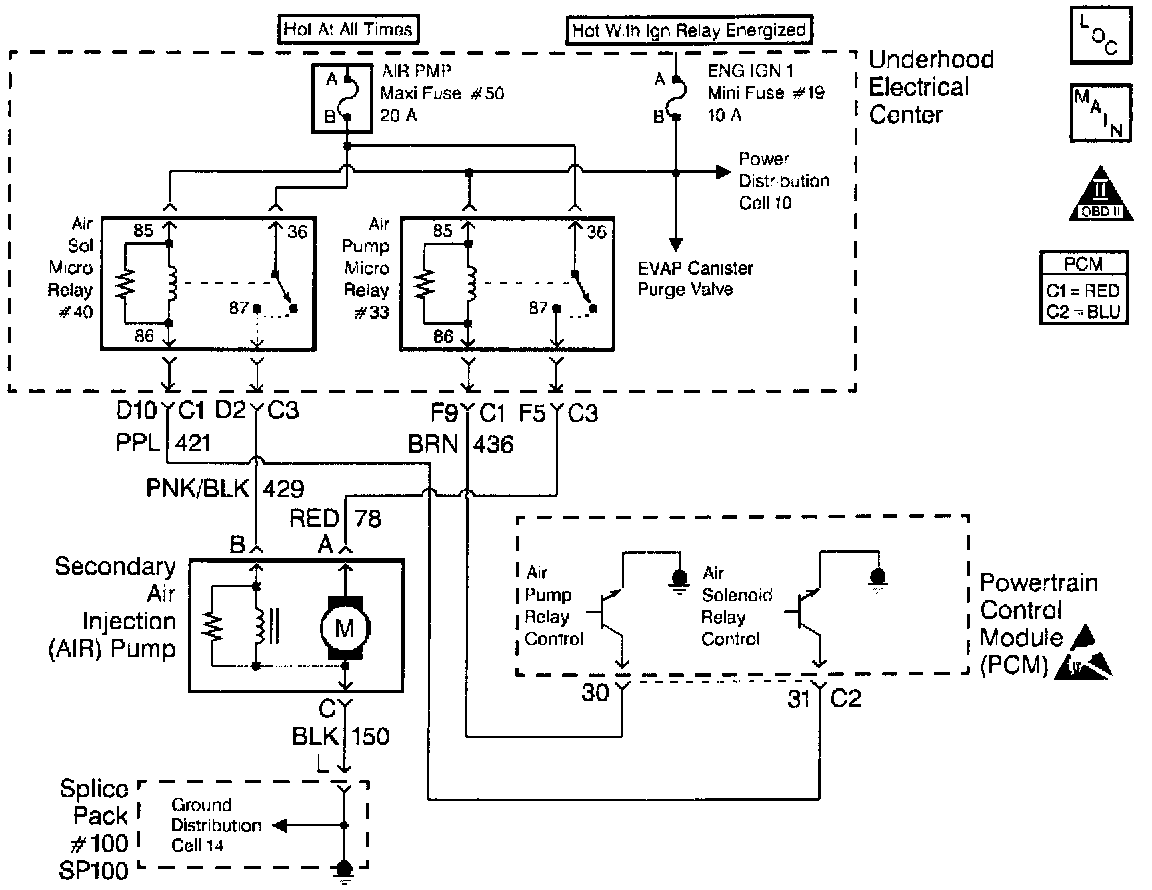

Electrical Diagram:
CIRCUIT DESCRIPTION
An AIR pump is used on this vehicle to lower tail pipe emissions on start-up. The PCM supplies a ground to the AIR pump relay, which energizes the AIR pump.
The PCM will run two tests using the HO2S voltages to diagnose the AIR system. Both tests have two parts.
Test one consists of the following:
Part 1
When the AIR pump is enabled, the PCM monitors the HO2S voltage. If the HO2S voltages go below a threshold, the PCM interprets this as an indication that the AIR system is operational.
Part 2
When the AIR pump is disabled, the PCM monitors the HO2S voltages. The HO2S voltages should increase above a threshold and switch normally.
If the PCM did not sense more than a predetermined amount of HO2S rich switches, a malfunction will be reported. If both of these test indicate a pass, no further action is taken. If one of the above tests failed or is inconclusive, the diagnostic will proceed to test two.
Test two consist of the following: Part 1 During this test the PCM will activate the AIR pump during closed loop operation. When the AIR is activated, the PCM will monitor the HO2S voltages and short term fuel trim values for both banks of the engine. If the AIR system is operating properly, the HO2S voltages should go low and the short term fuel trim should go high. Part 2 The PCM checks that the HO2S voltages return to above a rich threshold when the air pump is disabled.
If the PCM determines that the HO2S voltages for both banks did not respond as expected during the tests, DTC P0410 will set. If only one sensor responded, the PCM will set either a DTC P1415 or P1416 to indicate on which bank the AIR system is inoperative.
CONDITIONS FOR SETTING THE DTC
^ DTCs P0101, P0102 P0103, P0107, P0108, P0112, P0113 P0117, P0118, P0171, P0172, P0174, P0175, P0300, P0412, P0418 P0441, P0443, P1120, P1220, P1221, P1441 and HO2S DTCs not set.
^ The engine operates for greater than 2 seconds.
Test 1
^ TP angle is not moving more than 1%.
^ Engine load is less than 25%.
^ Engine air flow is less than 30 grams per second.
^ Ignition voltage is greater than 11.7 volts.
^ Air fuel ratio is greater than 13:1.
^ ECT is less than 109°C (228°F).
^ HO2S voltage does not go below 400 mV for 19 seconds
Test 2
^ The engine operates for greater than 200 seconds.
^ Engine speed is greater than 600 RPM.
^ Maximum air flow is 22 gm/s.
^ ECT is greater than 70°C (158°F).
^ IAT is greater than 10°C (50°C).
^ Ignition voltage is greater than 11.0 volts.
^ Engine load is less than 25%.
^ HO2S voltage does not go below 222 mV within 1.5 seconds.
^ Short term fuel trim does not go above a predetermined amount.
ACTION TAKEN WHEN THE DTC SETS
^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive drive trip that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive drive trip, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.
CONDITIONS FOR CLEARING THE MIL/DTC
^ The PCM turns the MIL OFF after three consecutive drive trips that the diagnostic runs and does not fail.
^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.
^ A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
^ The PCM battery voltage is interrupted.
^ Use a scan tool in order to clear the MIL/DTC.
DIAGNOSTIC AIDS

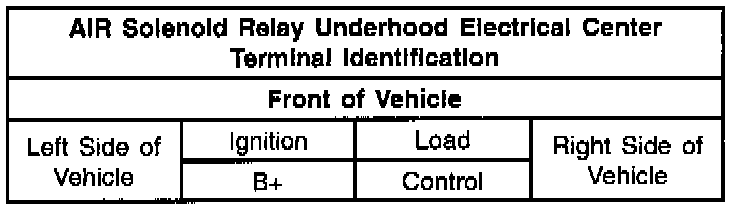

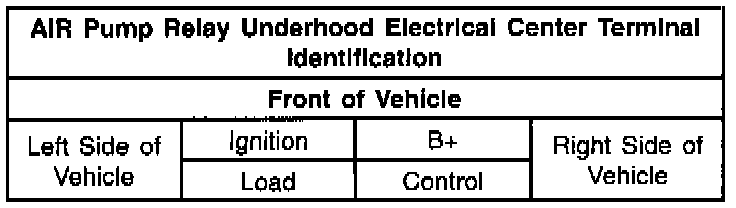

^ If you can not find a problem with the ignition feed circuit to the component, inspect the circuit between the IGN 1 mini relay and the fuse for an open. Probe both sides of the ENG IGN1 fuse in order to determine if the IGN 1 mini relay is suppling power to the fuse. Refer to Ignition Relay Diagnosis for further diagnosis of the IGN 1 mini relay. Also inspect the IGN 1 fuse for being open. Ignition Relay Diagnosis
^ Using Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can aid in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also aid determining how many ignition cycles the diagnostic reported a pass and/or a fail. Operate the vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed.
^ For an intermittent, refer to Symptoms. Testing and Inspection
TEST DESCRIPTION

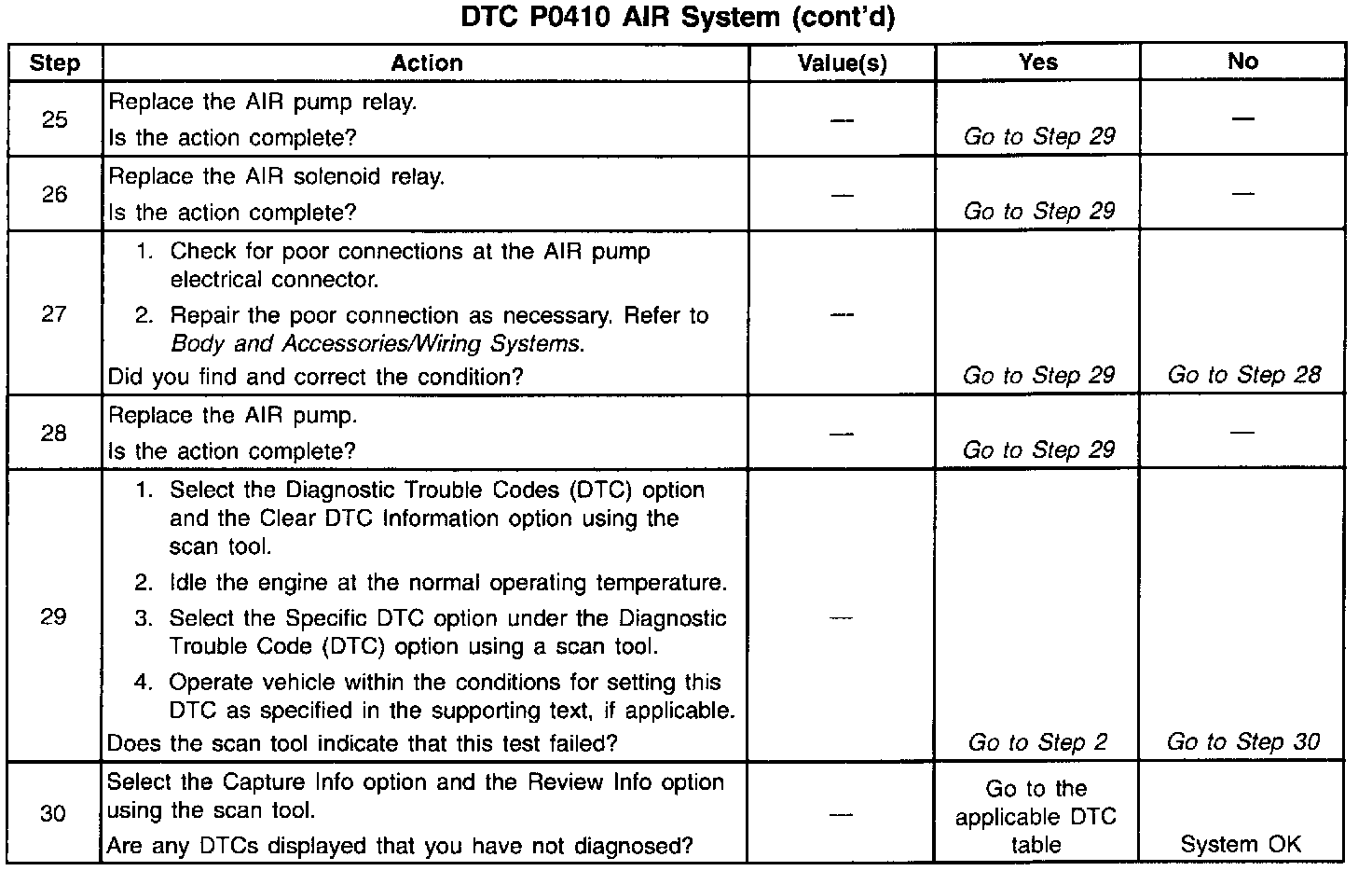

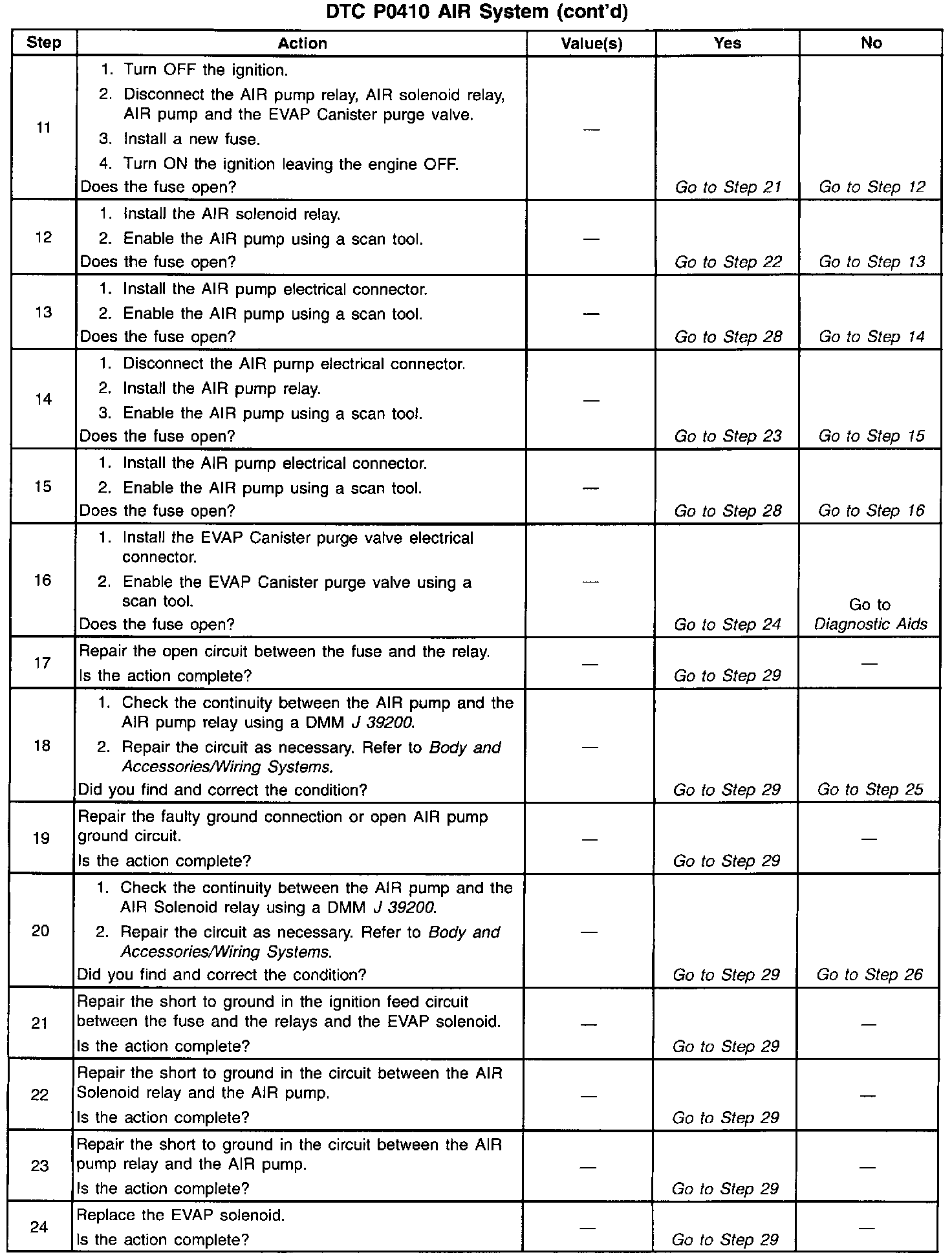

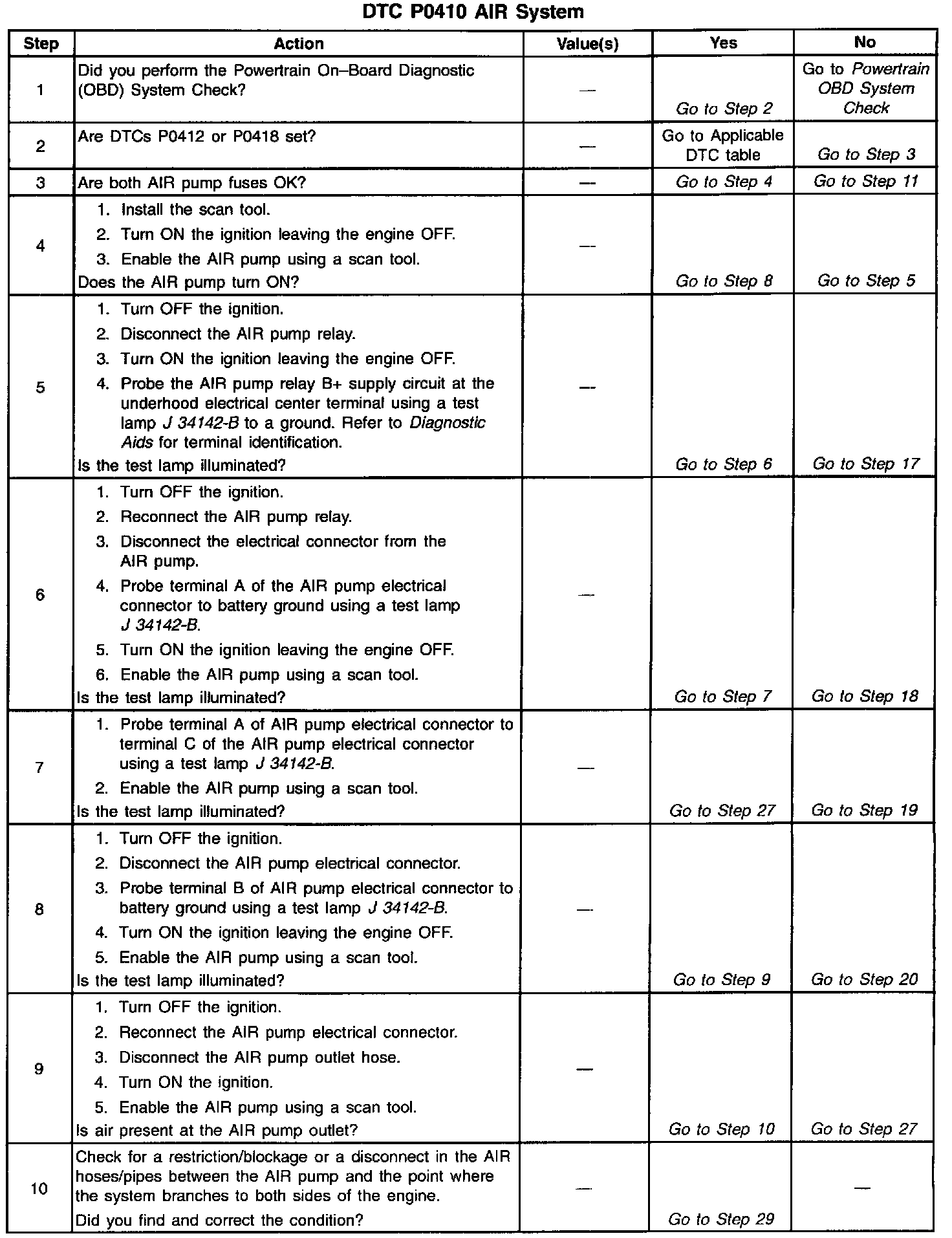

The numbers below refer to the step numbers on the diagnostic table.
4. For any test that requires probing the PCM or a component harness connector, use the Connector Test Adapter Kit J 35616-A. Using this kit prevents damage to the harness connector terminals.
