P0120
Electrical Diagram:
CIRCUIT DESCRIPTION
The Accelerator Pedal Position (APP) sensor is mounted on the accelerator pedal assembly. The sensor is actually three individual Accelerator Pedal Position sensors within one housing. Three separate signal, ground and 5.0 volt reference circuits connect the Accelerator Pedal Position Sensor assembly and the Throttle Actuator Control (TAC) Module. Each sensor has a unique functionality. The APP sensor 1 signal increases as the accelerator pedal is depressed, from below 1.1 volt at 0% pedal travel (pedal at rest) to above 2.1 volts at 100% pedal travel (pedal fully depressed). The APP sensor 2 signal decreases from above 3.9 volts at 0% pedal travel to below 2.9 volts at 100% pedal travel. The APP sensor 3 signal decreases from above 3.2 volts at 0% pedal travel to below 3.1 volts at 100% pedal travel. Observe that the signal circuits for APP Sensor 2 and APP Sensor 3 pull up to 5.0 volts and the APP Sensor 1 signal circuit pull to ground within the TAC Module.
CONDITIONS FOR SETTING THE DTC
^ DTCs P0606, P1517, P1518 not set
^ Ignition switch in the crank or run position
^ Ignition voltage greater than 5.23 volts
^ APP sensor #1 voltage is less than 0.25 volts or greater than 4.22 volts
^ All the above conditions met for less than 1 second.
ACTION TAKEN WHEN THE DTC SETS
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.
^ If no other TAC System DTCs are set, the TAC System operates normally. If certain TAC System DTCs are set at the same time, the TAC System either defaults to a Reduced Engine Power mode or to a more tightly restricted mode of operation if the TAC determines that limited safe operation is possible, or the TAC commands the engine to shut down.
CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ A last test failed (Current DTC) will clear when the diagnostic runs and does not fail.
^ The PCM battery voltage is interrupted.
^ Use a scan tool in order to clear the MIL/DTC.
DIAGNOSTIC AIDS
^ The following may cause an intermittent:
- Poor connections. Check for adequate terminal tension. Refer to Body and Accessories/Diagrams for proper procedure.
- Corrosion
- Mis-routed harness
- Rubbed through wire insulation
- Broken wire inside the insulation
- Inspect the TAC module connectors for signs of water intrusion. When this occurs, multiple DTCs should set and you cannot locate any circuit or component problems.
^ The APP ana TP sensor 5.0 volt reference circuits are internally connected within the TAC. Inspect the 5.0 volt reference circuits at the APP and the TP sensors for an open, a ground, or a short to a voltage. TP and APP sensor DTCs will set.
^ For an intermittent condition, refer to Symptoms. Testing and Inspection
^ If you complete a repair and the DTC is cleared using a scan tool on the same ignition cycle, the default action will not clear until an ignition cycle has occurred.
^ When the TAC module detects throttle movement with a DTC P0120 set, a DTC P0121 will also set.
^ When the TAC module detects a problem within the TAC System, more than one TAC System related DTC may set. This is due to the many redundant tests run continuously on this system. Locating and repairing one individual problem may correct more than one DTC. Keep this in mind when reviewing captured DTC info.
TEST DESCRIPTION

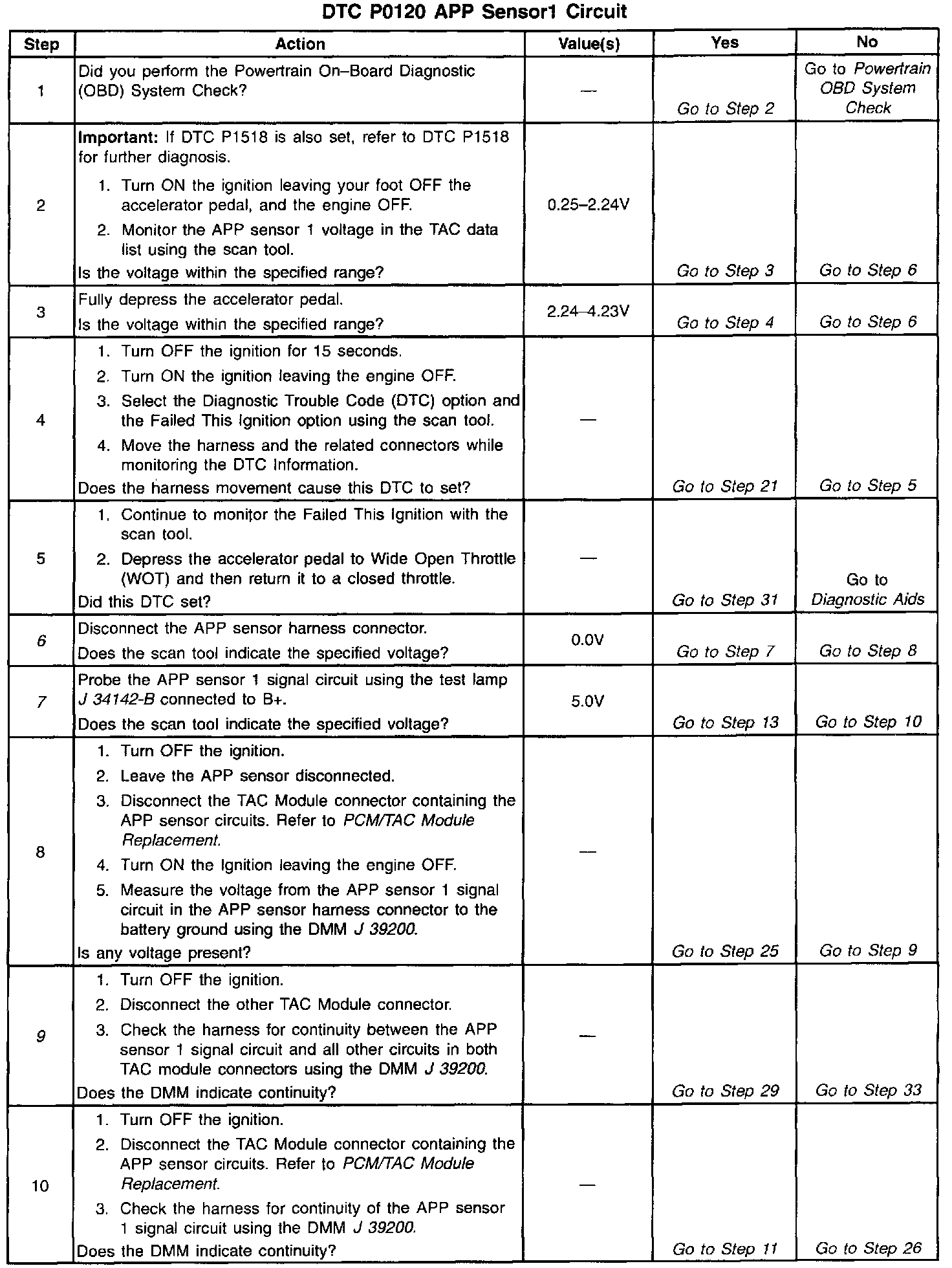

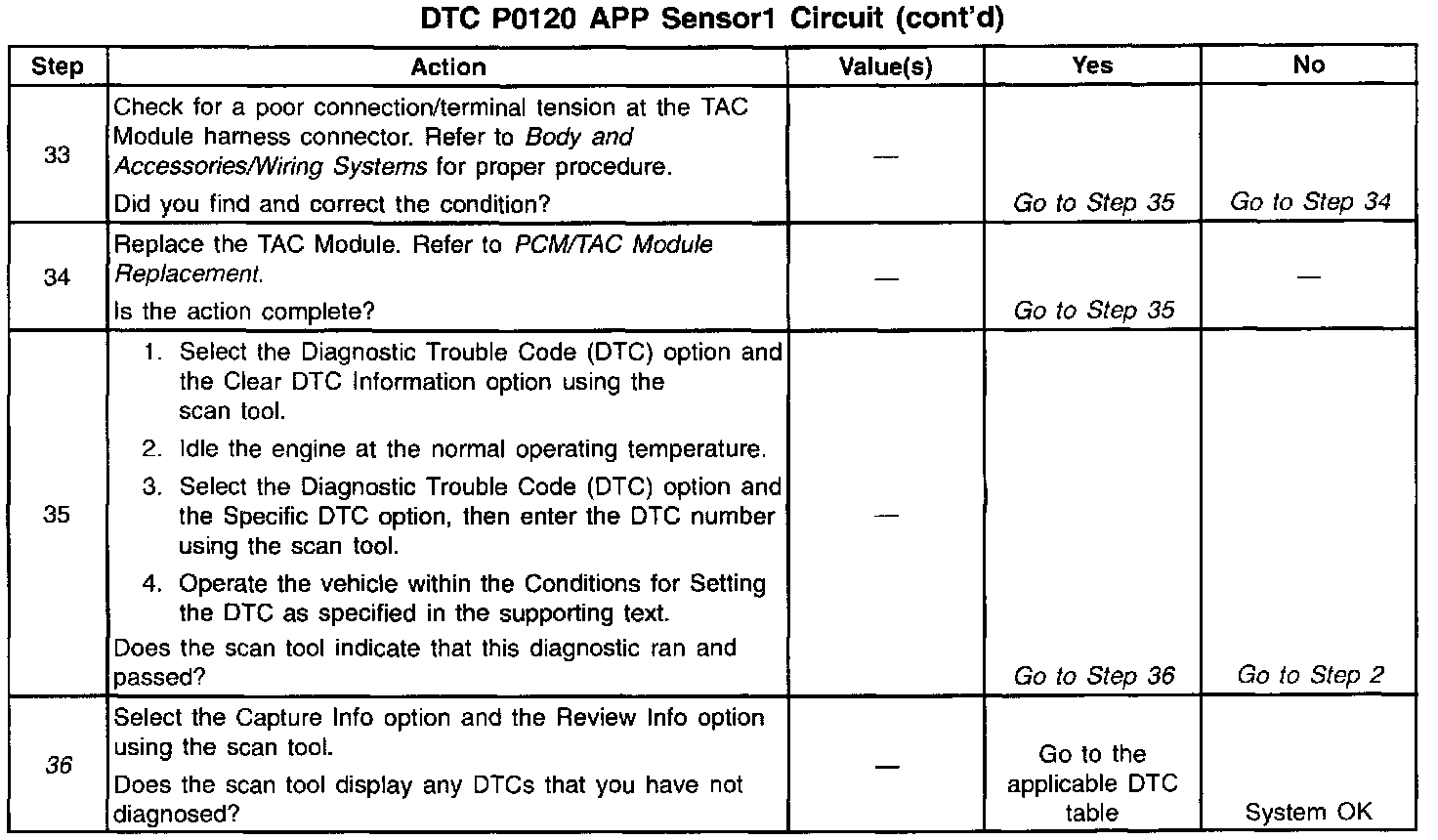

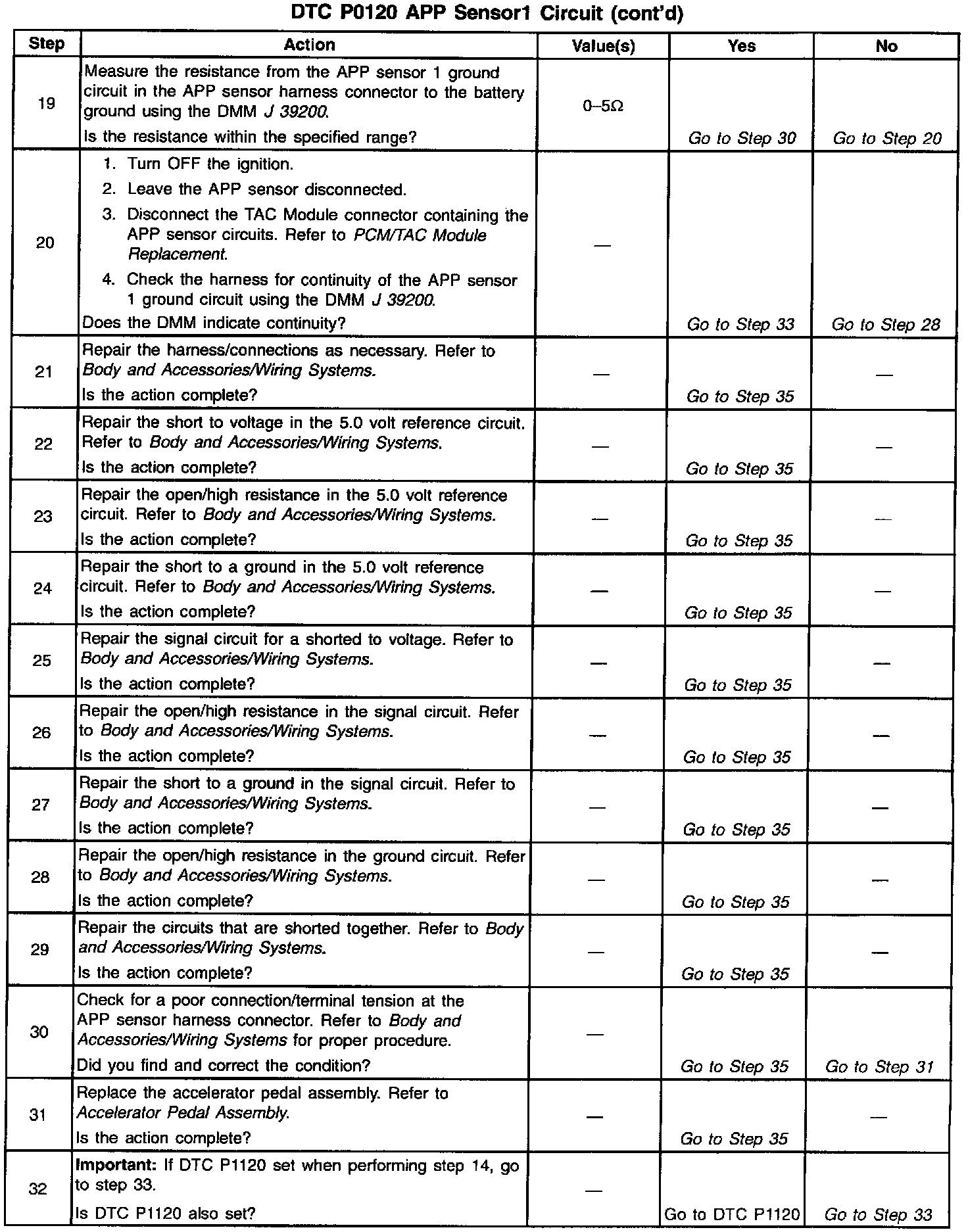

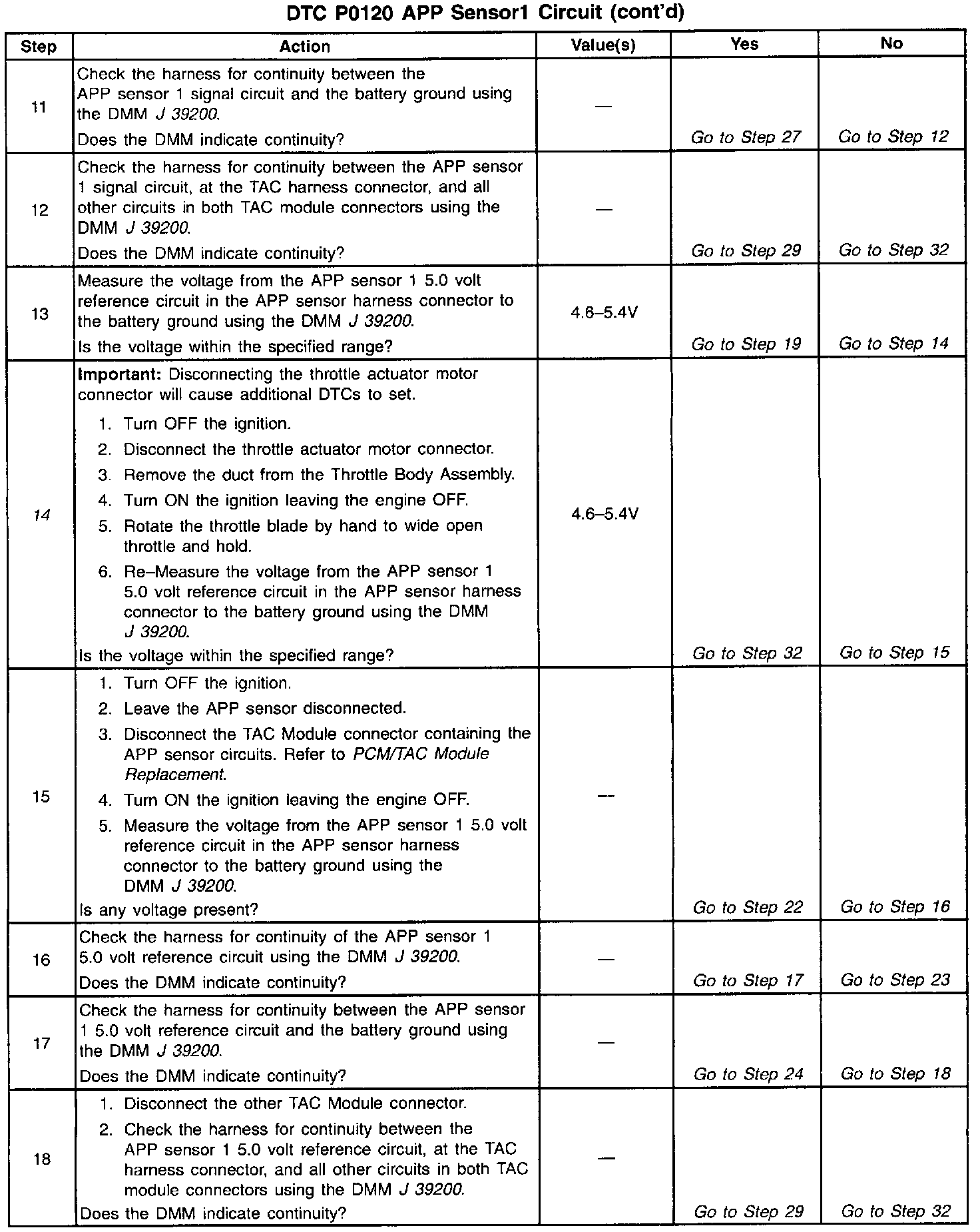

The numbers below refer to the step numbers on the Diagnostic Table.
6. The sensor voltage should drop to zero when you disconnect the sensor.
7. Using a test lamp reduces the amount of current fed into the signal circuit. The scan tool should display the maximum value for this parameter (5.0V) even though the actual voltage is higher.
9. The previous step found no voltage present on the signal circuit with the APP sensor harness disconnected at both ends. This rules out a short to voltage from outside the TAC System. This test isolates whether the short is to another TAC System circuit in the harness or within the TAC Module.
14. After you complete the repairs/diagnosis, re-install the air intake duct.
There are three separate 5.0 volt reference sources within the TAC Module. The TP sensor 1 and the APP sensor 1 share one 5.0 volt reference source. The TP sensor 2 and the APP sensor 2 share another common 5.0 volt reference source and the APP sensor 3 uses the third circuit alone. This test determines whether the signal circuit is shorted to any one of the 5.0 volt reference circuits. If a short exists, the corresponding TP sensor voltage will be pulled low.
36. When the TAC detects a problem within the TAC System, more than one TAC System related DTC may set. This is due to the many redundant tests run continuously on this system. Locating and repairing one individual problem may correct more than one DTC. Keep this in mind when reviewing captured DTC info.
