C1743

Circuit Description

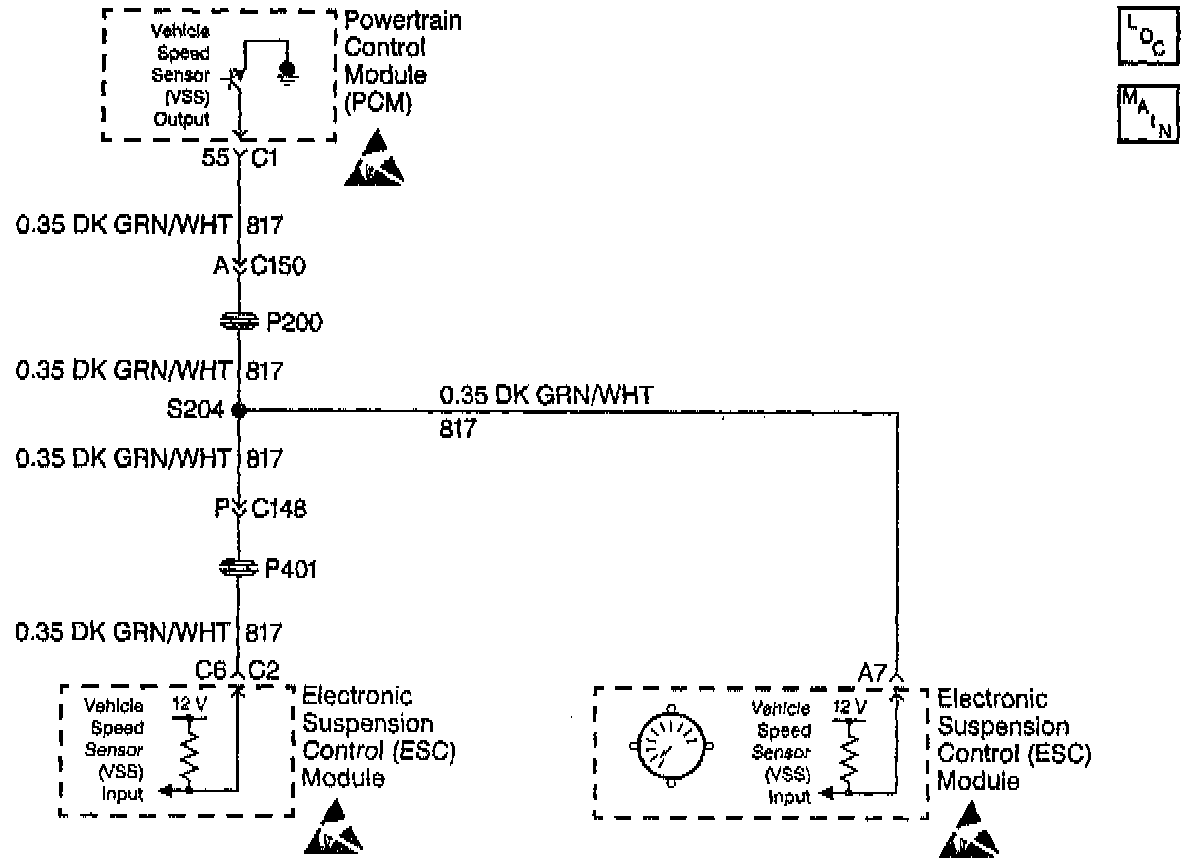

The ESC module receives the vehicle speed signal from the PCM on CKT 817 and from the serial data line on CKT 116. Once the vehicle speed has been detected, the ESC module compares the vehicle speed signal information received from the VSS with the VSS data received on the serial data line.

Conditions for Setting the DTC
- The ESC module receives VSS data from the PCM on the serial data line that is greater than 32 km/h (20 mph).
- The ESC module receives VSS data from the PCM on CKT 817 that is less than 5 km/h (3 mph).
- All conditions must be detected for 10 seconds.

Action Taken When the DTC Sets
- Stores a DTC C1743 in the ESC memory.
- Will use only the vehicle speed data obtained on the serial data line.

Conditions for Clearing the DTC
- The ESC module receives VSS data from the PCM greater than 5 km/h (3 mph).
- A history DTC will clear after 100 consecutive ignition cycles if the condition for the malfunction is no longer present.
- The On-Board Diagnostic (Clearing DTCs) features
- Using a scan tool.

Diagnostic Aids
The following conditions may cause an intermittent malfunction to occur:
- An intermittent open or short (to ground or to voltage) on CKT 817.
- An intermittent loss of VSS input to the PCM.
- If the ESC module loses one of the two VSS inputs, the system will still function properly using the VSS data obtained from the input still functioning. The scan tool will display VSS data from the input still functioning.
- Using a scan tool, check the PCM for VSS DTCs. If the PCM has any VSS DTCs stored in memory, refer to Engine Controls first before attempting any further diagnostic procedures on the Real Time Dampening (RTD) system.


Test Description

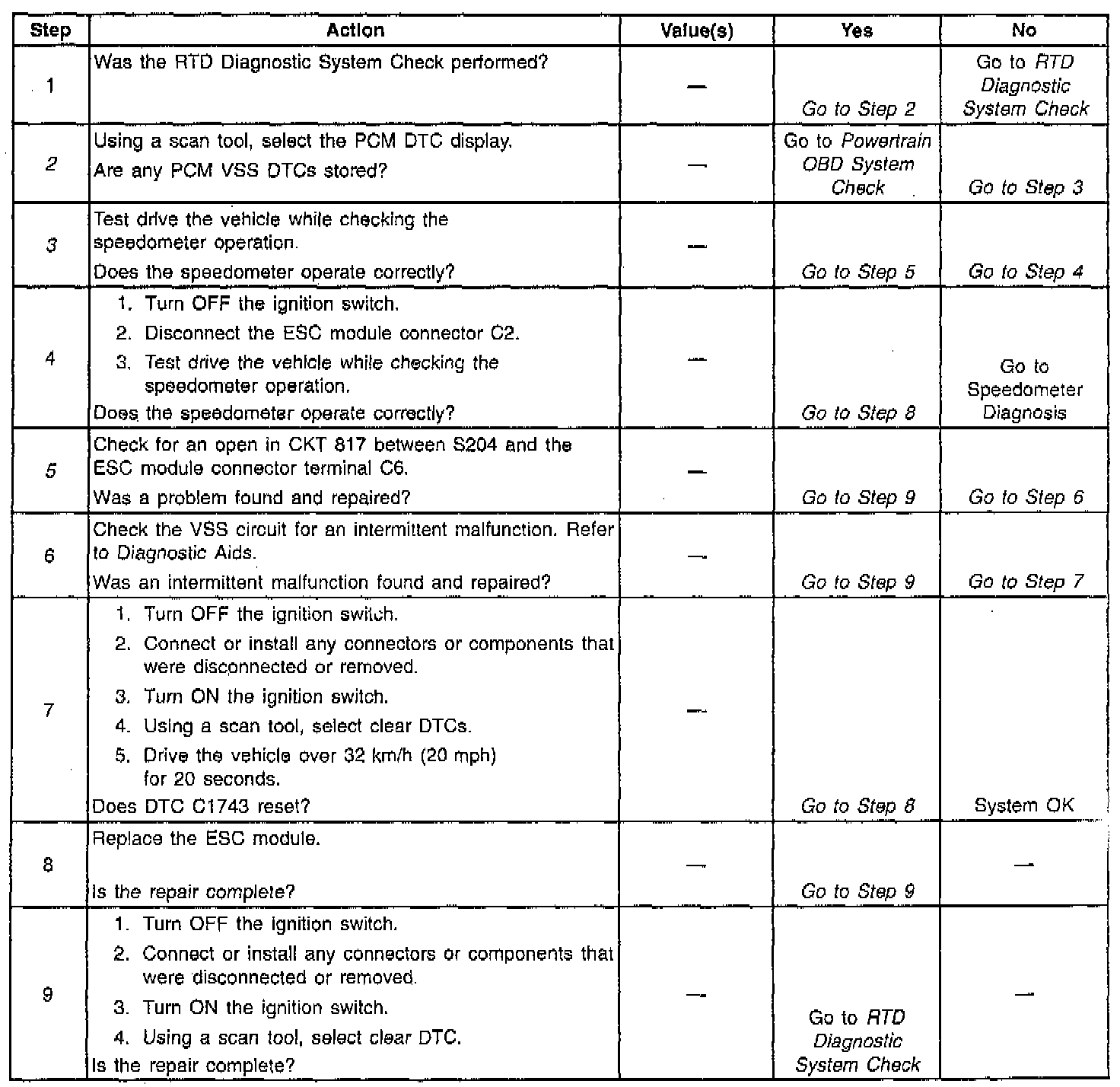

The numbers below refer to the step numbers on the diagnostic table:
2. This step checks if the speedometer is receiving a VSS signal from the PCM.
3. This step checks if the ESC module is the cause of the VSS circuit malfunction.
5. This step checks for an intermittent malfunction and requests a thorough inspection of the related VSS circuit wiring and connectors.
