C1255

DTC C1255 EBTCM:

CIRCUIT DESCRIPTION
This DTC identifies a malfunction within the EBTCM.

CONDITIONS FOR SETTING THE DTC
DTC C1255xx is set when an internal EBTCM malfunction exists.

ACTION TAKEN WHEN THE DTC SETS
A malfunction DTC is stored, ABS/TCS is disabled and the ABS and Traction Control Indicators are turned ON.

CONDITIONS FOR CLEARING THE DTC
- Condition for DTC is no longer present and scan tool clear DTC function is used.
- Fifty ignition cycles have passed with no DTC(s) detected.

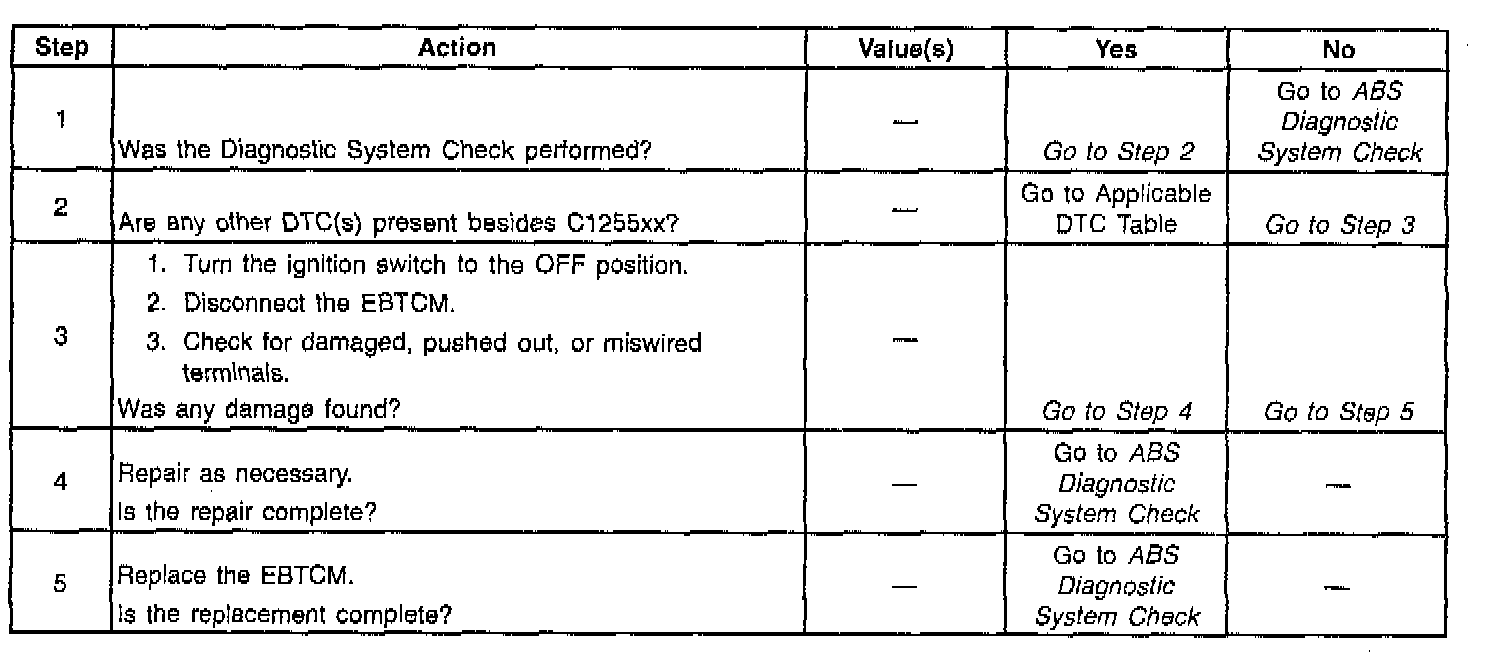

DTC C1255: EBTCM Internal Malf (ABS/TCS Disabled):

DIAGNOSTIC AIDS
- When DTC C1255xx is displayed on the Scan Tool, it will be followed by two more numbers which should be noted along with any other DTCs that may be displayed. The additional two numbers displayed with DTC C1255xx are for aiding engineering to determine the cause of the internal malfunction.

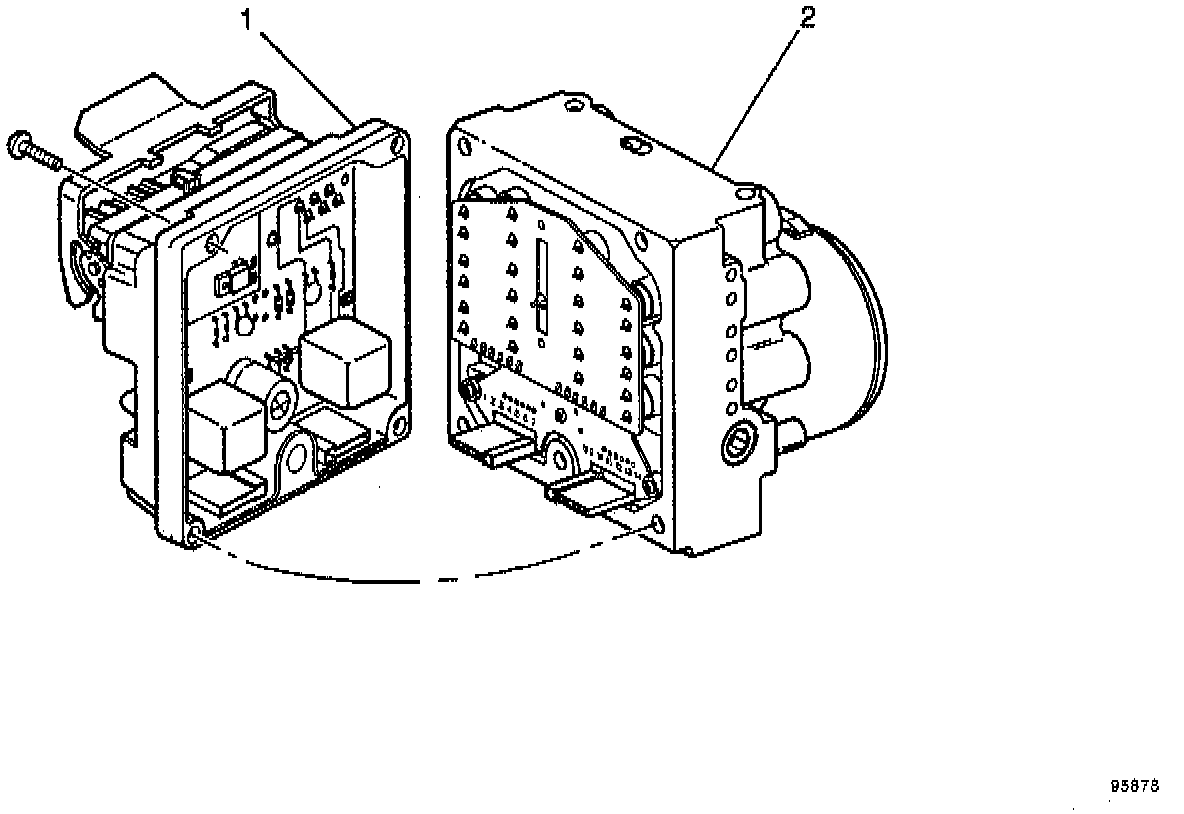

- Make sure the integrity of the connection between the EBTCM and the BPMV is secure, tight, and free from corrosion.
