Windshield Washer Reservoir: Service and Repair

Remove or Disconnect
1. Washer fluid.

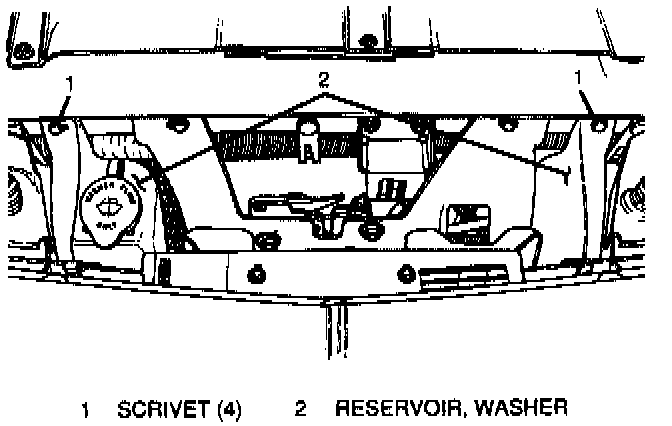

2. Two scrivets (1) from top of washer reservoir (2).
3. Drive vehicle onto rack.
4. Negative battery cable.
5. Raise vehicle on rack.
6. Splash guard and mounting screws.
7. Two scrivets (1) from bottom of washer reservoir.
8. Washer reservoir and pump (4, Figure 7).
9. Electrical connector (3) and washer hose assembly (5).
10. Washer pump from reservoir.

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Washer pump (4) in washer reservoir (2).
IMPORTANT
- Make sure washer pump is pushed all the way into washer reservoir seal.
2. Washer hose assembly (5) and electrical connector (3).
3. Washer reservoir with 2 scrivets (1) at bottom of reservoir.
4. Splash guard with mounting screws.
5. Lower vehicle on rack.
6. Negative battery cable, then drive vehicle off rack.
7. Two scrivets (1) at top of washer reservoir.
8. Washer fluid.
