G. 5TH/6TH Driven Gear

^ Tools Required
- J 8433 Universal Bridge Puller
- J 39431 Gear Remover
- J 39431-2 Gear Remover Bolts

REMOVE OR DISCONNECT

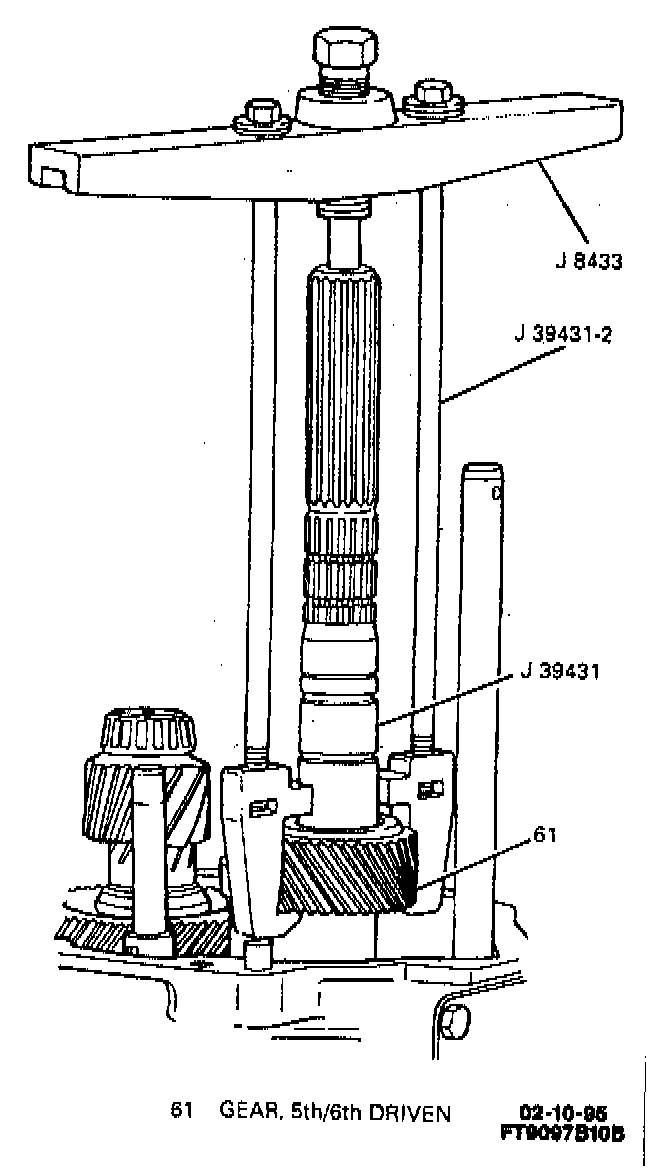

1. 5th/6th driven gear (61) using J 8433, J 39431 and J 39431-2.
A. Set J 8433 onto nose of mainshaft (23).
B. Slide J 39431 under 5th/6th driven-gear.
C. Install bolts J 39431-2 to J 39431.
D. 5th/6th driven gear (61) using J 8433, J 39431 and J 39431-2.
