Pressure Regulating Solenoid: Service and Repair

REMOVE OR DISCONNECT
1. Transmission oil pan. Refer to "CHANGING TRANSMISSION FLUID AND FILTER."

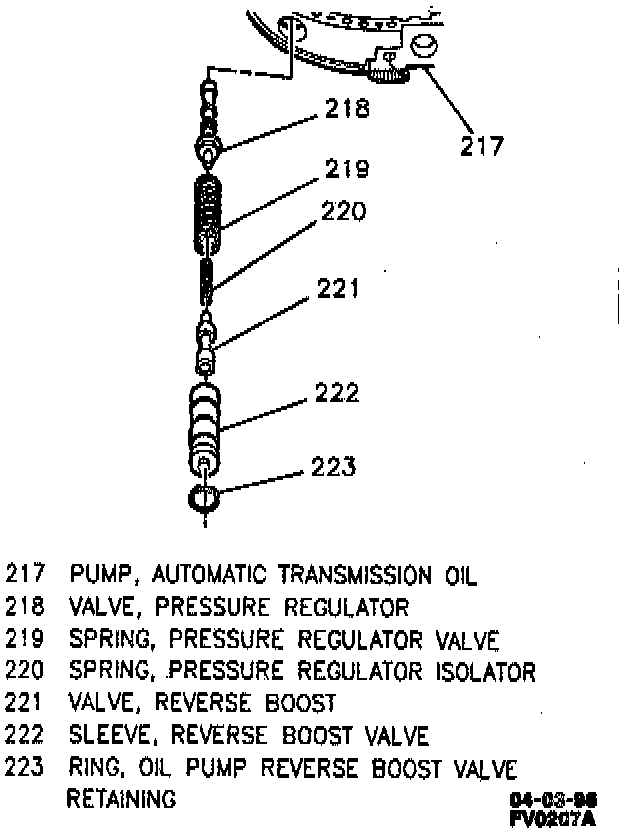

2. Compress reverse boost valve sleeve and related components (222 through 219) with a small screwdriver.
3. Slowly release spring pressure.
4. Reverse boost valve retaining ring (223).
5. Reverse boost valve sleeve (222) and reverse boost valve (221).
6. Pressure regulator isolator spring (220) and pressure regulator valve spring (219).
7. Pressure regulator valve (218).

Inspect
- Pressure regulator valve.

INSTALL OR CONNECT
1. Pressure regulator valve (218).
2. Pressure regulator valve spring (219) and pressure regulator isolator spring (220).
3. Reverse boost valve (221) and reverse boost valve sleeve (222).
4. Compress reverse boost valve sleeve and related components (222 through 219) with a small screwdriver.
5. Reverse boost valve retaining ring (223).
6. Transmission oil pan.
