Front Bushing

^ Tools Required:
- J 214743 Lower Control Ann Bushing Screw
- J 21474-4 Lower Control Ann Bushing Nut
- J 21474-5 Control Arm Bushing Receiver
- J 214746 Control Arm Bushing Receiver
- J 39875 Half Moon Spacer
- J 39876 Lower Control Arm Bushing Receiver
- Or Equivalents

DISASSEMBLE
1. Lower control arm. Refer to "Front Lower Control Arm".

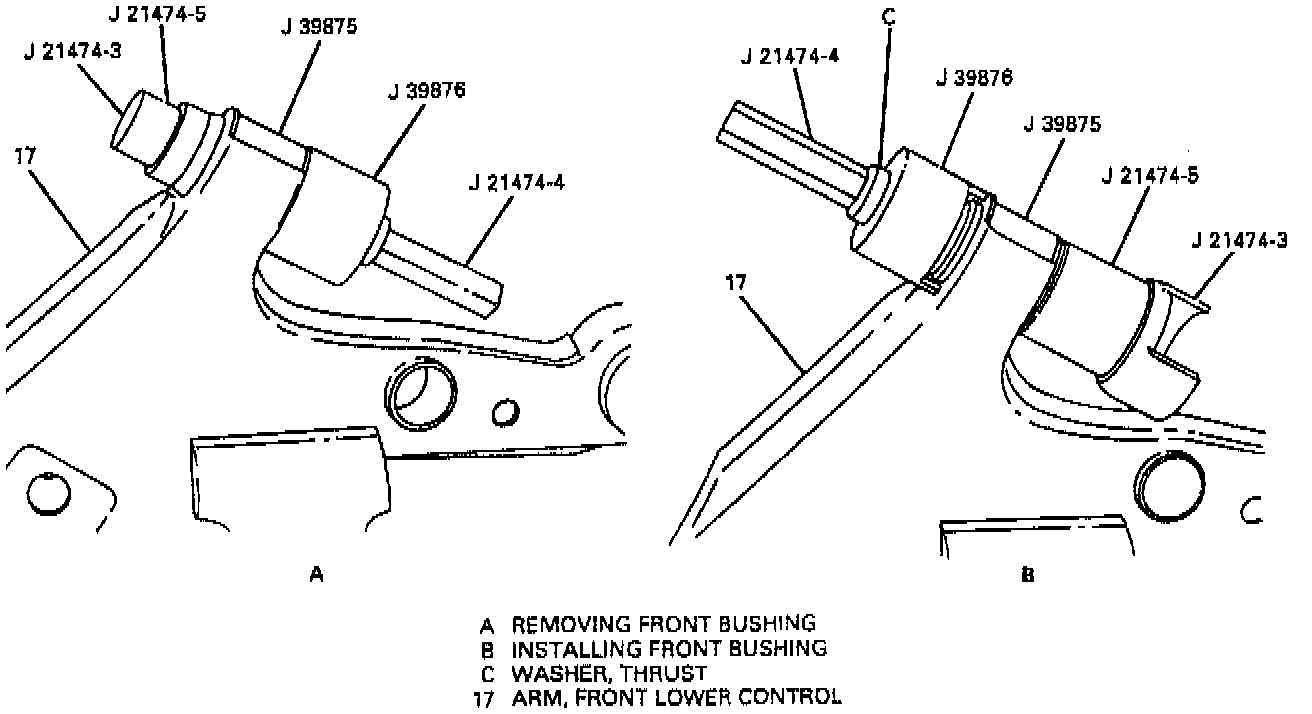

2. Remove lower control arm front bushing from lower control arm (17).
A. Place J 21474-3 through large end of J 21474-6.
B. Thread J 214743 through front bushing and push it through open end of J 39876.
C. Place thrust washer onto J 21474-3 with seam facing toward front bushing.
D. Install J 39875 around outside of bushing to avoid metal distortion during removal.
E. After making sure all tools are properly lined up with front bushing and control arm, install J 21474-4 and tighten until bushing is pushed all the way out (popping noise may be heard while removing).

ASSEMBLE

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Lower control arm front bushing.
A. Thread J 21474-3 through J 21474-5.
B. Install J 2147~3 through new front bushing and into lower control arm.
C. Thread J 21474-3 and accessories into lower control arm-front.
D. Install J 39876 onto J 21474-3 with open end of J 39876 facing toward control arm.
E. Install J 39875 around outside bushing to avoid metal distortion during installation.
F. Place thrust washer onto threaded end of J 21474-3 with seam facing toward control arm.
G. After making sure all tools are properly lined up with control arm and bushing, install J 21474-4 onto J 21474-3. Tighten J 21474-4 and J 2147-3 until bushing becomes flush with control arm.
2. Lower control arm. Refer to "Front Lower Control Arm".
