Fuel Pump Relay: Service and Repair

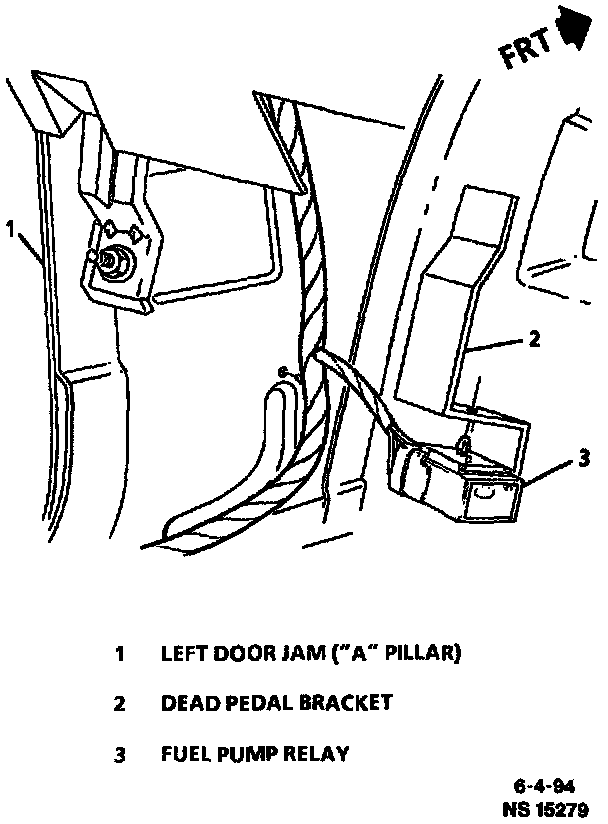

Fuel Pump Relay:

REMOVE AND DISCONNECT
1. Left body hinge pillar trim panel.
2. Pull carpet back.
3. Electrical connector.
4. Fuel Pump relay.

INSTALL OR CONNECT
1. Fuel pump relay.
2. Electrical connector.
3. Carpet.
4. Left body hinge pillar trim panel.
