Right Side

REMOVAL
1. Raise and suitably support vehicle.
2. Heated oxygen sensor electrical connector and disconnect rosebud clip from catalytic converter hanger bracket.





3. Heated oxygen sensor from right side catalytic converter (2).
4. Bolts/screws (8) attaching to left side catalytic converter (2).
5. Nuts (11) attaching left side catalytic converter (2) to exhaust manifold.

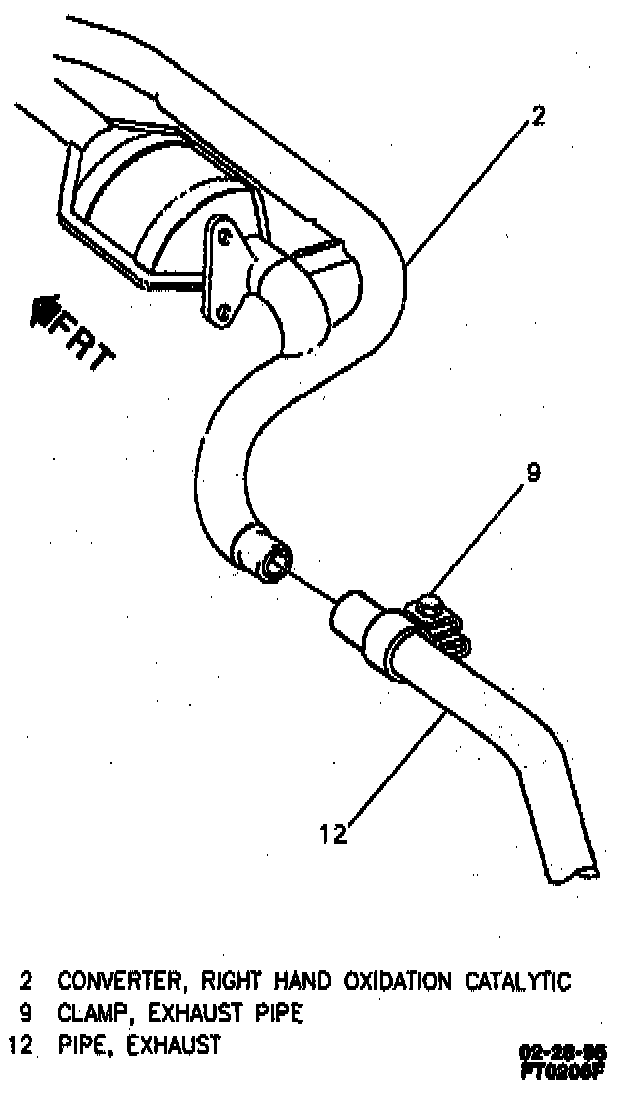

6. Loosen clamp (9) attaching left side catalytic converter (2) to exhaust pipe (12) and reposition.





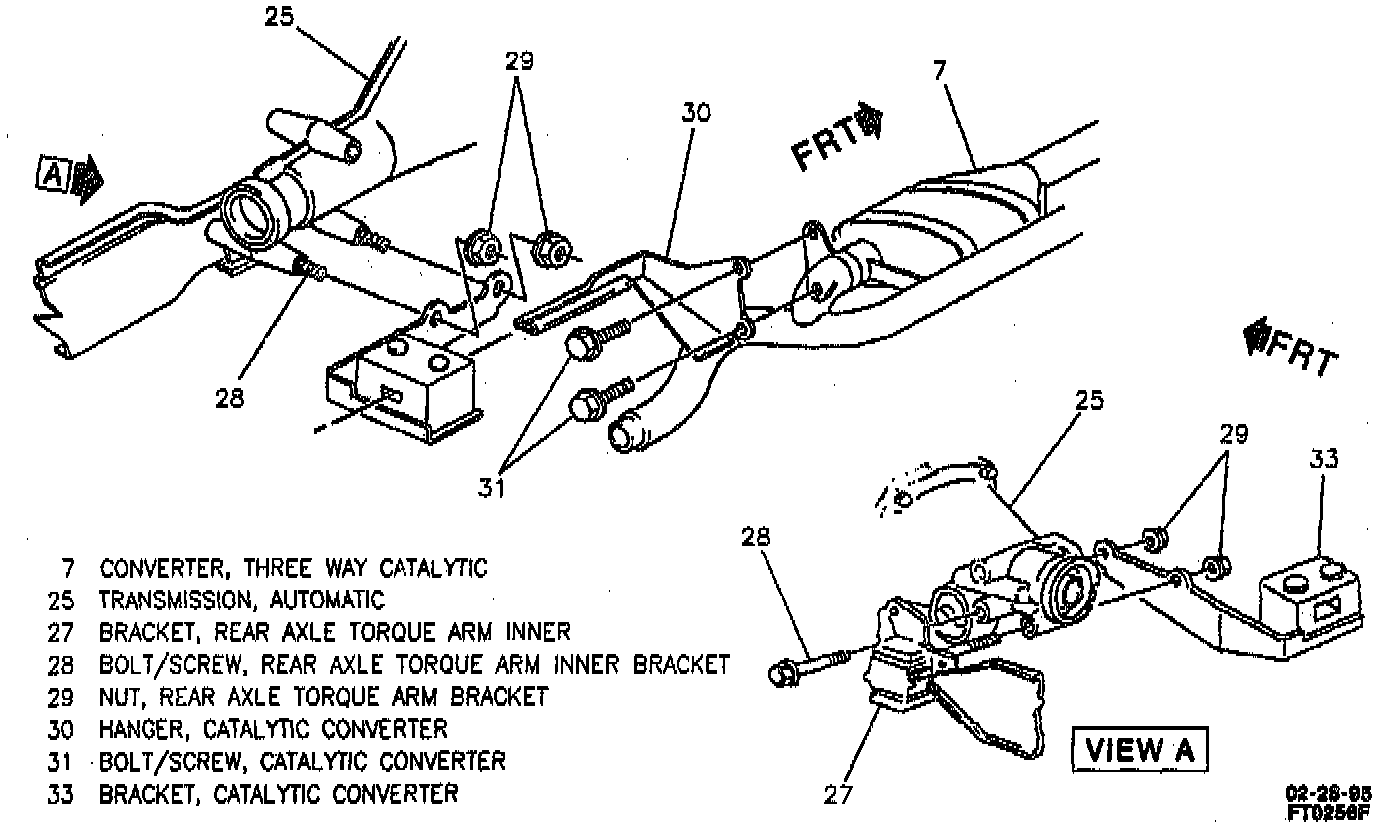

7. Bolts/screws (31) attaching catalytic converter hanger (30) to left side catalytic converter (2).
8. Right side catalytic converter by sliding converter out of exhaust pipe.

INSTALLATION
1. Right side catalytic converter by sliding converter into exhaust pipe.
2. Bolts/screws (31) attaching left side catalytic converter (2) to catalytic converter hanger (30). Tighten catalytic converter bolts/screws (31) to 41 Nm (30 ft. lbs.).
3. Exhaust crossover pipe nuts (5) attaching left side catalytic converter (2) to exhaust pipe. Tighten exhaust crossover pipe nuts (5) to 35 Nm (26 ft. lbs.).
4. Position clamp (9) and tighten. Tighten clamp (9) bolt/screw to 68 Nm (50 ft. lbs.).
5. Bolts/screws (8) attaching right side catalytic converter (2) to left side catalytic converter (1). Tighten catalytic converter bolts/screws (8) to 25 Nm (18 ft. lbs.).
6. Heated oxygen sensor to right side catalytic converter. Tighten heated oxygen sensor to 42 Nm (31 ft. lbs.).
7. Electrical connector and attach rosebud clip to catalytic converter hanger bracket.
8. Lower vehicle.
