Air Injection Vacuum Bleed Valve: Service and Repair

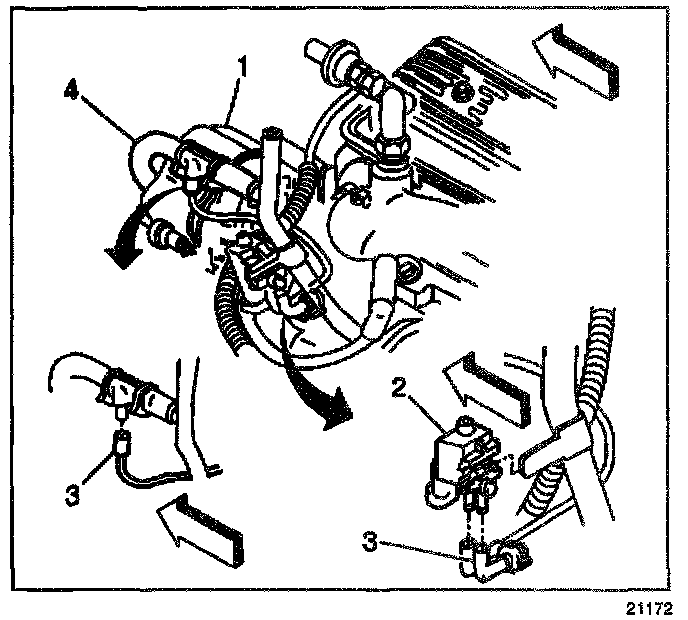

REMOVAL PROCEDURE

1. Disconnect the electrical connector from the solenoid (2).
2. Disconnect the vacuum harness (3) from the solenoid (2).
3. Remove the Solenoid (2).

INSTALLATION PROCEDURE

1. Install the solenoid (2).
2. Connect the vacuum harness (3) to the solenoid (2).
3. Connect the electrical connector to the solenoid (2).
