Turn Signal Flasher: Service and Repair

Remove or Disconnect

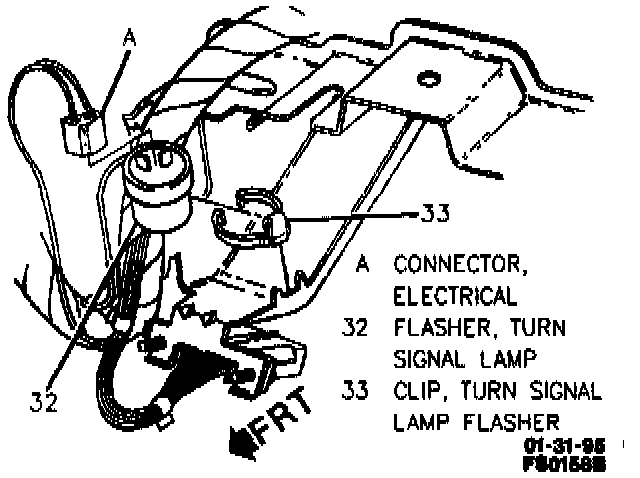

1. Clip (33) and flasher from instrument panel tie bar.
2. Electrical connector from flasher.
3. Flasher (32) from clip (33), if necessary.

Install or Connect
1. Flasher (32) to clip (33), if removed.
2. Electrical connector to flasher.
3. Clip (33) and flasher to instrument panel tie bar.
