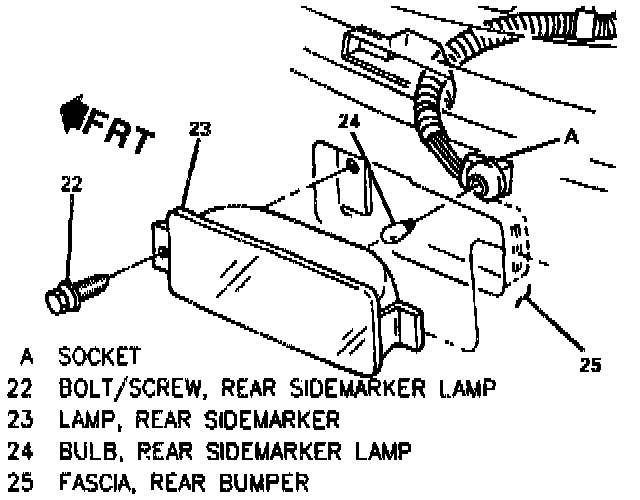

Marker Lamp: Service and Repair

Remove or Disconnect
1. Rear sidemarker lamp bolts/screws (22) from rear sidemarker lamp (23).
2. Rear sidemarker lamp (23) from rear bumper fascia (25).
3. Rear sidemarker lamp bulb (24) and socket from rear sidemarker lamp (23).
4. Rear sidemarker lamp bulb (24) from socket.

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Rear sidemarker lamp bulb (24) to socket.
2. Rear sidemarker lamp bulb (24) and socket to rear sidemarker lamp (23).
3. Rear sidemarker lamp (23) to rear bumper fascia (25).
4. Rear sidemarker lamp bolts/screws (22) to rear sidemarker lamp (23).
Tighten
^ bolts/screws (22) to 1.4 Nm (12 lb in).
