Crankshaft: Testing and Inspection

1. Clean the crankshaft in solvent.
2. Dry the crankshaft with compressed air.

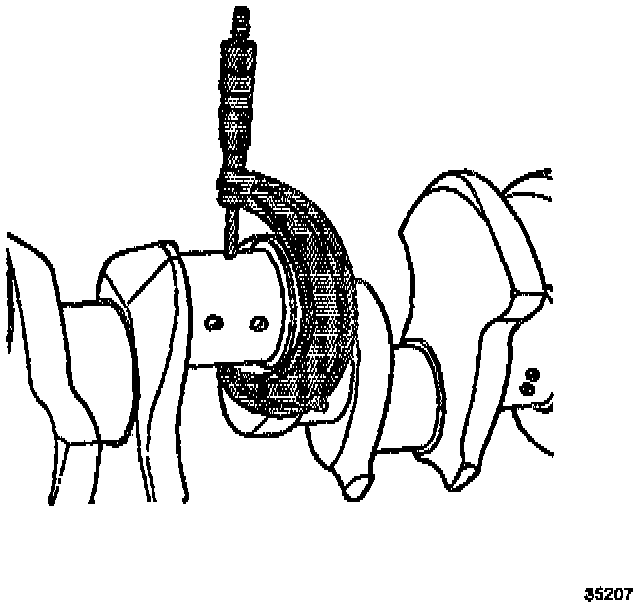

3. Measure the crankpins for out-of-round, taper, or undersize with a micrometer.

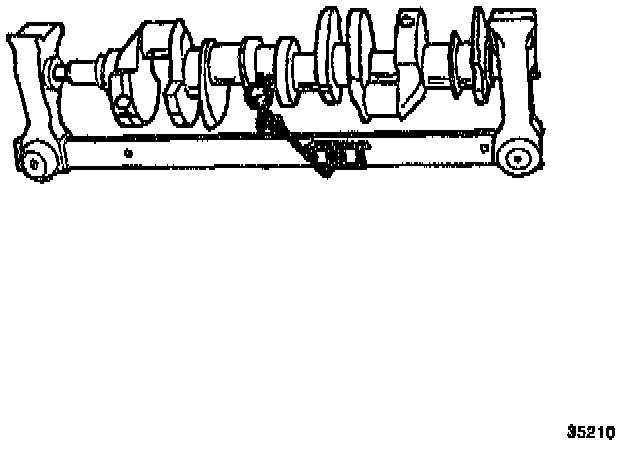

4. Support the crankshaft front and rear journals on V-blocks.





5. Measure the crankshaft run-out at the front and rear intermediate journals with a dial indicator.
6. Replace or recondition the crankshaft if measurements are not within specifications.
