Camaro V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
EGR Control Solenoid
EGR Control Solenoid

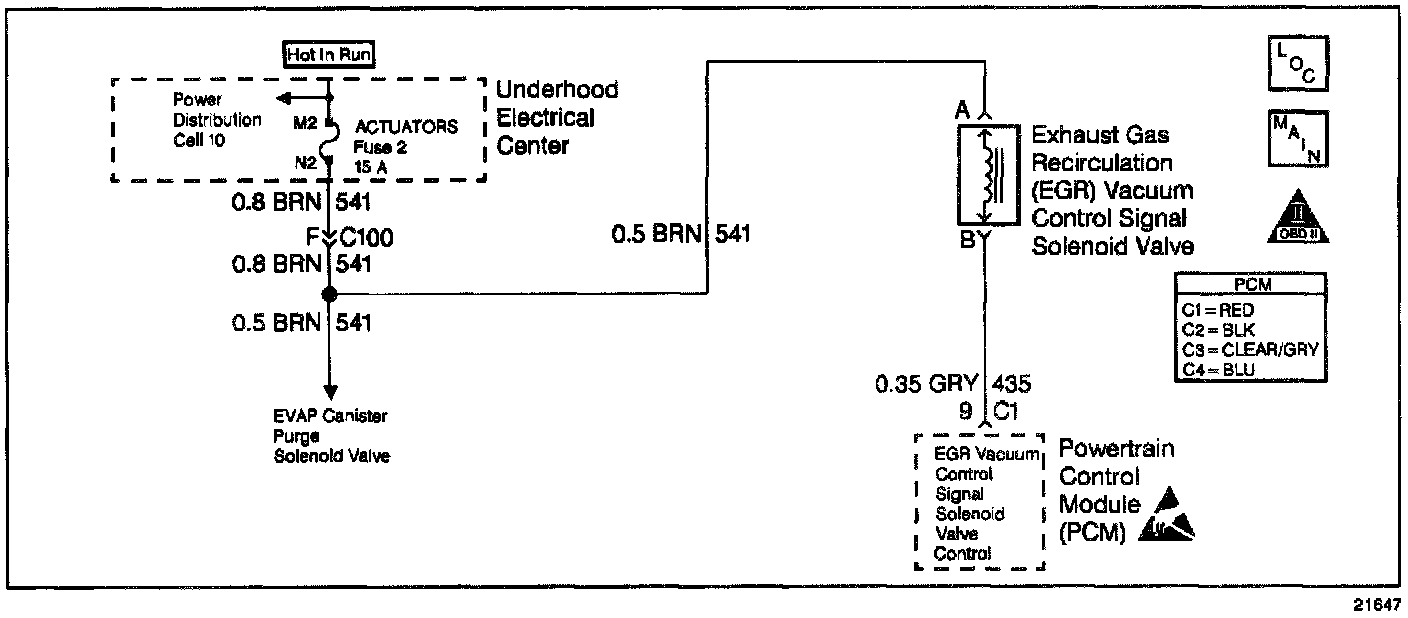

Wiring Diagram:
