Adjuster Assembly Replacement

NOTE: The adjuster assembly wiring harness must be routed between the adjuster assembly motor and the mounting stud and nut. The cable must not be placed under the motor in a position that creates stress on the cover hinge. Make certain the wiring harness is confined inside the cover and also that it is not pinched by the flap when closed. The adjuster assembly cable must always be adjusted each time the adjuster assembly is removed and/or replaced to ensure optimum system performance.

REMOVE OR DISCONNECT

Adjuster Assembly Splash Cover:

1. Adjuster assembly splash cover.
2. Cable cam cover.
3. Throttle body lever shield attaching screw and shield.

Adjuster Assembly - Accelerator And Cruise Control:

4. Throttle body cable from throttle body lever.
5. Adjuster assembly electrical connector.

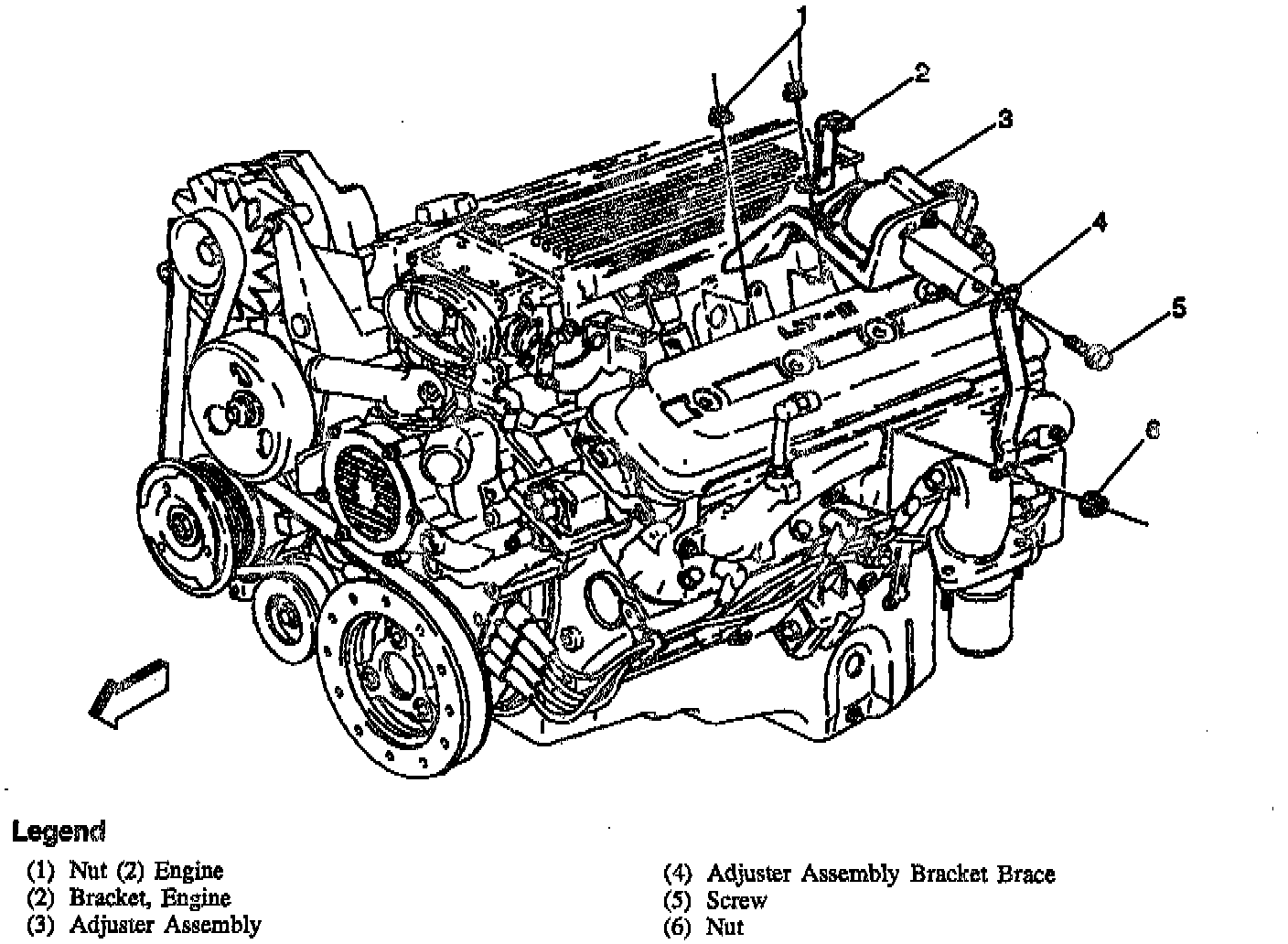

6. Nuts attaching adjuster assembly to bracket (2).

Adjuster Assembly Cable Locations:

7. Cables from adjuster assembly.
8. Adjuster assembly.

INSTALL OR CONNECT
1. Position adjuster assembly near mounting bracket.
2. Cables on adjuster assembly.
3. Adjuster assembly to mounting bracket.
4. Adjuster assembly attaching nuts. Tighten Adjuster assembly attaching nuts to 25 Nm (18 lb. ft.).
5. Adjuster assembly electrical connector.
6. Throttle body cable to throttle body lever. Adjust Adjuster assembly cables. Refer to the adjustment procedure in this section.
7. Cable cam cover.
8. Adjuster assembly splash cover.
9. Throttle body lever shield and attaching screw. Tighten Throttle body lever shield and attaching screw to 2 Nm (18 inch lbs.). Adjuster assembly cable locations Throttle body to adjuster assembly cable on cam closest to adjuster assembly DC motor. Accelerator pedal to adjuster assembly cable on middle cam. Cruise module to adjuster assembly cable on cam farthest from adjuster assembly DC motor.
