P0560

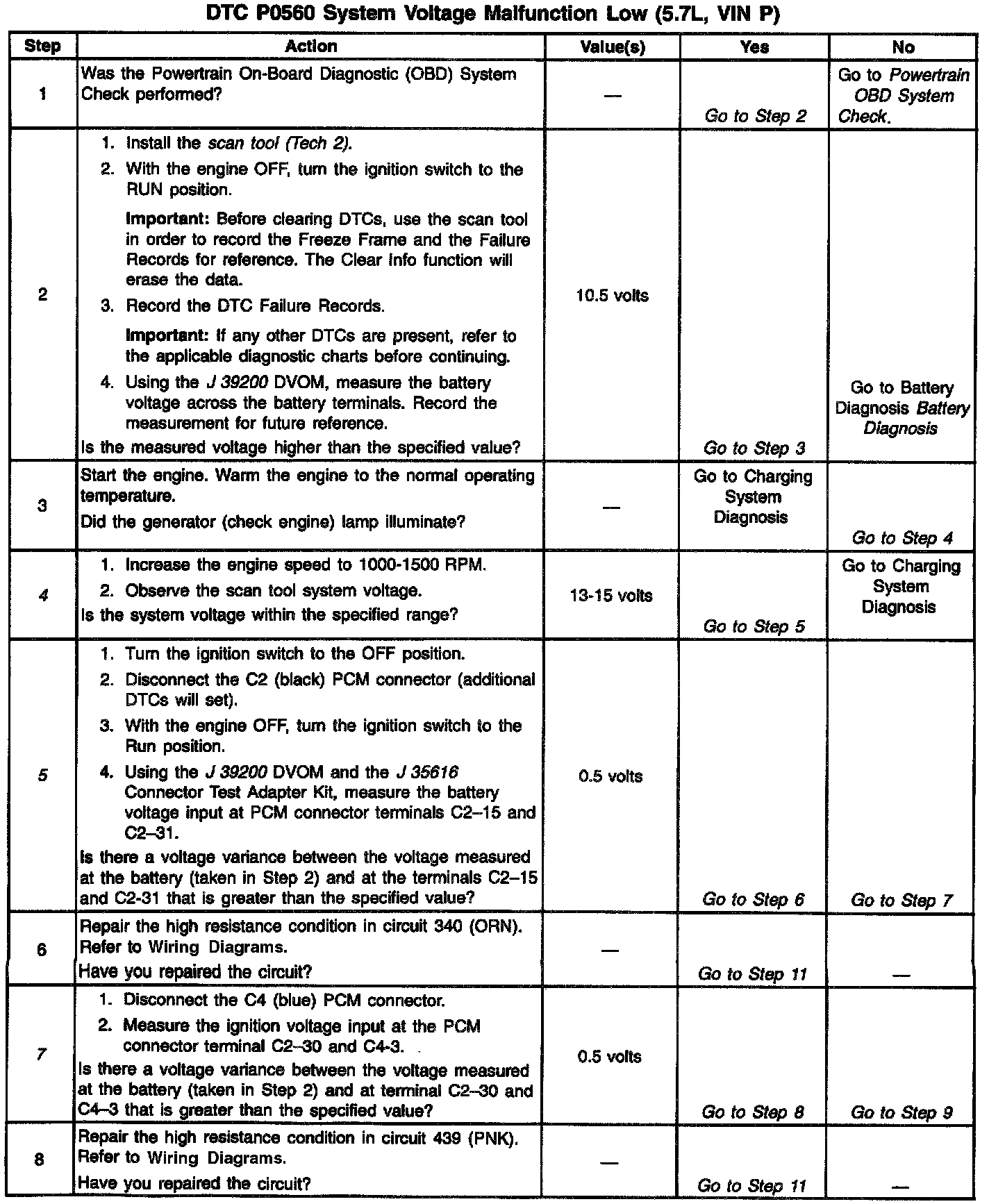

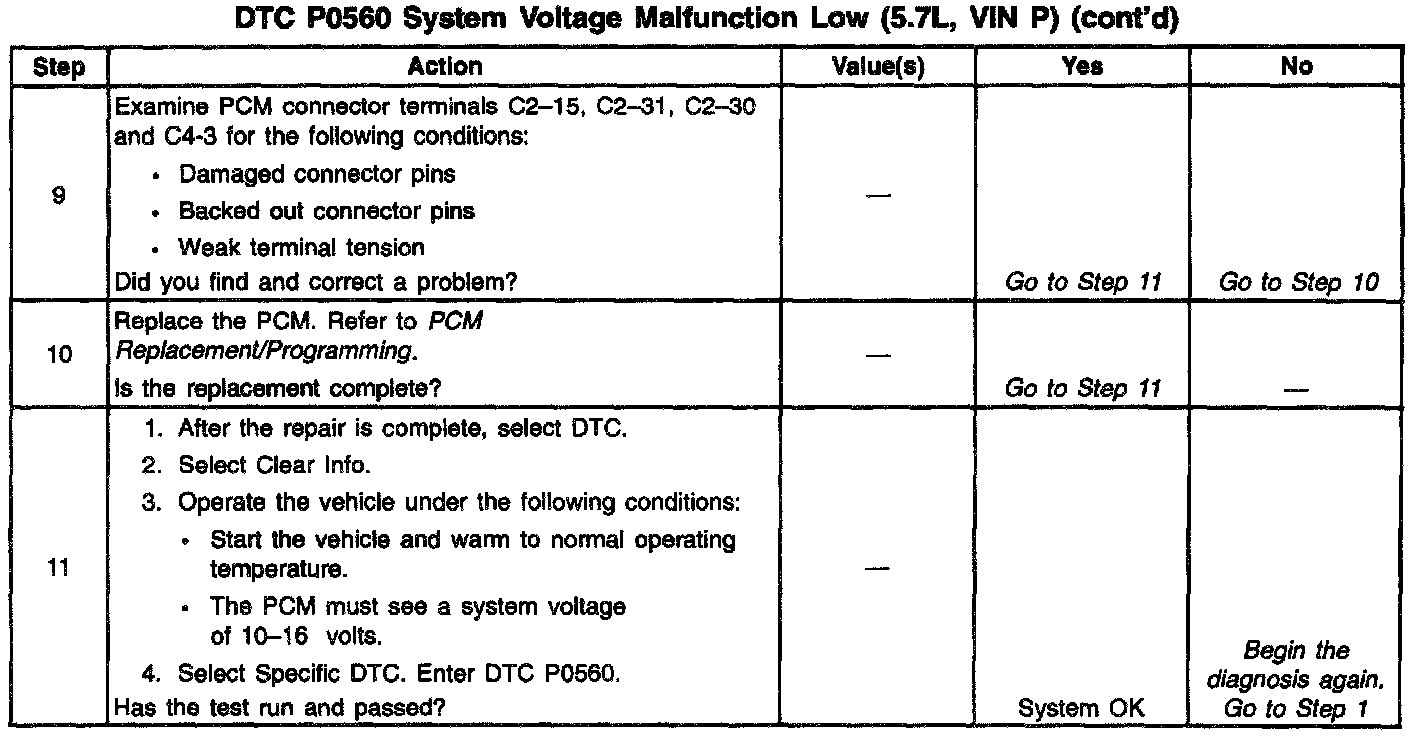

Diagnostic Chart:

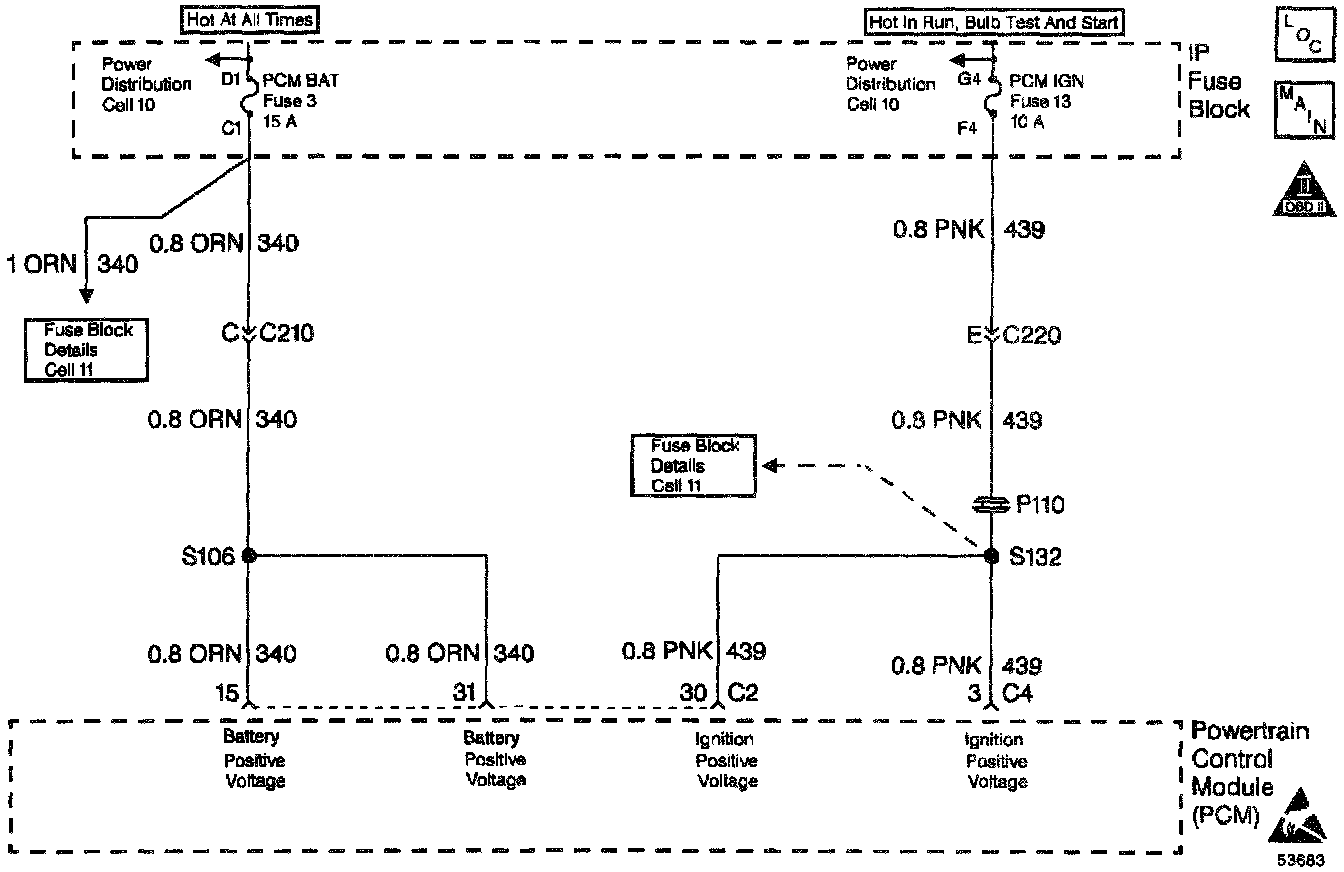

Wiring Diagram:

Circuit Description

Circuit 439 is the ignition voltage feed for the PCM. Circuit 340 is the battery voltage feed for the PCM. If the PCM detects a low voltage and the PCM detects a high voltage, then DTC P0560 sets. DTC P0560 is a type D DTC.

Conditions for Setting the DTC The system voltage is low:
- The engine speed is greater than 1000 RPM.
- The system voltage is less than 10 volts at a maximum transmission temperature of 150°C (302°F).
- The system voltage is less than 7.3 volts at a minimum transmission temperature of -40°C (-40°F).
- All conditions are met for 4 seconds.

A high system voltage causes DTC P0560 to set, if the system voltage is greater than 17 volts for 2 seconds.

Action Taken When the DTC Sets
- All transmission output devices are OFF except the Torque Converter Clutch (TCC) Pulse Width Modulated (PWM) Solenoid Valve and the 32 Shift Solenoid Valve Assembly.
- The PCM freezes shift adapts from being updated.
- The PCM does not illuminate the Malfunction Indicator Lamp (MIL).

Conditions for Clearing the DTC
- A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.
- The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

Diagnostic Aids

- Charging the battery with a battery charger may set DTCs. Jump starting an engine may falsely set DTCs.
- If DTCs set when you operate an accessory, inspect the applicable wiring for faulty connections, and excessive current draw.
- Inspect the starter solenoid for faulty connections.
- Examine the starter solenoid fusible link.
- Inspect the generator for a damaged terminal.
- Inspect the belts for damage. Inspect the belt for correct tension.

Test Description

The numbers below refer to the step numbers on the diagnostic chart.
4. This step tests the charging system voltage.
5. This step tests the battery voltage input at the PCM.
7. This step tests the ignition voltage input at the PCM.
