Checking Limited Slip Operation

^ Tools Required:
- J 2619-01 Slide Hammer
- J 21579 Axle Shaft Remover

1. Place automatic transmission range selector lever in "PARK" position, or in gear if equipped with a manual transmission, park brake lever released.
2. Raise both rear tires and wheels off the floor.
3. Remove one tire and wheel.

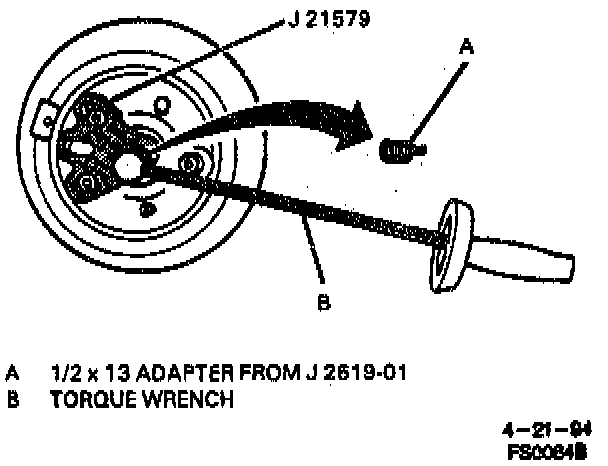

4. Install J 21579, 1/2 x 13 adapter from J 2619-01 and a torque wrench.
5. Measure torque required to rotate one tire and wheel. Torque should be between 169 and 305 Nm (125 and 225 ft. lbs.).
6. Place automatic transmission range selector lever in "NEUTRAL" position and lower one rear tire and wheel to ground.
7. Measure torque required to rotate roused tire and wheel. Torque should be between 58 and 91 Nm (43 and 67 ft. lbs.).
8. Install tire and wheel.
- The differential case should be replaced if any of the above checks do not fall within specifications.
