Inner Bearing

Standard Rear Axle Assembly:

Rear Axle Assembly With Traction Control (Acceleration Slip Regulation):

^ Tools Required:
- J 22912-01 Rear Pinion Bearing Cone Remover
- J 8092 Driver Handle
- J 29609 Rear Pinion Bearing Cup Installer
- J 5590 Rear Pinion Bearing Cone Installer

REMOVE OR DISCONNECT
1. Differential drive pinion gear (23).
2. Drive pinion gear bearing spacer (8) from drive pinion gear (23).
- Discard drive pinion gear bearing spacer (8).
3. Drive pinion gear inner bearing race from rear axle housing (16), if replacing inner drive pinion gear bearing (18).
- Drive race from rear axle housing (16) using a punch in slots provided for this purpose.

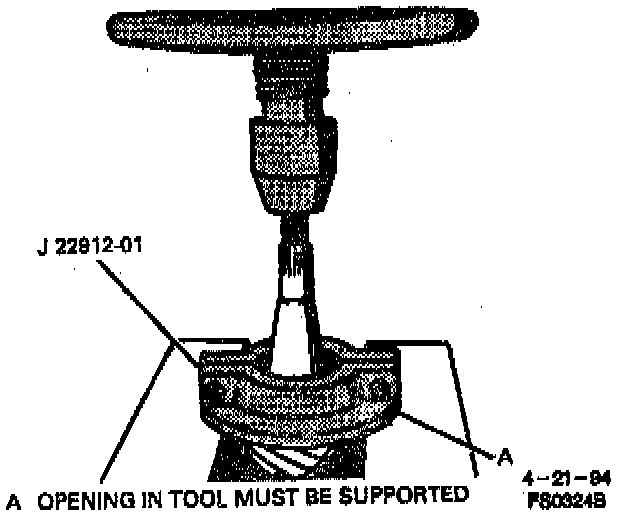

4. Drive inner drive pinion gear bearing (18) from drive pinion gear (23) using J 22912-01.

INSTALL OR CONNECT





1. Inner drive pinion gear bearing (18) onto drive pinion gear (23) using J 5590.





2. Drive inner bearing race into rear axle housing (16) using J 8092 and J 29609, if inner drive pinion gear bearing (18) was replaced.
3. New drive pinion gear bearing spacer (8) onto drive pinion gear (23).
4. Differential drive pinion gear (23).
