Test Description

Part 1 Of 2:

Part 2 Of 2:

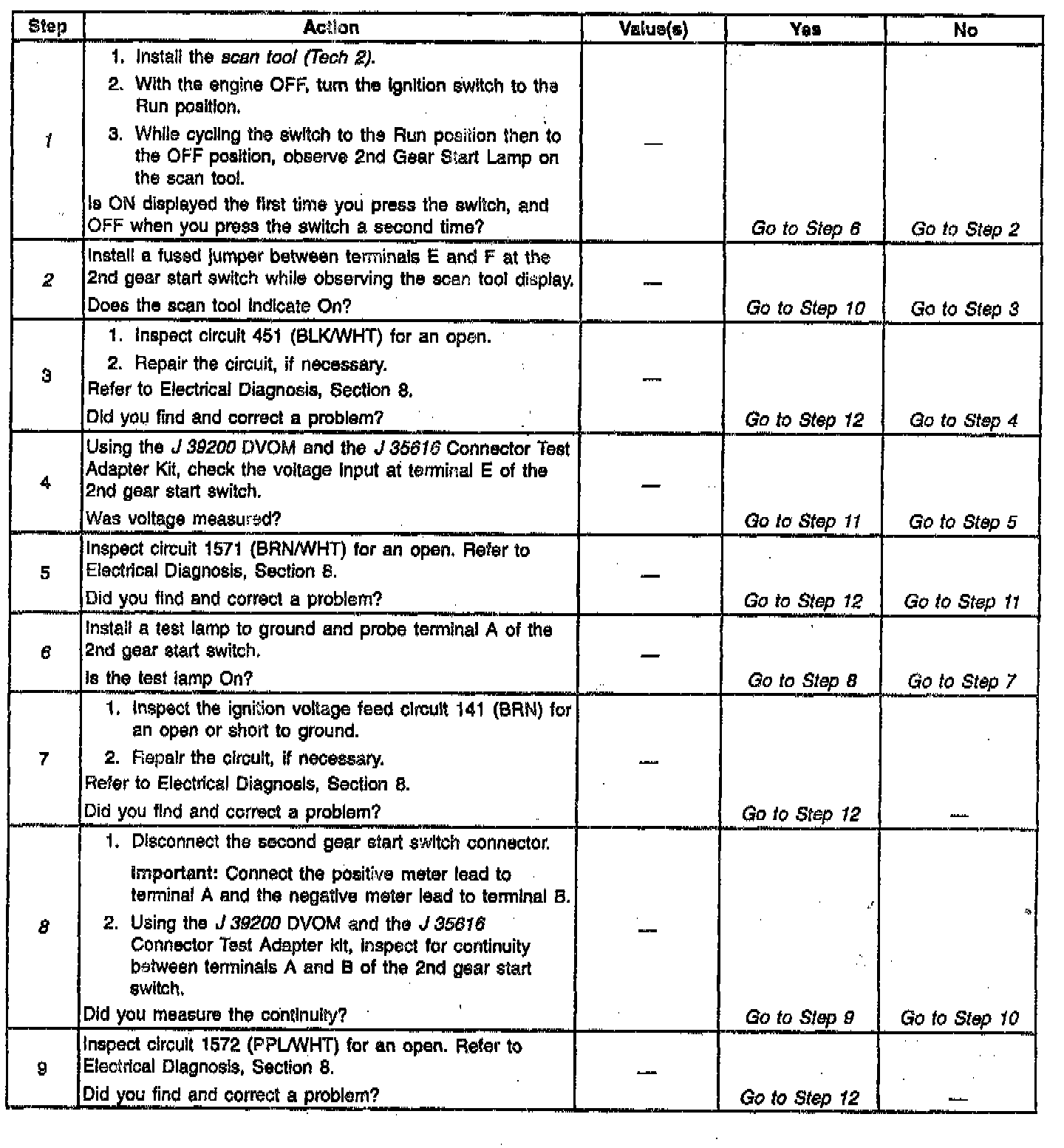

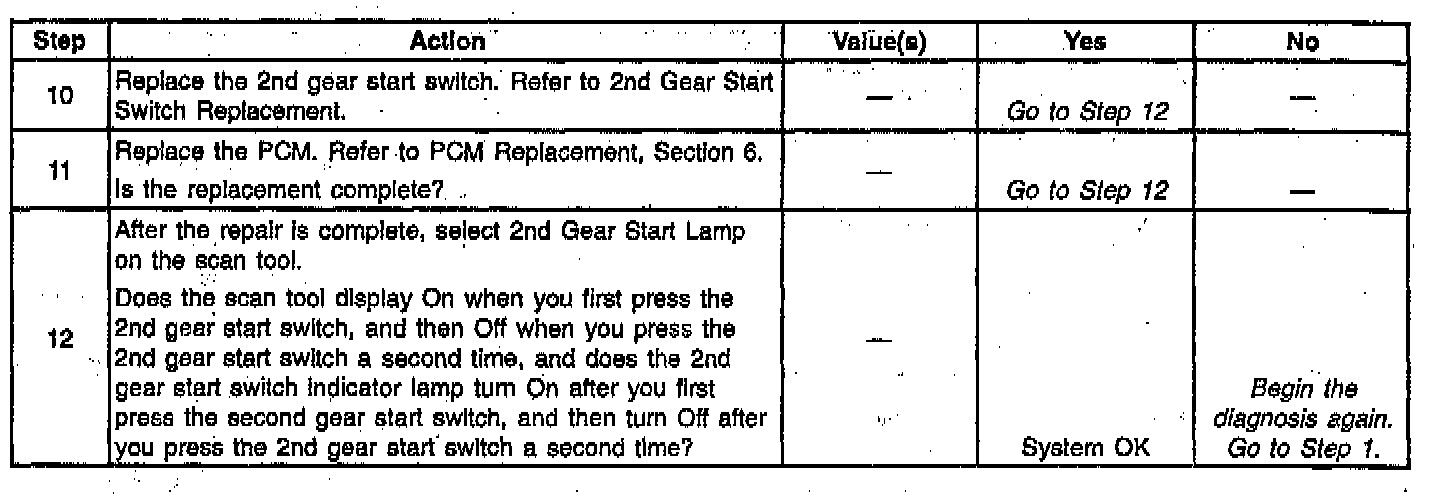

The numbers below refer to the step numbers on the diagnostic chart.
1. This step tests the second gear start switch circuits.
2. This step tests for a faulty 2nd gear start switch.
4. This step tests for a voltage input from the PCM to the 2nd gear start switch.
6. This step tests for a voltage input from the fuse to the 2nd gear start switch.
8. This step tests for a faulty indicator lamp circuit within the 2nd gear start switch.
