A/T - TCC Slips/DTC 1870, Component Slipping
File In Section: 7 - TransmissionBulletin No.: 77-71-70A
Date: December, 1997
Subject:
TCC Slips and/or DTC 1870 (Reflash PCM)
Models:
1997 Chevrolet Camaro
1997 Pontiac Firebird with 3.8L V6 Engine (VIN K - RPO L36) and HYDRA-MATIC 4L60-E (RPO M30) Transmission
This bulletin is being revised to change the correction section. Please discard Corporate Bulletin Number 77-71-70 (Section 7 - Transmission).
Condition
Some owners of the above models may experience a slip and/or DTC 1870 at 45-55 mph (70-90 kmph) when TCC applies.
Cause
Insufficient line pressure required to maintain clutch capacity under 2000 RPM.
Correction
Reflash Powertrain Control Module (PCM). Refer to your service manual for proper procedure.
Parts Information

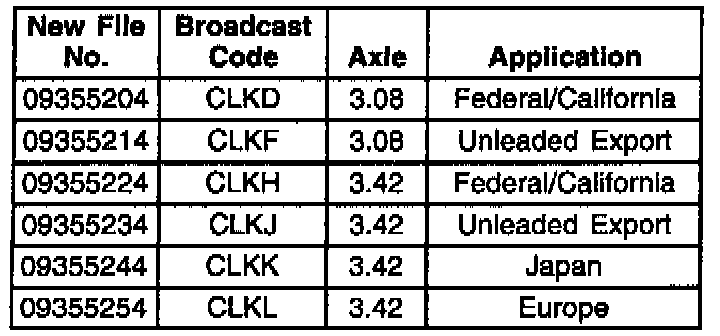

This new calibration will be available starting with the October CD ROM 1997 Disc Number 21 update.
Warranty Information
For vehicles repaired under warranty, use:
Labor Operation Description Labor Time
J6355 Reflash Control Use published
Module labor operation time
HYDRA-MATIC 4l60-E Transmission Identification Information
