Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Fluid level indicator.

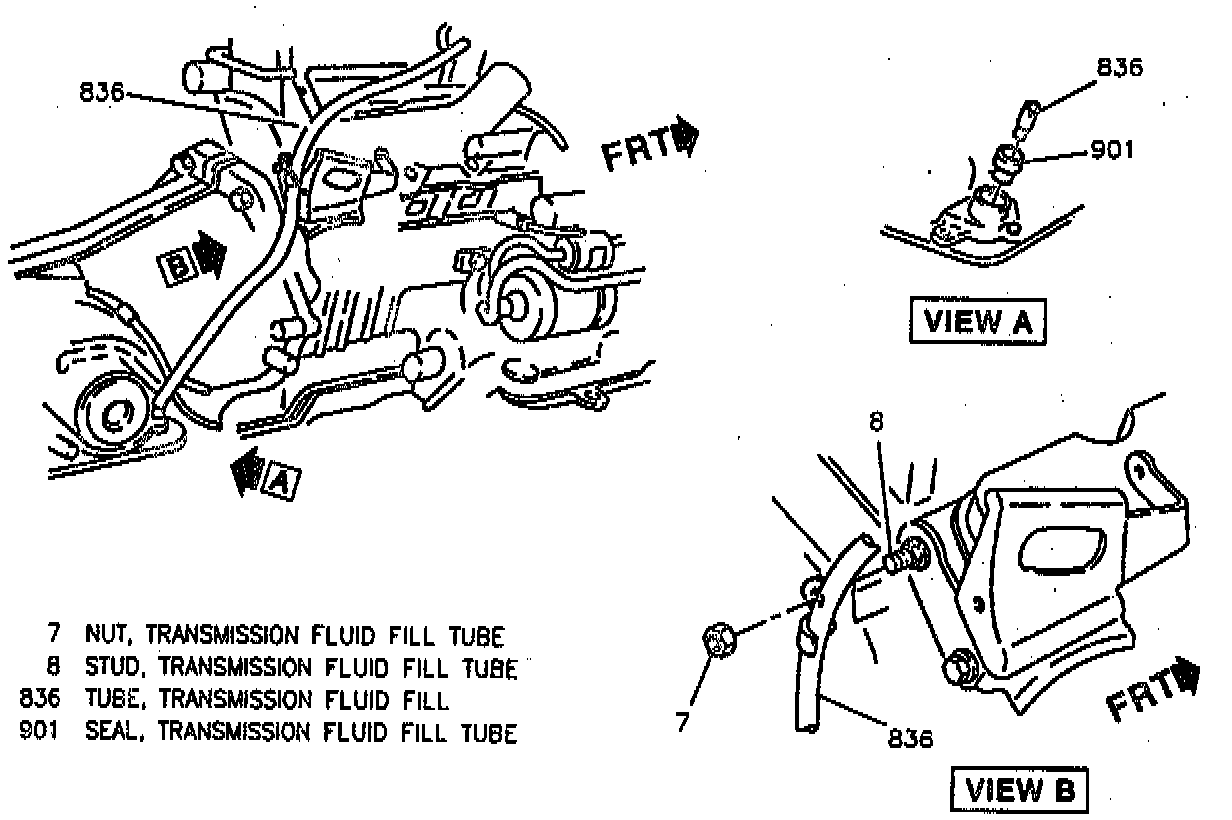

3. Fill tube nut (7) attaching fill tube (836) to transmission.
4. Loosen fill tube (836) from transmission (838).
5. Place drain pan under transmission (838).
6. Lower vehicle.
7. Fill tube (836) and fill tube seal (901) from transmission by pulling tube out through engine compartment.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHER WISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on the threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Fill tube seal (901) and fill tube (836) through engine compartment to transmission.
2. Raise and suitably support vehicle.
3. Insert fill tube seal (901) into transmission case hole.
4. Fill tube (836) to transmission (838).
5. Fill tube nut (7) attaching fill tube (836) to transmission.

Tighten
- Transmission fluid fill tube nut (7) to 25 Nm (18 ft. lbs.).

7. Lower vehicle.
8. Fluid level indicator.
