Torque Arm Replacement

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Support rear axle (13) with an adjustable lifting device.

Important: When raising vehicle, do not use twin post type hoist.

3. Torque arm from propeller shaft, if equipped with two-piece propeller shaft.

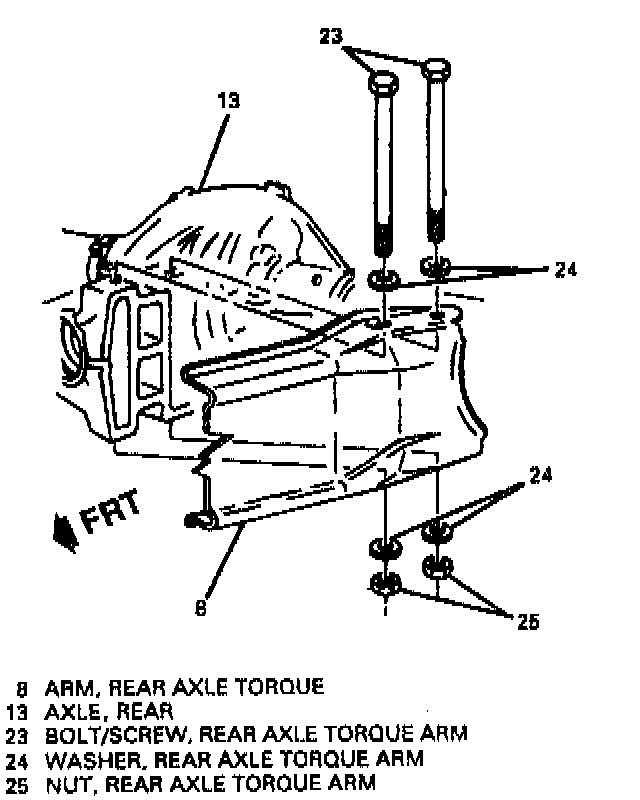

4. Bolts/screws (23), washers (24) and nuts (25) from rear axle (13).

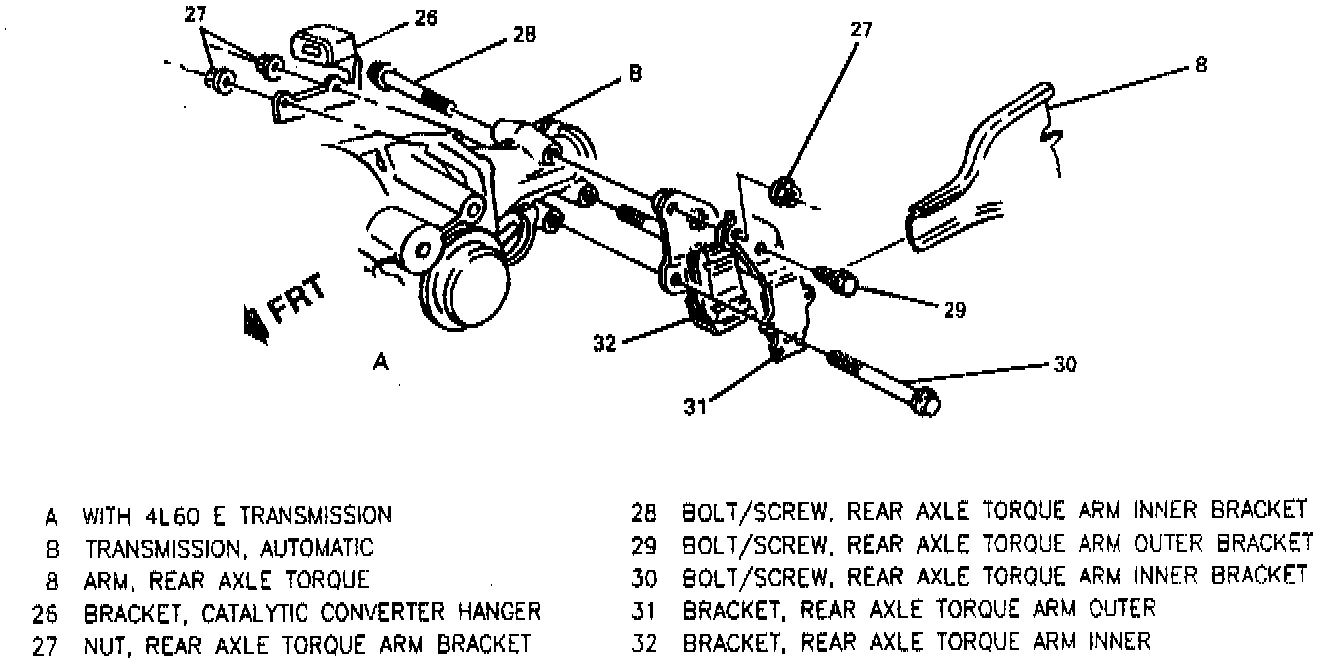

5. Bolts/screws (28, 29 and 30) and nuts (27) from automatic transmission, if equipped.
6. Bolts/screws (29 and 30) and nuts (27) from manual transmission, if equipped.
7. Outer bracket (31).
8. Inner bracket (32).
9. Torque arm (8).

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Position inner bracket (32) through transmission.
2. Position outer bracket (31) to inner bracket (32) and loosely install nuts (27), and bolts/screws (28, 29 and 30).
3. Insert torque arm (8) into brackets (31 and 32).
4. Nuts (27) and bolts/screws (28, 29 and 30).
^ Tighten:
- Nuts (27) to 41 Nm (30 ft. lbs.).
- Bolts/screws (28 and 30) to 50 Nm (37 ft. lbs.).
- Bolts/screws (29) to 27 Nm (20 ft. lbs.).
5. Position torque arm (8) to rear axle (13).
6. Bolts/screws (23), washers (24) and nuts (25).
^ Tighten nuts (25) to 132 Nm (97 ft. lbs.).
7. Torque arm to propeller shaft, if equipped with two-piece propeller shaft.
8. Rear axle support.
9. Lower vehicle.
