Rear Bushing

^ Tools Required:
- J 21474-3 Lower Control Arm Bushing Screw
- J 21474-4 Lower Control Arm Bushing Nut
- J 21474-5 Control Arm Bushing Receiver
- J 39874 Lower Control Arm Bushing Receiver
- J 39931 Lower Control Arm Bushing Receiver
- Or Equivalents

DISASSEMBLE

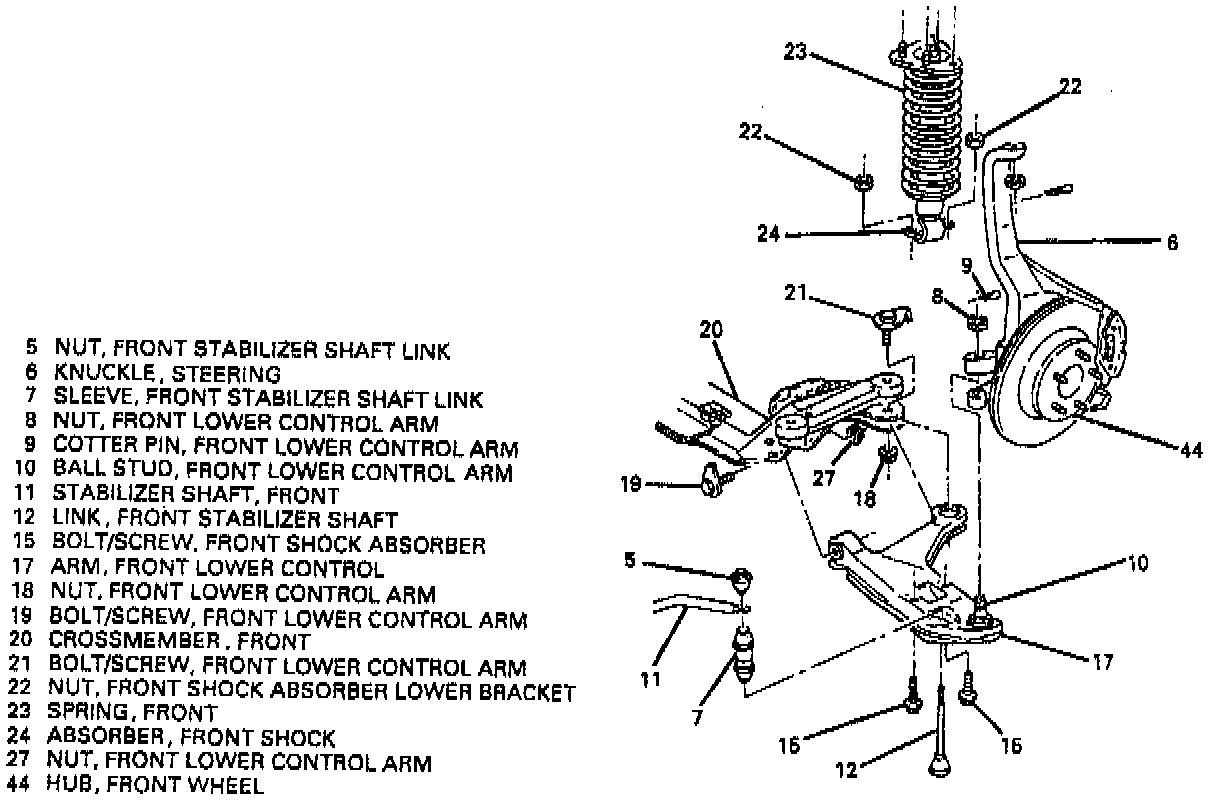

1. Lower control arm. Refer to "Front Lower Control Arm".
2. Remove lower control arm rear bushing from lower control arm (17).

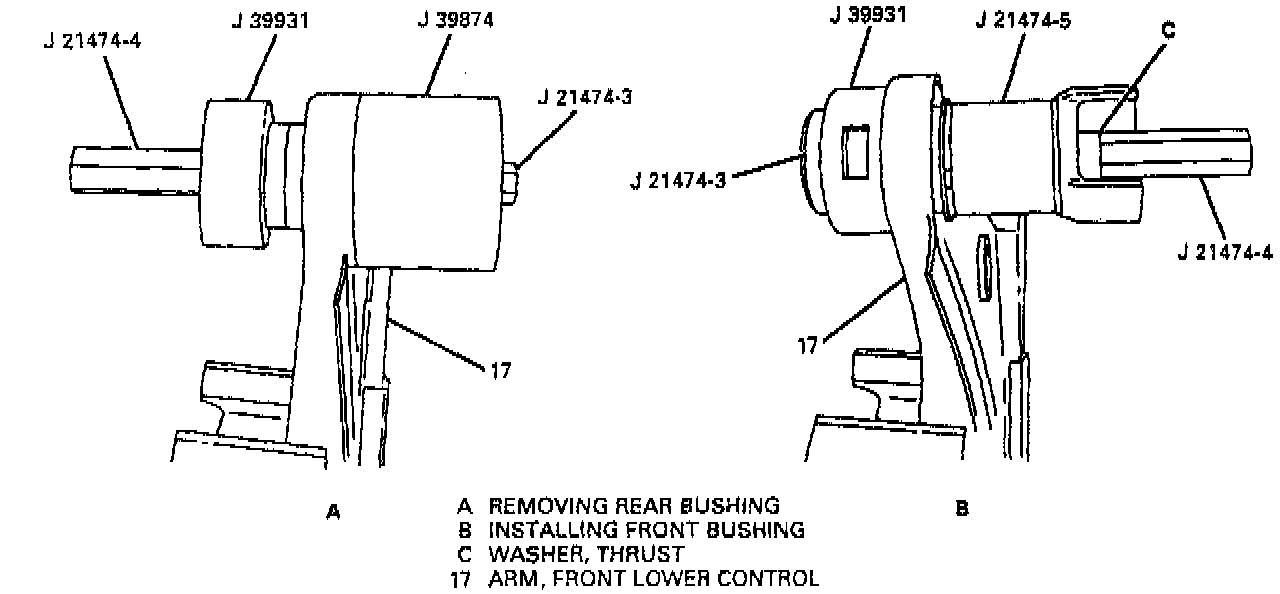

A. Install J 39874 onto J 21474-3 with sealed end of J 39874 facing head of screw.
B. Run J 21474-3 through control arm bushing, control arm, and into small end of J 39931.
C. Install thrust washer onto J 21474-3 with seam facing toward control arm.
D. Install J 21474-4 onto J 21474~3, making sure all parts are lined up with control arm bushing.
E. Tighten until control arm bushing is able to be removed (popping noise may be heard while removing).

ASSEMBLE

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Lower control arm rear bushing.
A. With lower control arm securely tightened in vise, place J 21474-3 through small end of J 39931.
B. Install J 21474-3 through new rear bushing and then through closed end of lower control arm rear.
C. Place small end of J 2147~5 onto J 21474-3.
D. Install thrust washer onto J 2147-3 with seam of washer facing toward control arm.
E. Making sure all tools are lined up with bushing and control arm and that window is facing straight up and visible on J 39931, install J2147-4 onto J 21474-3 and tighten until rubber protrusion on J 39931 side bottoms out against J 39931.
2. Lower control arm. Refer to "Front Lower Control Arm".
