Ignition Switch & Dimmer Switch

REMOVE OR DISCONNECT
1. Left-hand instrument panel insulator.
2. Instrument panel driver knee bolster and deflector.
3. Disable Supplemental Inflatable Restraint (SIR) system. Refer to "Disabling the SIR System".
4. Ensure steering column lock and ignition cylinder is in "LOCK" position.
5. Steering column upper support nuts from steering column support. Refer to "Steering Column Removal".

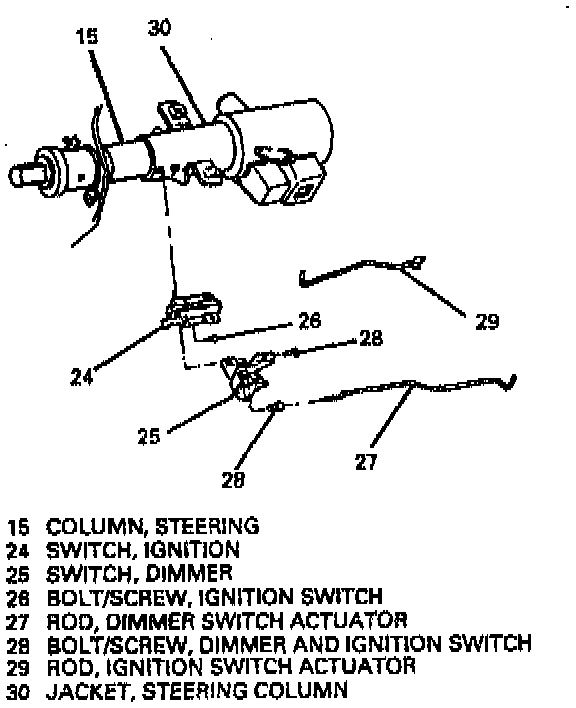

6. Lower column (15).
7. Electrical connectors from dimmer switch (25) and ignition switch (24).
8. Dimmer switch actuator rod (27).
9. Bolts/screws (28).
10. Dimmer switch (25).
11. Bolt/screw (26).
12. Ignition switch actuator rod (29).
13. Ignition switch (24).
14. Automatic transmission park lock cable, if equipped.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Automatic transmission park lock cable, if equipped.
2. Ensure ignition switch (24) is in "LOCK" position.

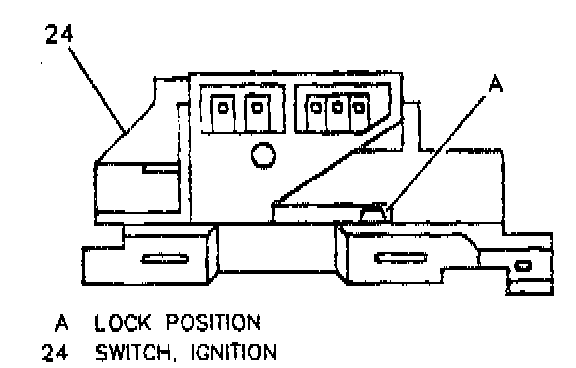

^ Move switch slider to extreme right position and then move slider one detent left.
3. Ensure steering column lock and ignition cylinder is in "LOCK" position.
4. Ignition switch (24) to jacket (30).
5. Ignition switch actuator rod (29) to ignition switch (24).
6. Bolt/screw (26).
^ Tighten bolt/screw (26) to 2.5 Nm (22 lb in).
7. Position dimmer switch (25) to ignition switch (24).
8. Bolts/screws (28).
^ Adjust:
- Dimmer switch (25).
- Press switch mechanism slightly to insert 3/32-inch drill bit.
- Move dimmer switch (25) to remove lash.
^ Tighten bolts/screws (28) to 4 Nm (35 lb in).
9. Dimmer switch actuator rod (27).
10. Electrical connectors to dimmer switch (25) and ignition switch (24).
11. Raise column (15).
12. Steering column upper support nuts to steering column support. Refer to "Steering Column Removal".
13. Enable SIR system. Refer to "Enabling the SIR System".
15. Left-hand instrument panel insulator.
