Control Valve

REMOVE OR DISCONNECT
1. Pump assembly from vehicle, if necessary for access.

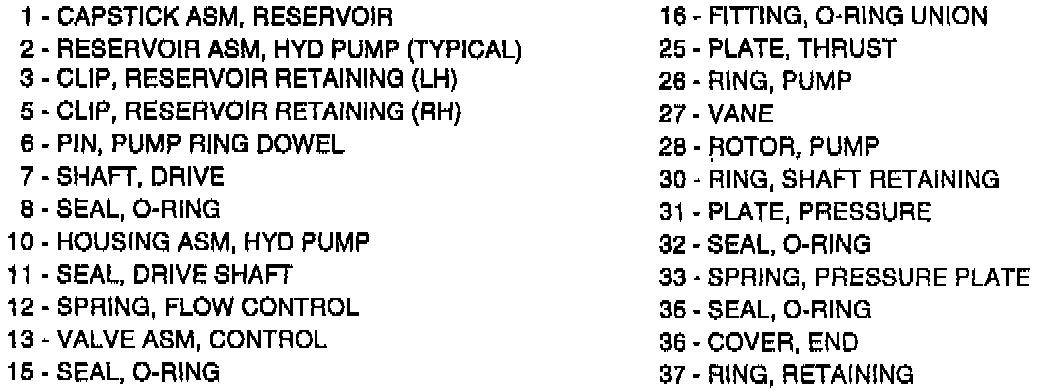

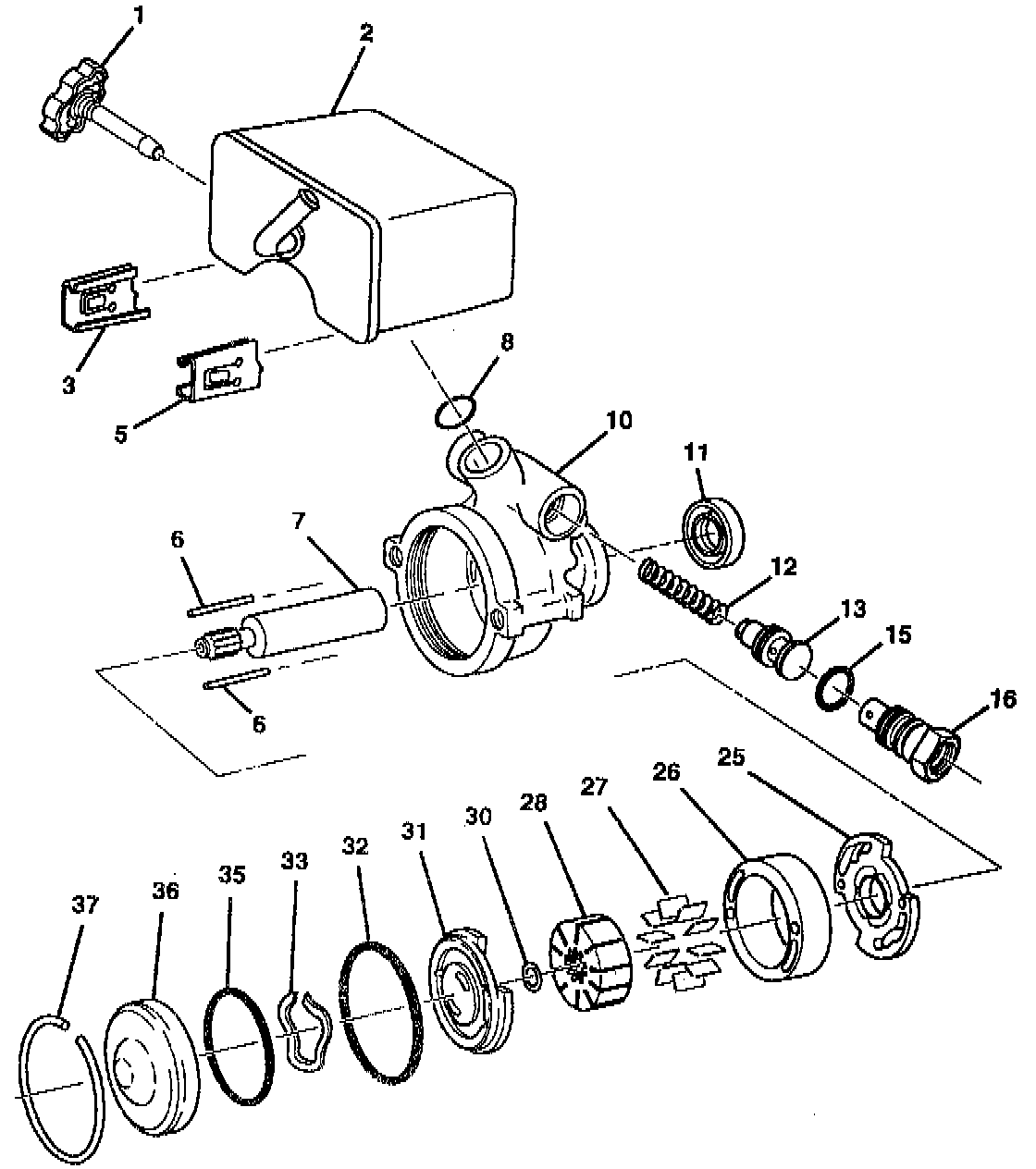

2. Control valve assembly (13).
3. Flow control spring (12).

INSTALL OR CONNECT
1. Flow control spring (12).
2. Control valve assembly (13).
3. Lubricate new O-ring (15) with power steering fluid.
^ O-ring (15) on fitting (16).
^ Tighten fitting (16) to 75 Nm (55 ft. lbs.).
4. Pump assembly to vehicle, if removed.
