A/T - New Wiring Diagrams & Component Location Tables
File In Section: 8 Chassis/Body ElectricalBulletin No.: 73-81-09
Date: February, 1997
SERVICE MANUAL UPDATE
Subject:
Section 8A-39 - New Schematics and Component Location Tables (Previously Omitted)
Models:
1996-97 Chevrolet Camaro
1996-97 Pontiac Firebird

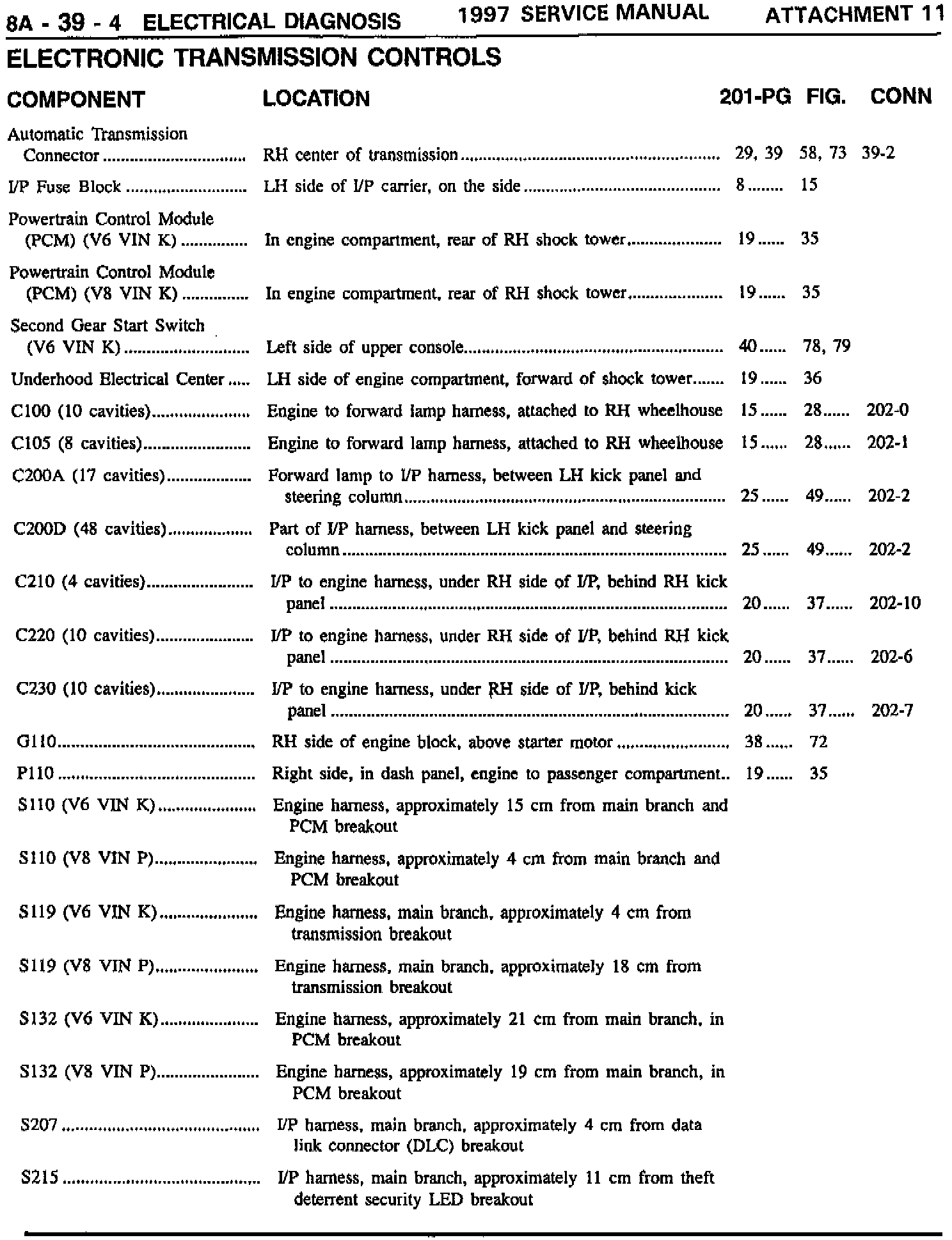

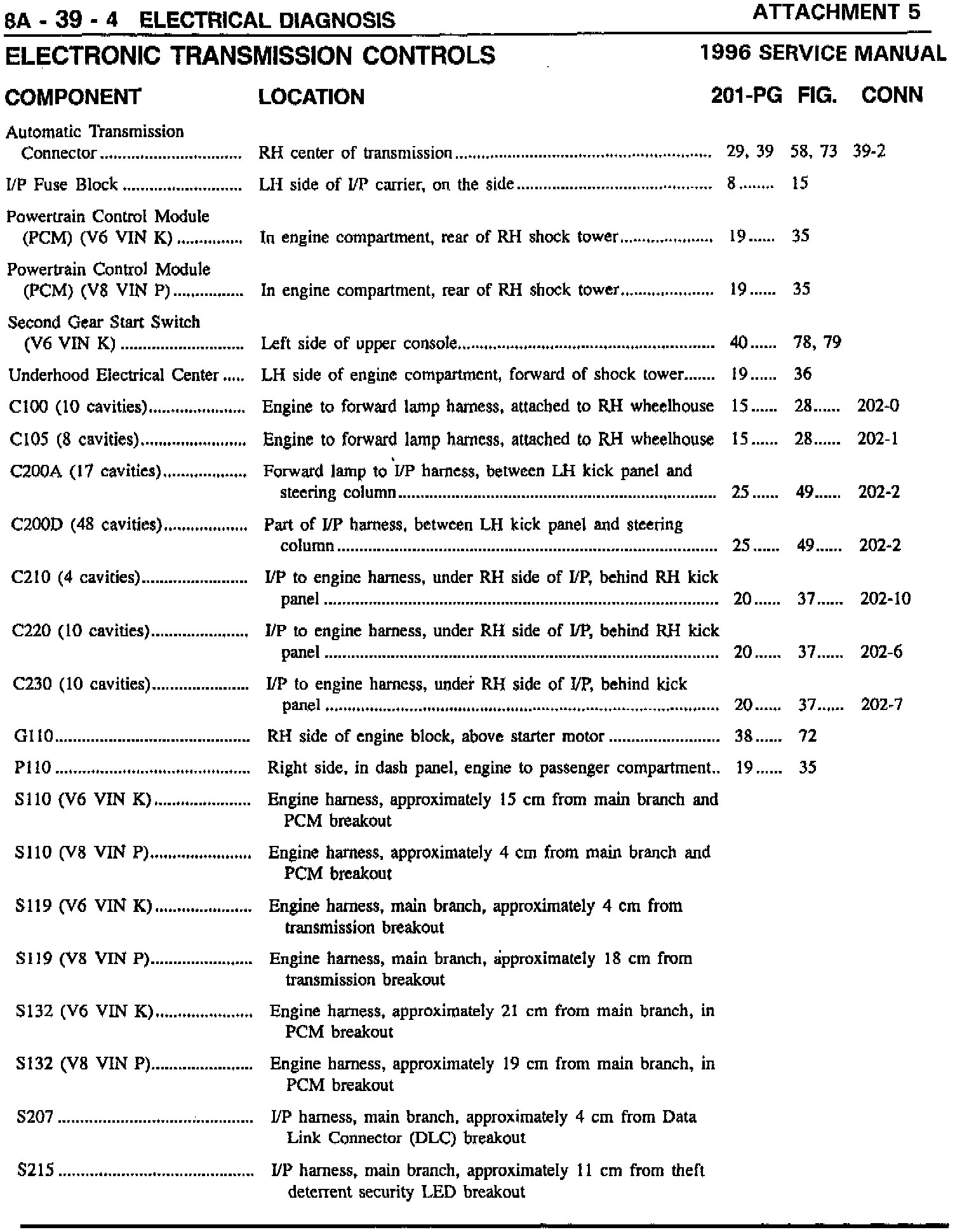

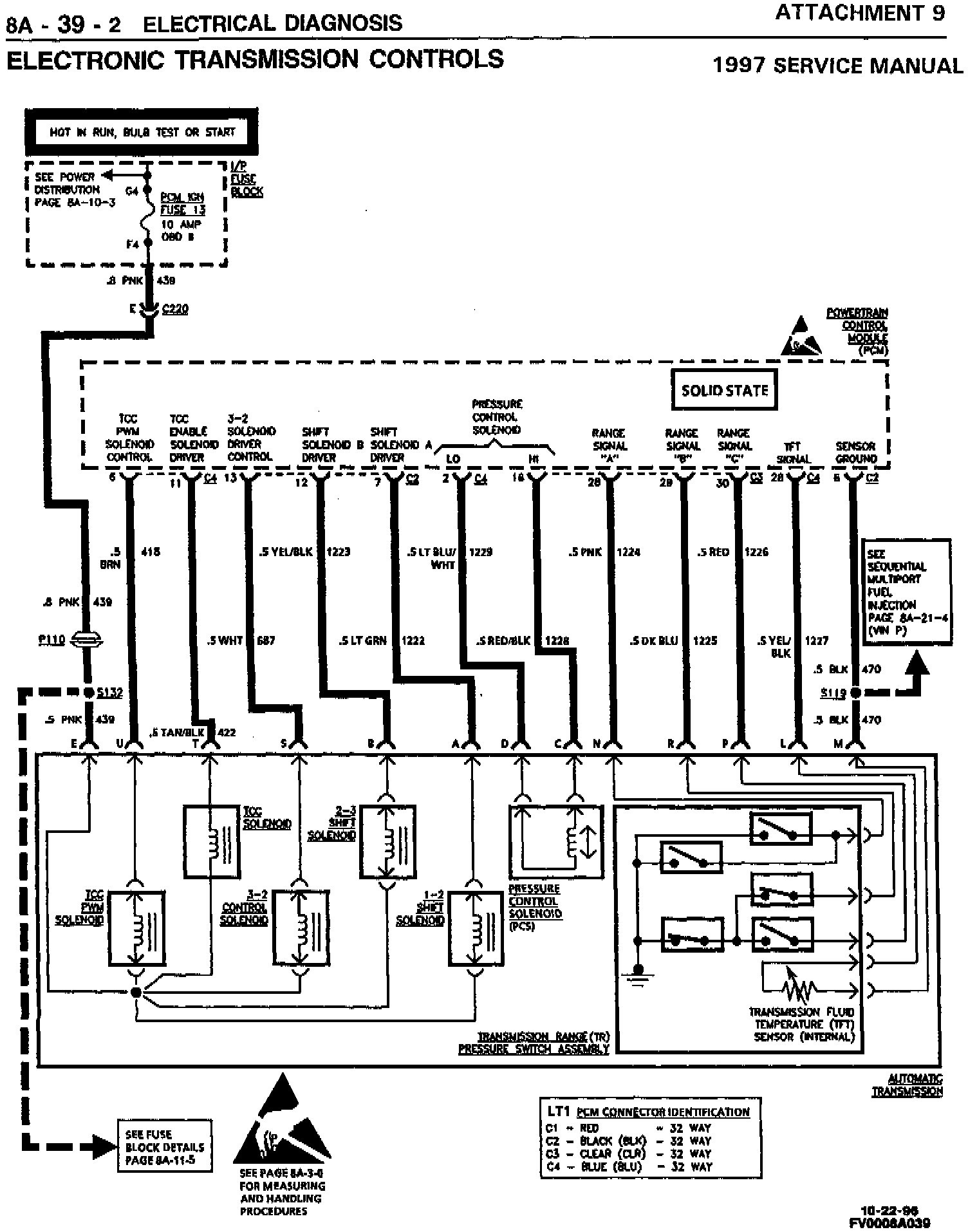

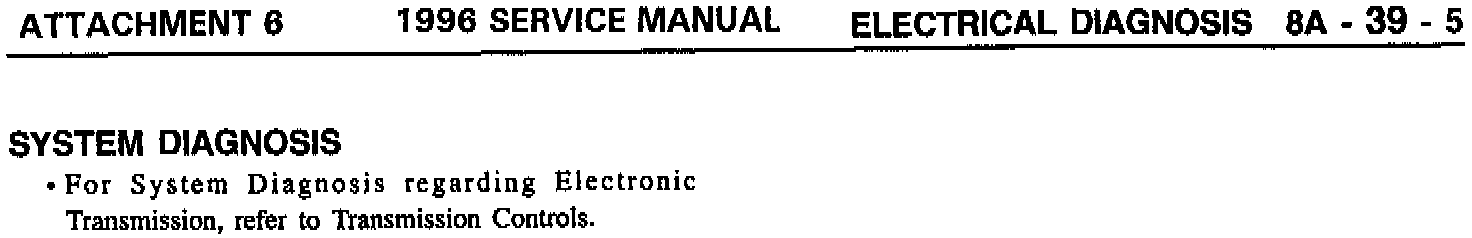

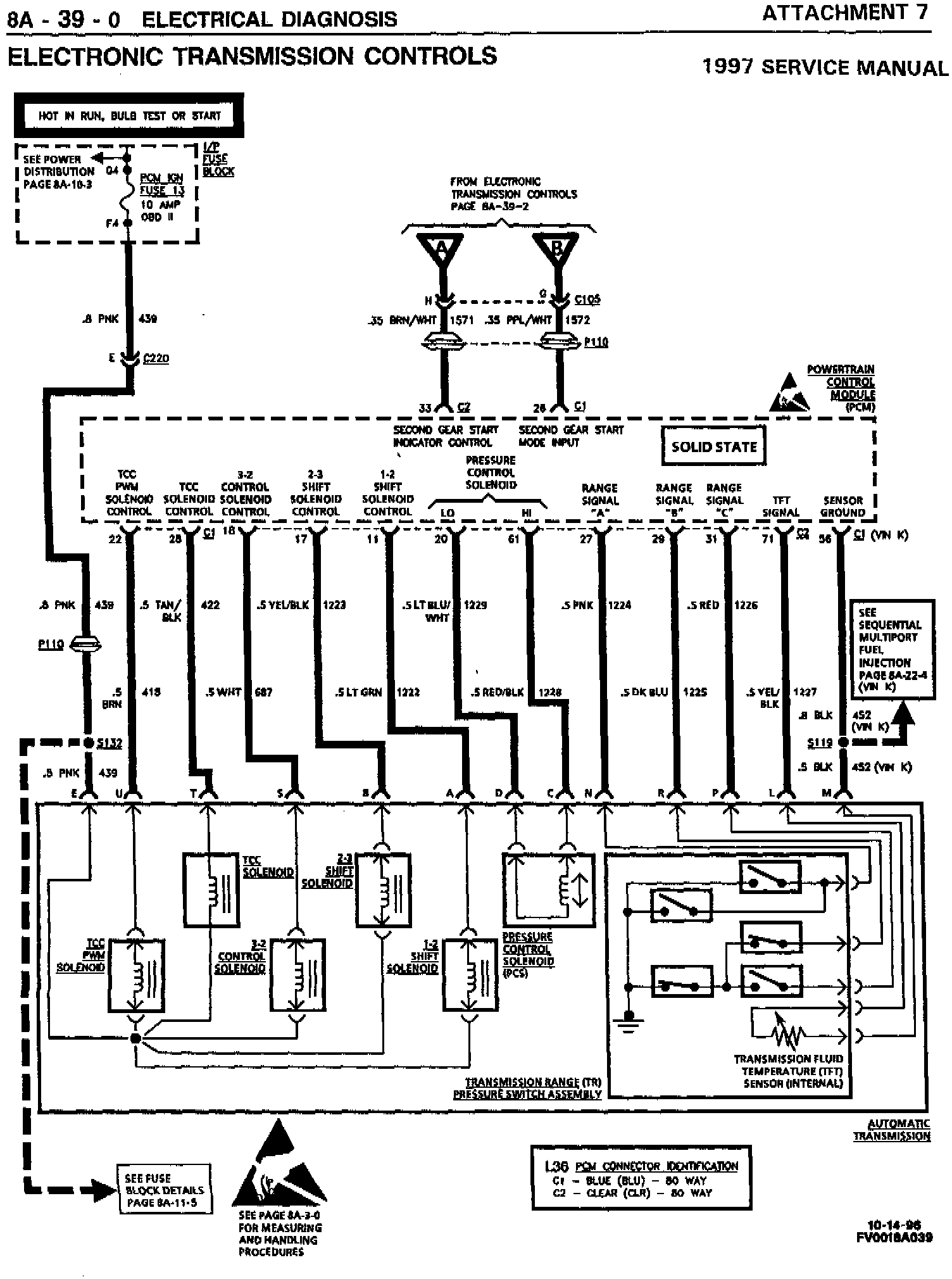

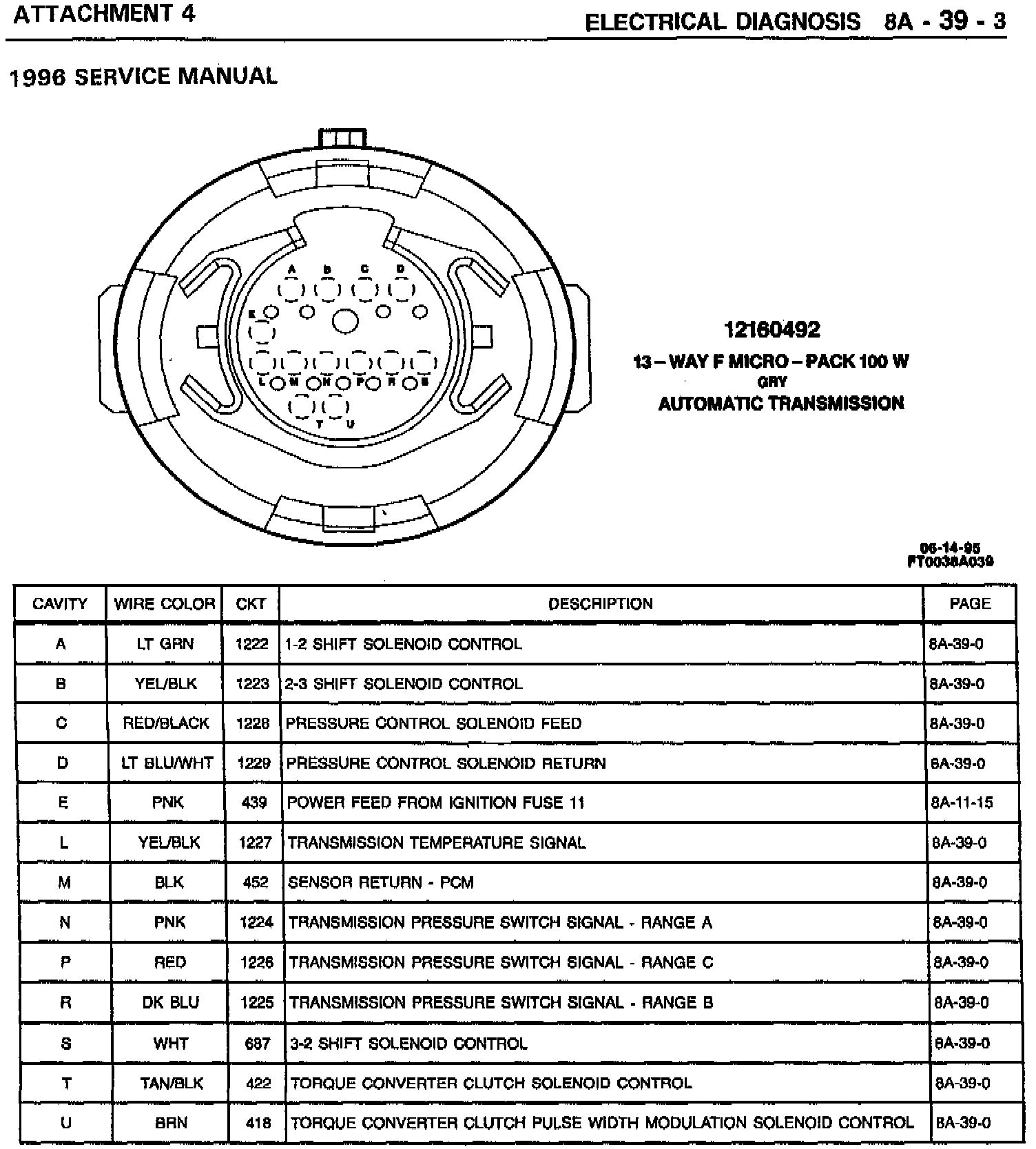

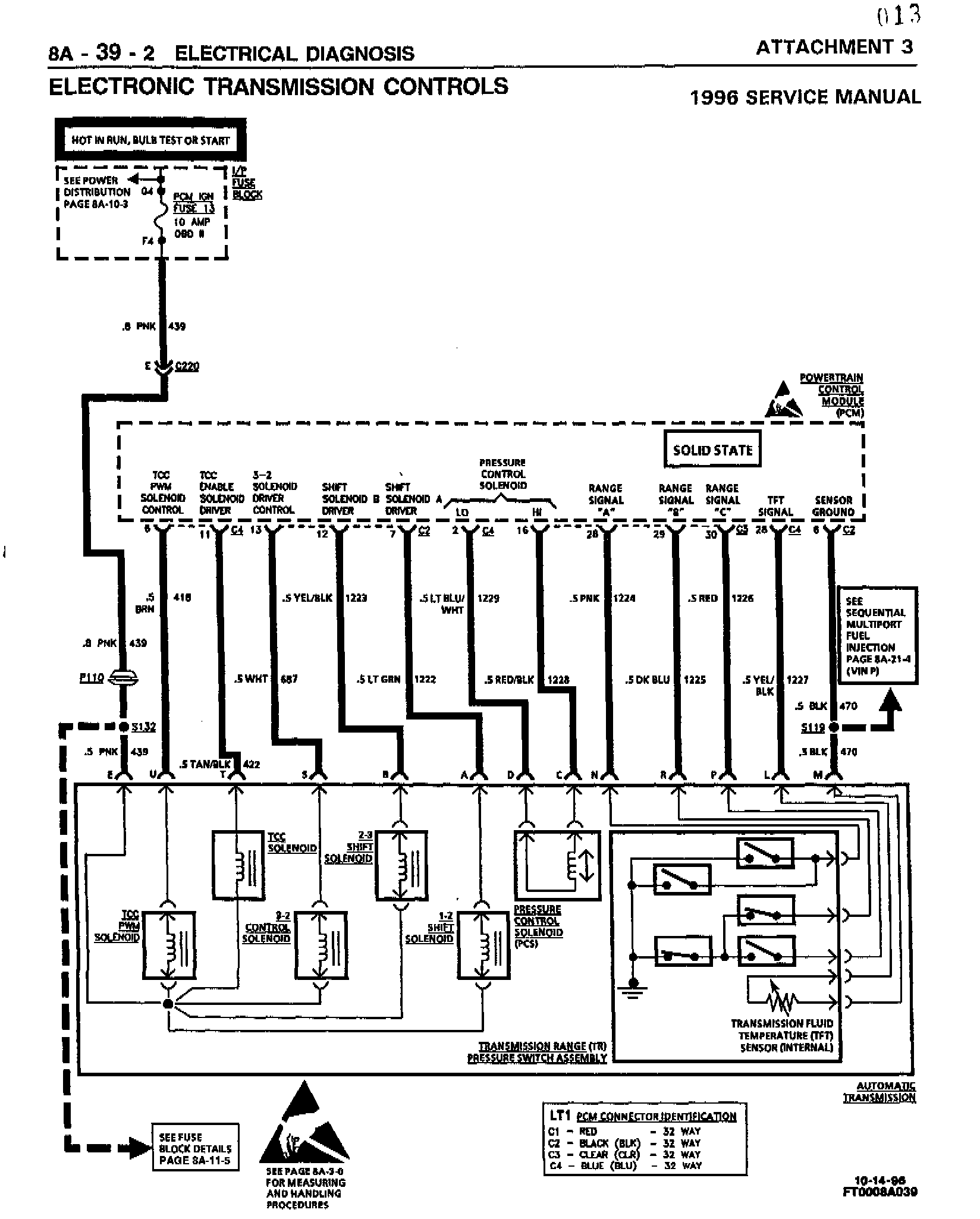

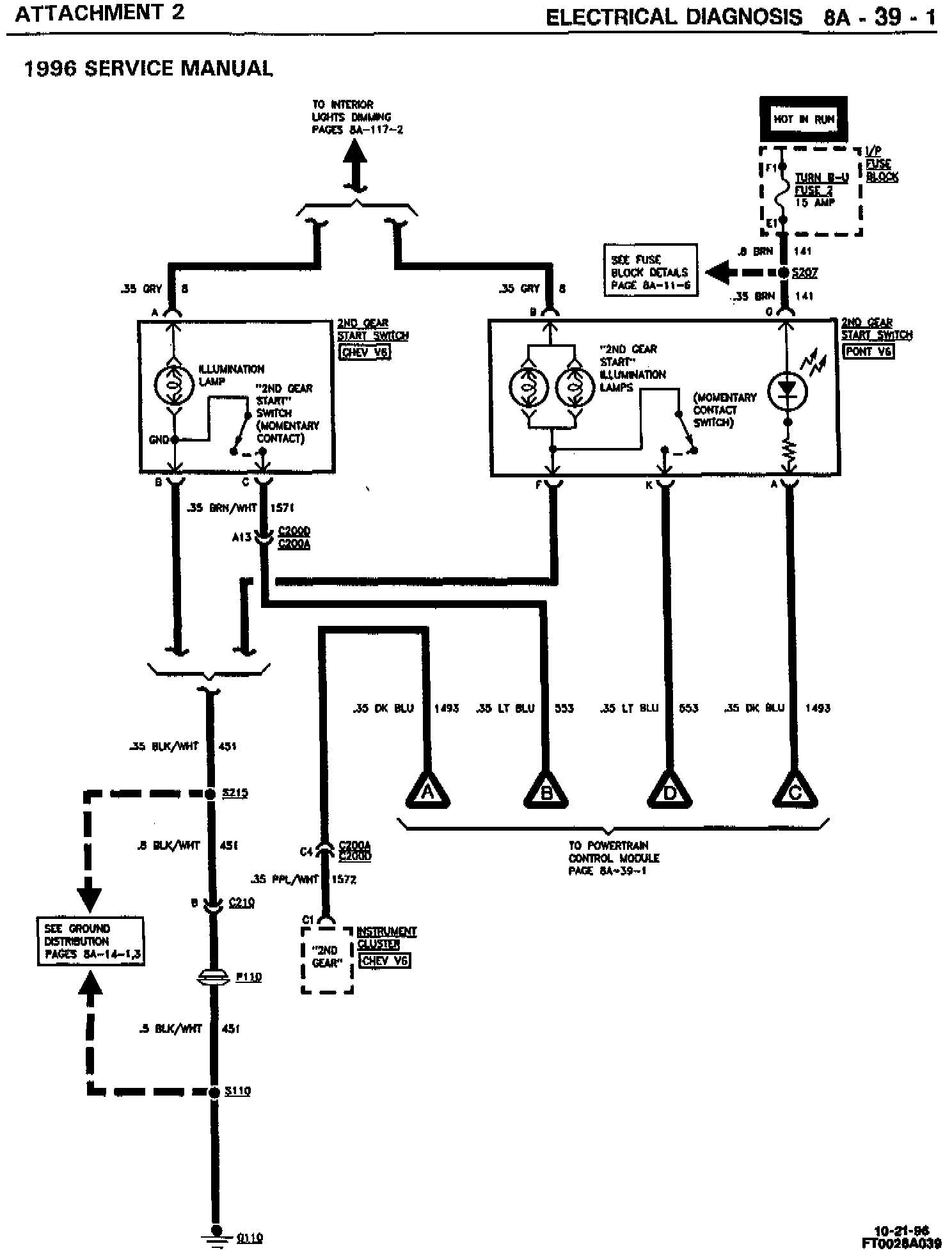

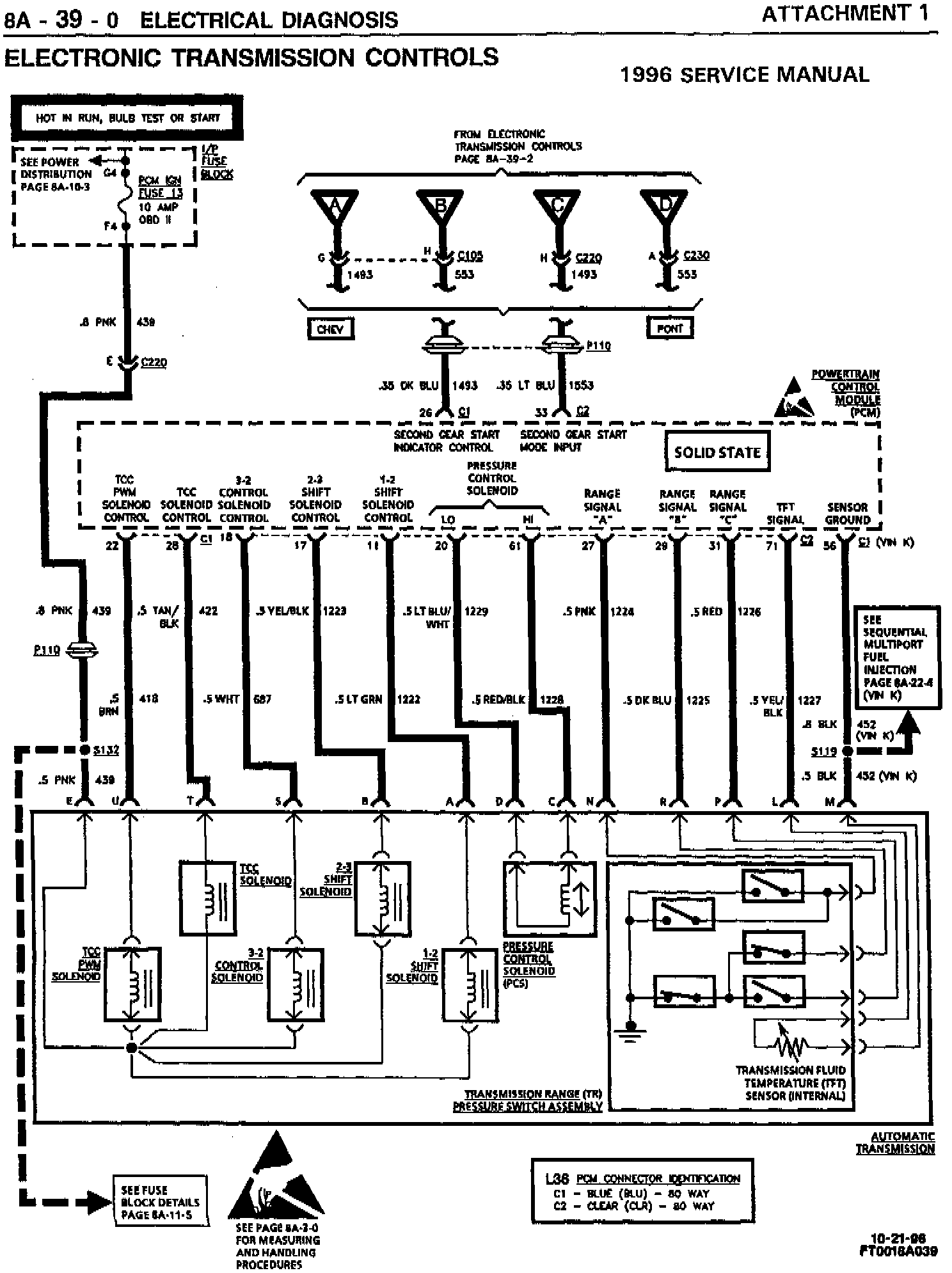

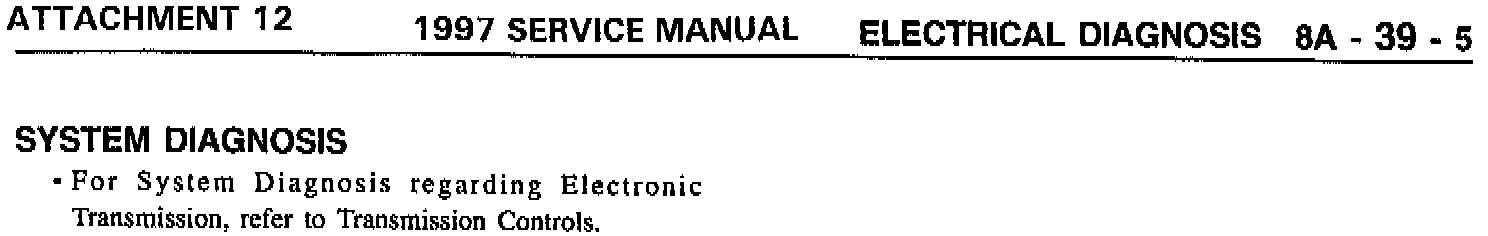

This bulletin is being issued to add schematics and component location tables for pages 8A-39-0 through 8A-39-5 of the 1996 and 1997 Camaro/Firebird
Service Manuals (GMP/96-F-2; GMP/97-F-2) which were previously omitted.
���;���;���;:
Please add these pages to the appropriate Service Manual section.
