Positive Crankcase Ventilation Valve: Service and Repair

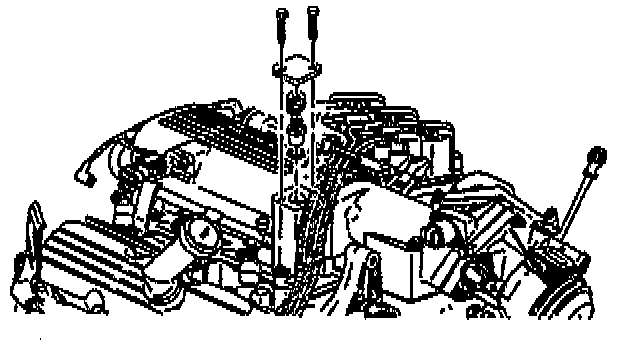

PCV Valve And Cover:

REMOVE OR DISCONNECT
1. While holding down the PCV Valve cover remove the two (2) cover retaining bolts.
2. Remove the PCV Valve cover.
3. Remove the PCV Valve spring, and O-ring.

INSTALL OR CONNECT
1. Install the PCV Valve, spring, and O-ring.
2. Install cover (use a new gasket if necessary).
