Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G200
G200

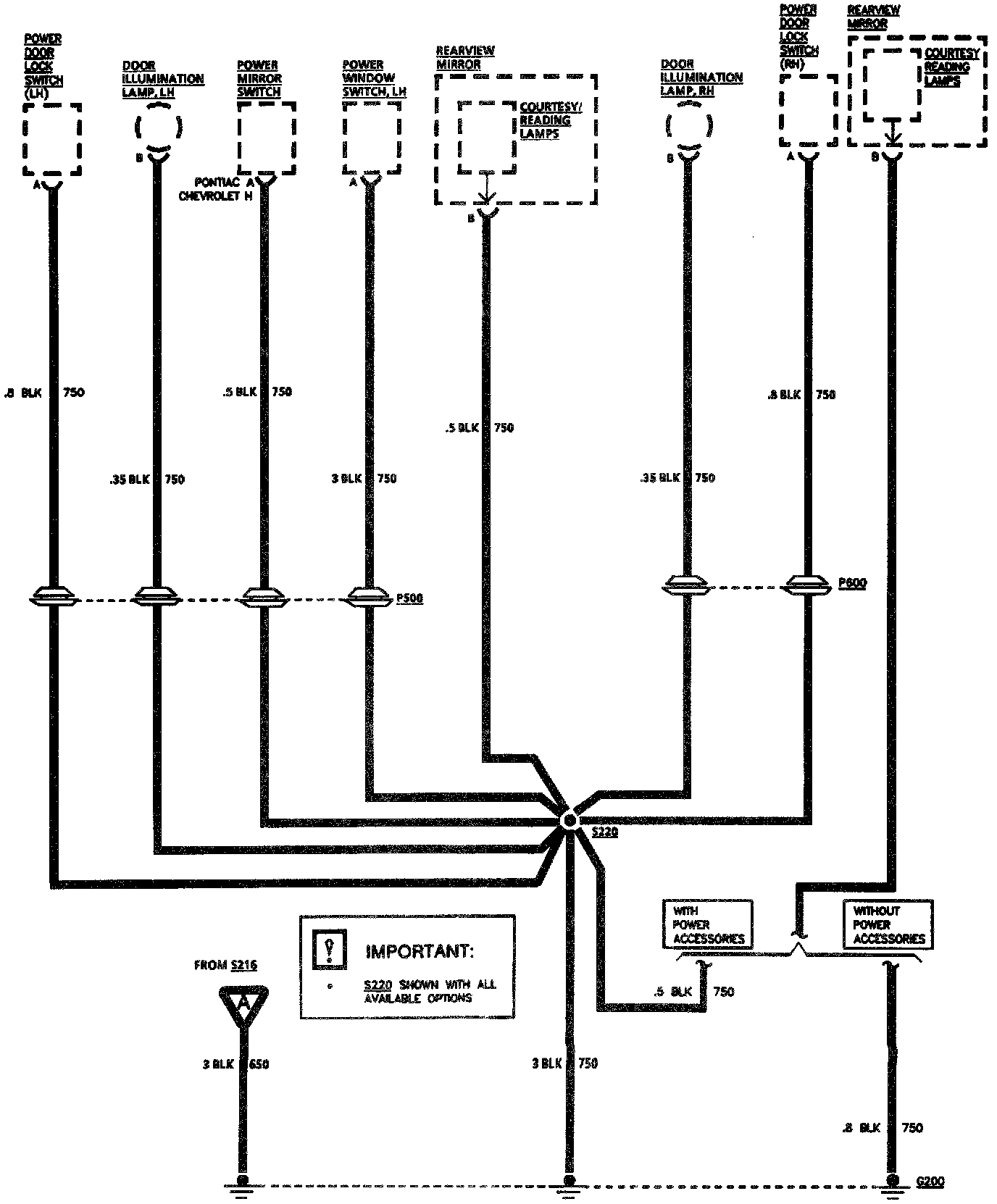

Power Doors, Locks, Mirrors And Windows:

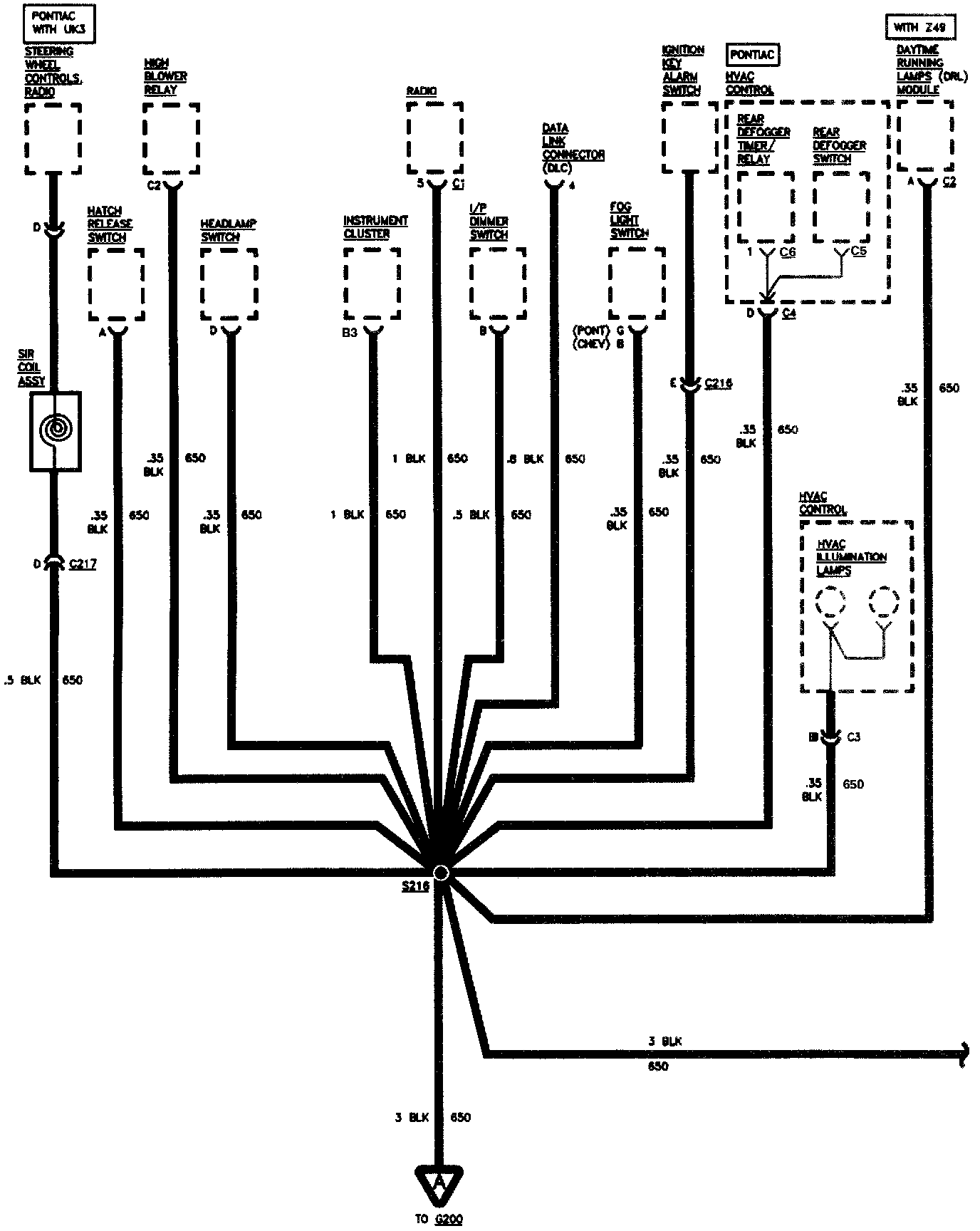

Daytime Running Lamps, HVAC Control Assembly, Light Switches, And Rear Defogger:

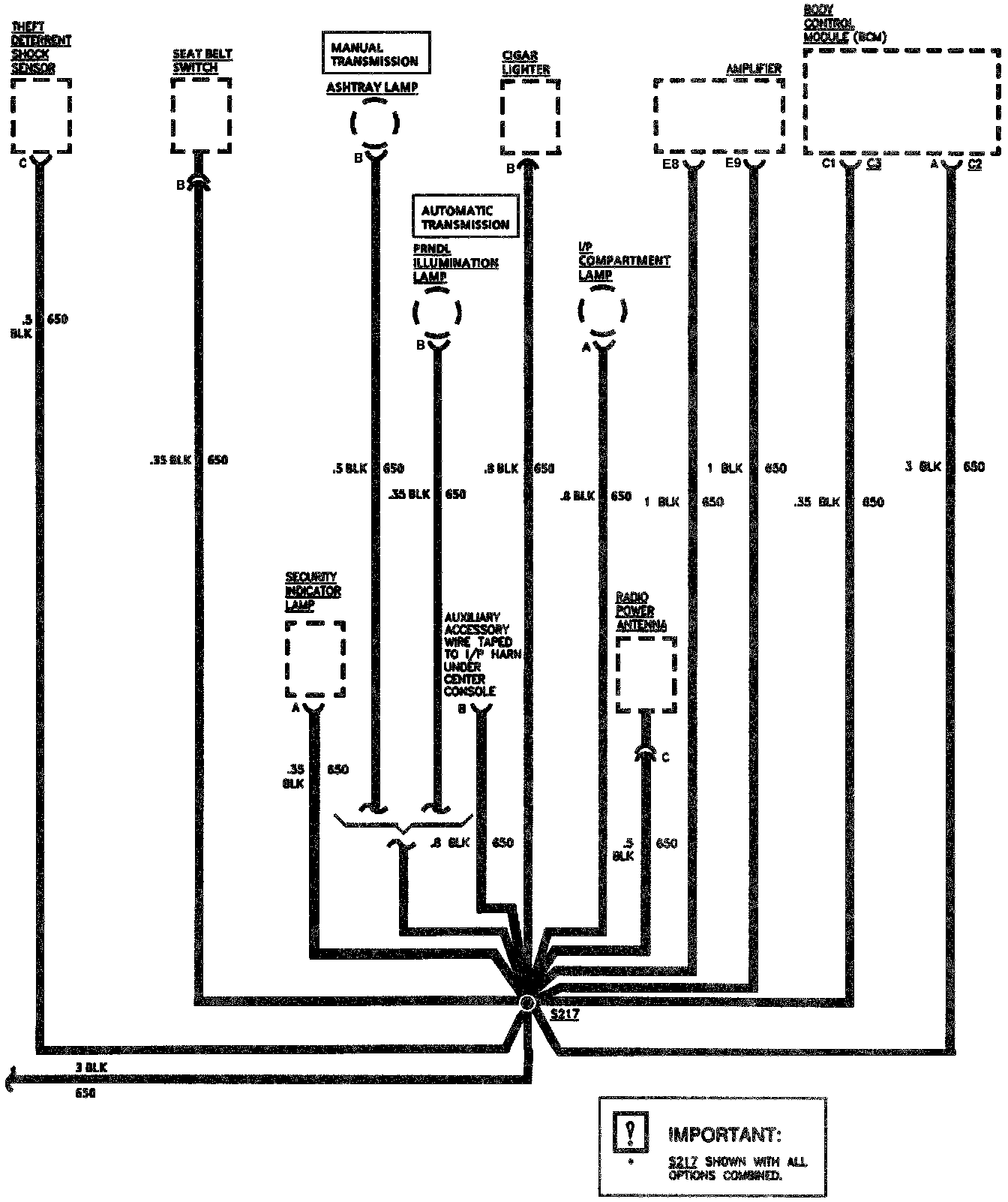

Body Control Module, Universal Theft Deterrent, Hatch Release, Radio, Instrument Panel And Console Area:
