Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

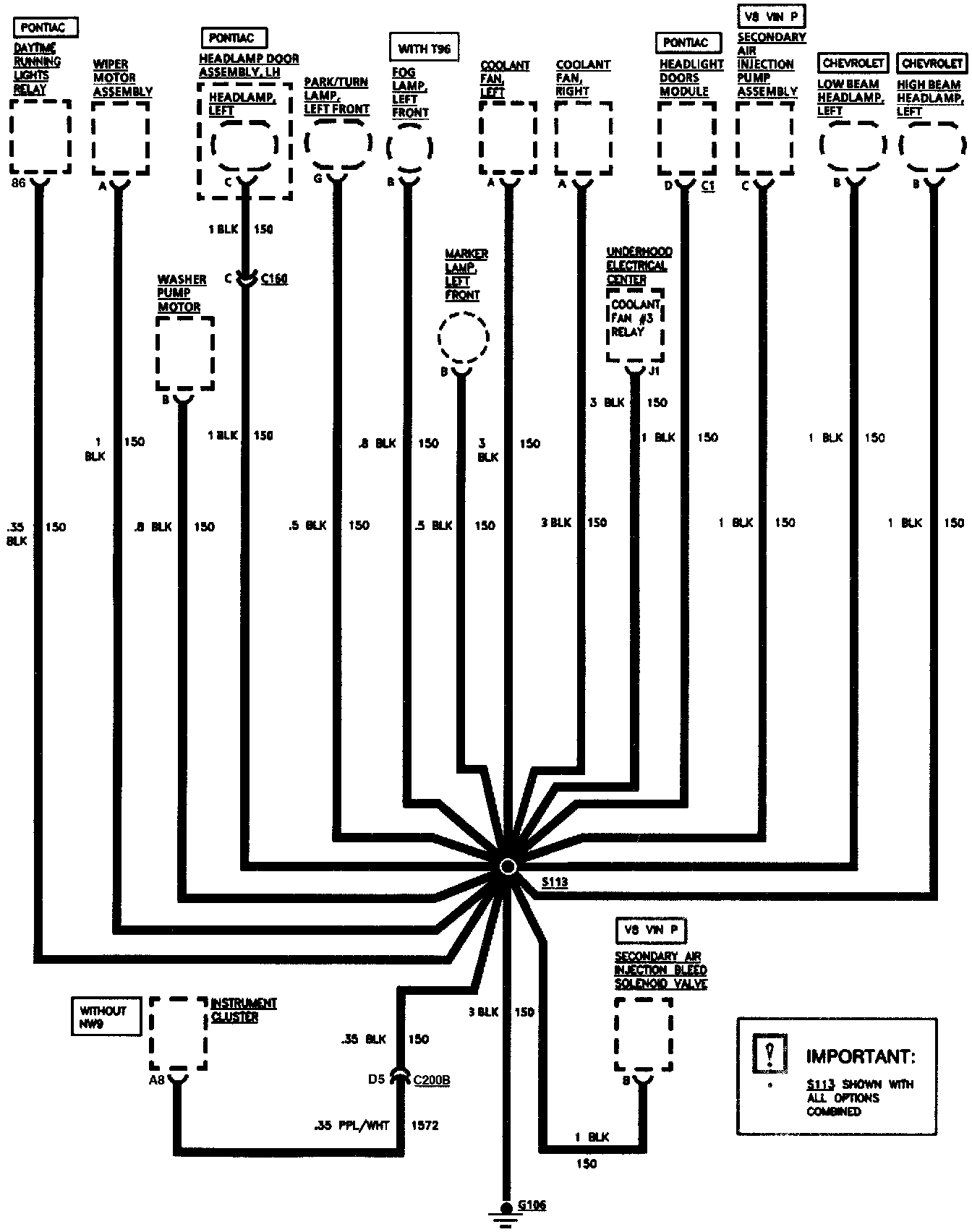

Ground Distribution
>>
G106
G106
Air Pump, Coolant Fan, Headlight Door Module, Forward Lamp, Windshield Wiper And Washer:
