Power Steering Fluid Reservoir Hose

REMOVE OR DISCONNECT

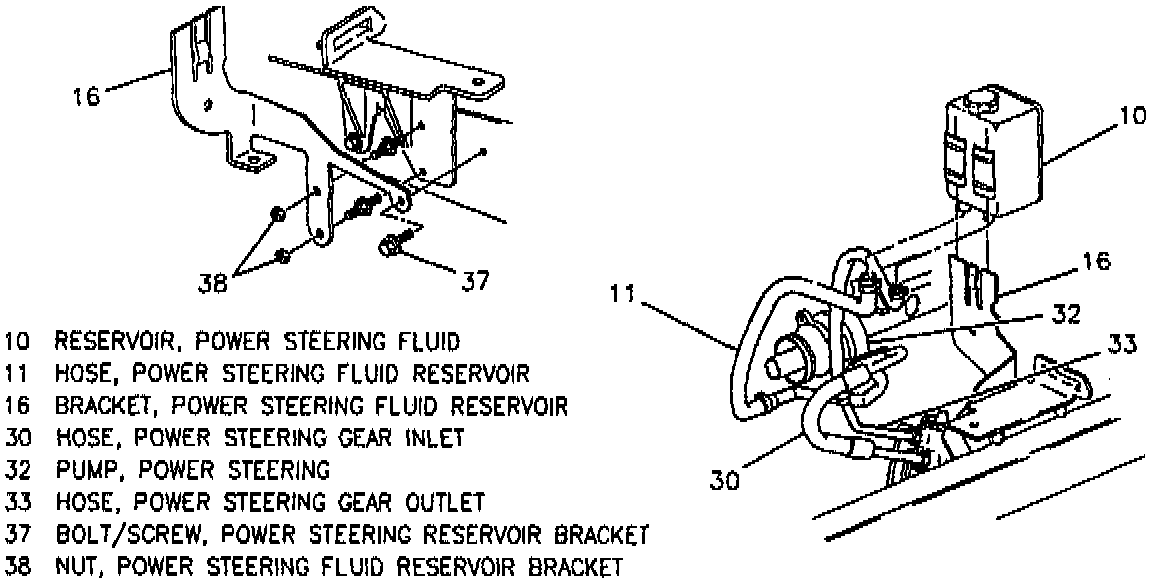

1. Reservoir hose (11) from pump (32).
2. Reservoir (10) from bracket (16).
3. Reservoir hose (11) from reservoir (10).

INSTALL OR CONNECT

NOTICE: Do not start the vehicle with any power steering gear inlet or outlet hoses disconnected. When disconnected, cap or plug all openings of components. Failure to do so could result in contamination or loss of power steering fluid and damage to the system.

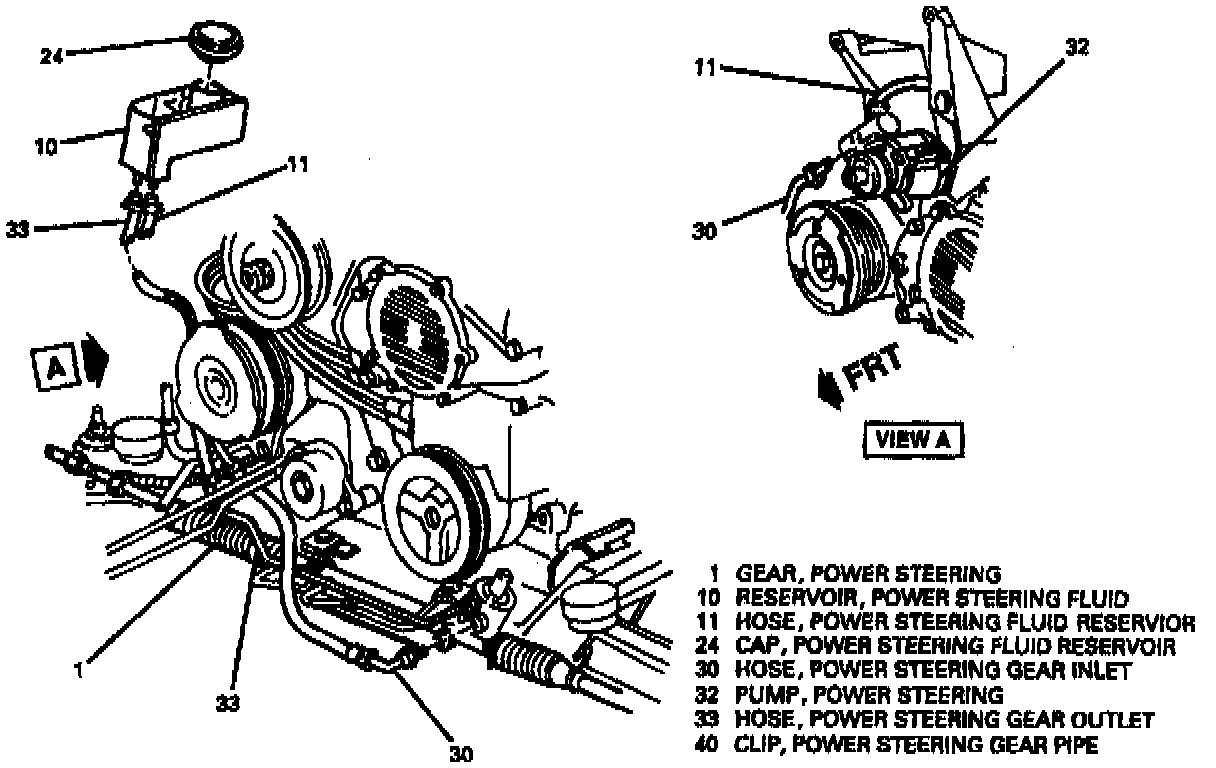

1. Reservoir hose (11) to reservoir (10) using clamp. Lubricate with power steering fluid as required.
2. Power steering fluid reservoir retainer and power steering fluid reservoir bolt/screw. Refer to "Power Steering Fluid Reservoir".
3. Reservoir hose (11) to pump (32).
4. Power steering pump bolts/screws. Refer to "Power Steering Pump".
5. Throttle body heater return hose to heater outlet hose.
6. Heater inlet and outlet hoses to water pump.
7. Generator.
8. Front air intake duct.
9. Raise and suitably support vehicle.
10. Serpentine belt.
11. Lower vehicle.
12. Refill and bleed engine coolant. .
13. Refill and bleed power steering system. Refer to "Bleeding Air from the Power Steering System".
