Fog/Driving Lamp Switch: Service and Repair

Remove or Disconnect

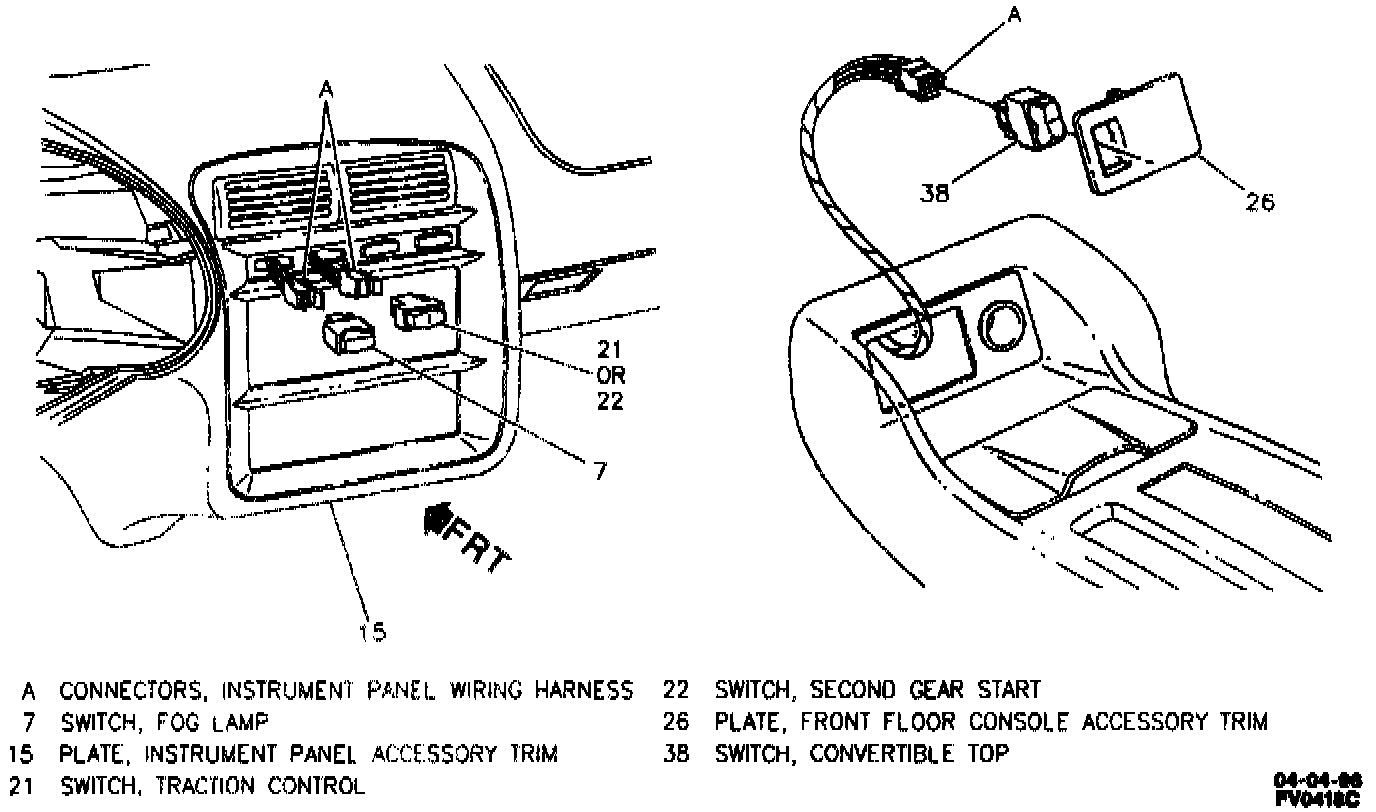

1. Unsnap the instrument panel accessory trim plate (15).
2. Electrical connector from the fog lamp switch (7).
3. Electrical connector from the traction control or second gear start switch (21 or 22), if equipped.
4. Unsnap the fog lamp switch (7) from the instrument panel accessory trim plate (15).

Install or Connect
1. Fog lamp switch (7) to the instrument panel accessory trim plate (15).
2. Electrical connector to the traction control or second gear start switch (21 or 22), if equipped.
3. Electrical connector to the fog lamp switch (7).
4. Instrument panel accessory trim plate (15).
