HUD Control Switch/Image Adjuster Switch

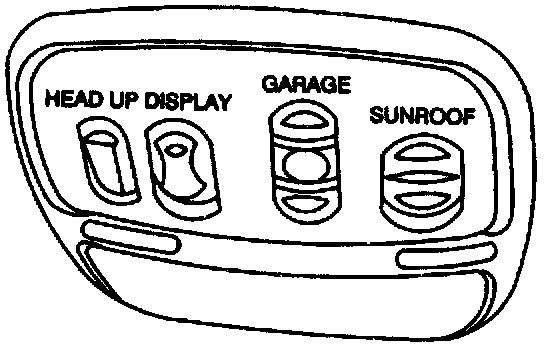

HUD Control Switch:

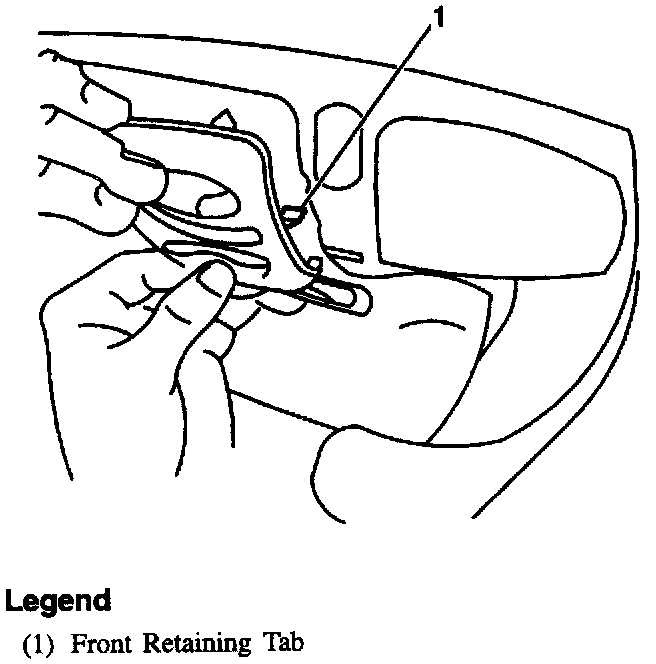

Overhead Console Door Removal (Part 2 Of 2):

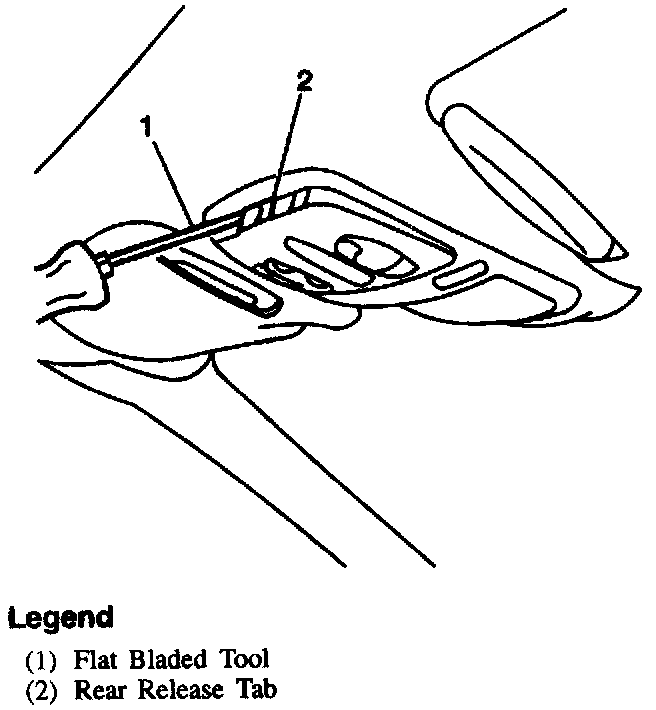

Overhead Console Door Removal (Part 1 Of 2):

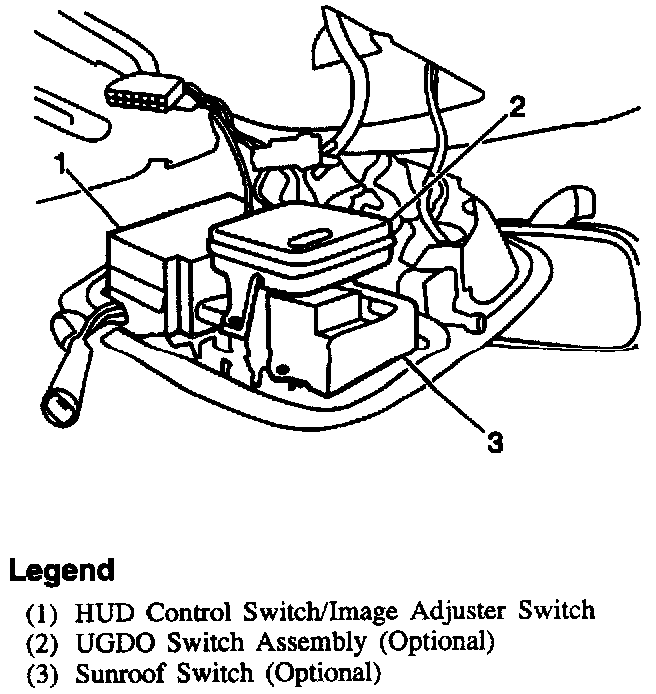

Overhead Console Component View:

REMOVE OR DISCONNECT
1. Insert flat bladed tool at rear edge of access door to disengage lock tab.
2. Disengage forward tabs from overhead console.
3. Electrical connector(s).
4. Fasteners from HUD control switch or image adjuster switch at overhead console.

INSTALL OR CONNECT
1. Fasteners to HUD control switch or image adjuster switch at overhead console.
2. Electrical connector(s)
3. Position access door, align rear tabs into overhead console.
4. Push upward engaging front tab.
