HUD Control Module

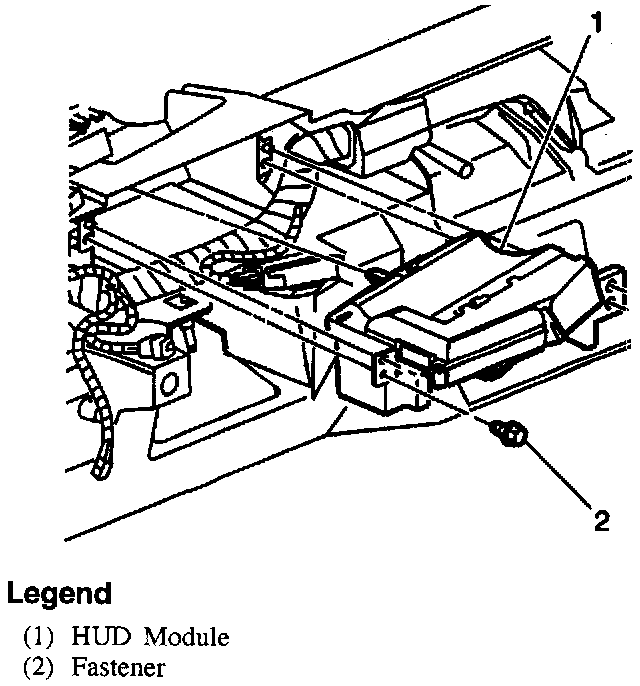

HUD Mounting:

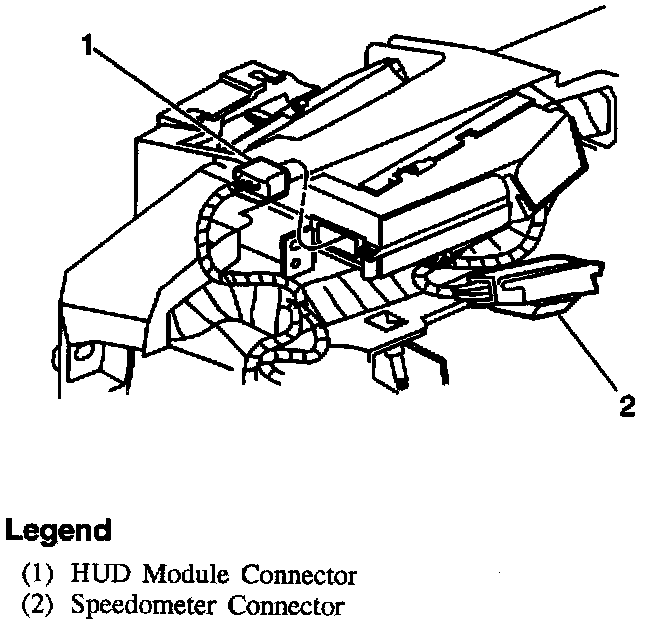

HUD Control Module Connector:

REMOVE OR DISCONNECT
1. I/P Bezel.
2. I/P Cluster.
3. Two screws from HUD module.
4. Slide HUD module out through I/P cluster opening.

INSTALL OR CONNECT
1. Slide HUD module into I/P cluster opening.
2. Two screws to HUD module.
3. I/P Cluster.
4. I/P Bezel.
