Dimmer Switch: Service and Repair

Remove or Disconnect

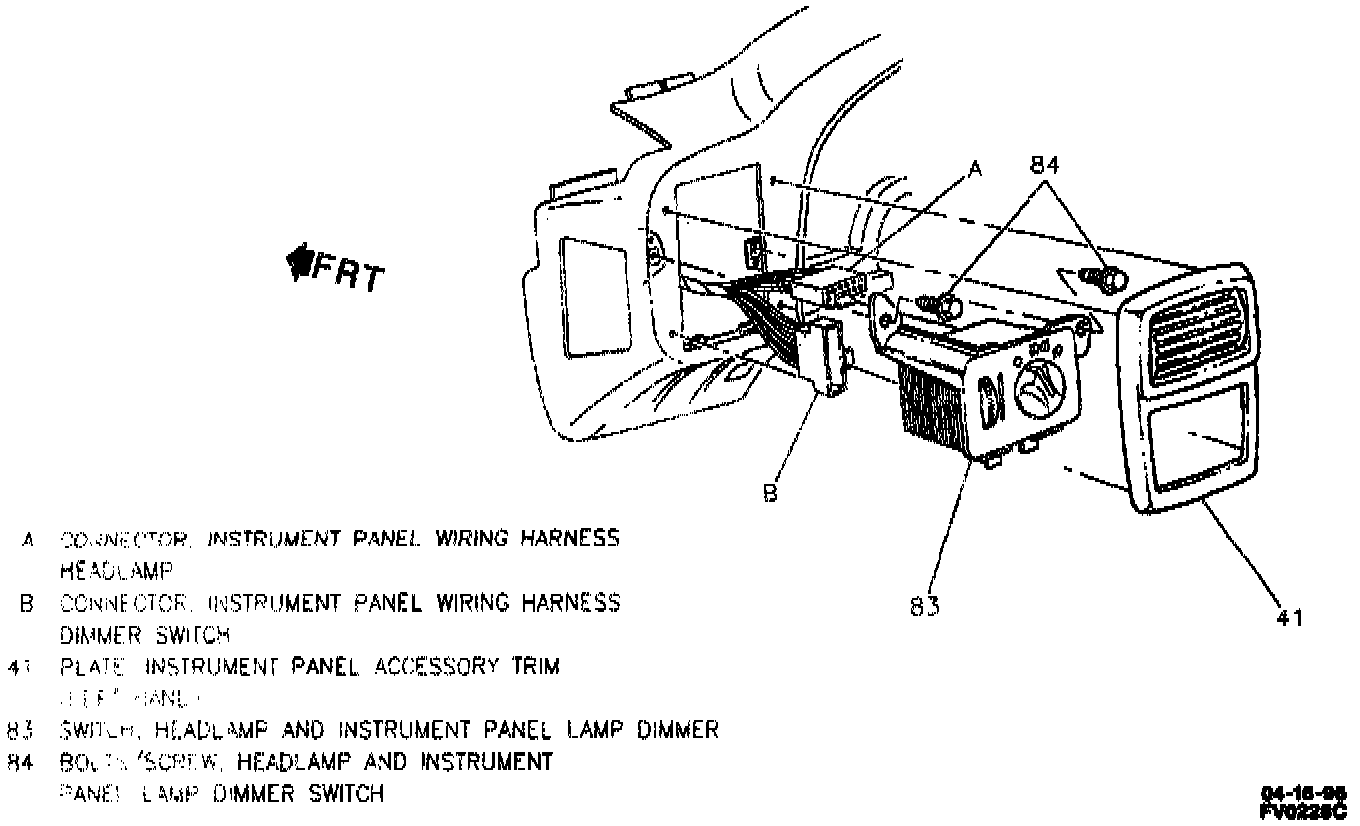

1. Unsnap the instrument panel accessory trim plate (left hand (41)
2. Headlamp in C instrument panel lamp switch bolt/screw (84).
3. Electrical connectors from headlamp and instrument panel lamp dimmer switch (83).

Install or Connect

NOTICE: When installing switch, do not put pressure on switch knob or dimmer thumbwheel. Failure to follow these instructions may result in damage to the switch.

1. Electrical connectors to headlamp and instrument panel lamp dimmer switch (83).
2. Headlamp and instrument panel lamp switch bolts/screws (84)
Tighten
^ Headlamp and instrument panel lamp dimmer switch bolts/screws to 1.9 Nm (17 lb in).
3. Instrument pane] accessory trim plate left hand) (41).
