Chevrolet
>>
1997
>>
Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Diagrams
>>
With HD6/HT6 Compressor
With HD6/HT6 Compressor

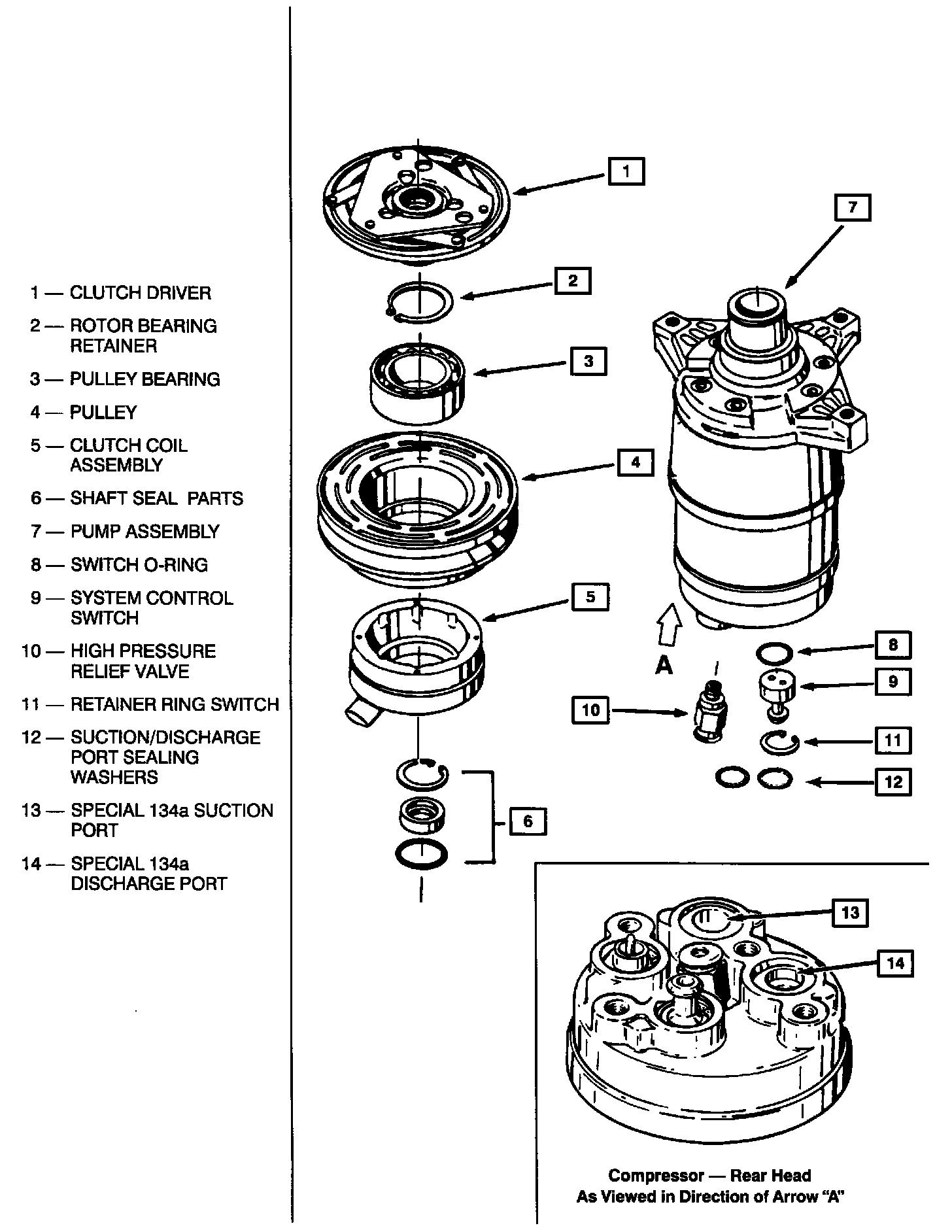

Compressor Components - Disassembly:
