Air Door Cable: Service and Repair

Remove or Disconnect

1. Right instrument panel insulator.

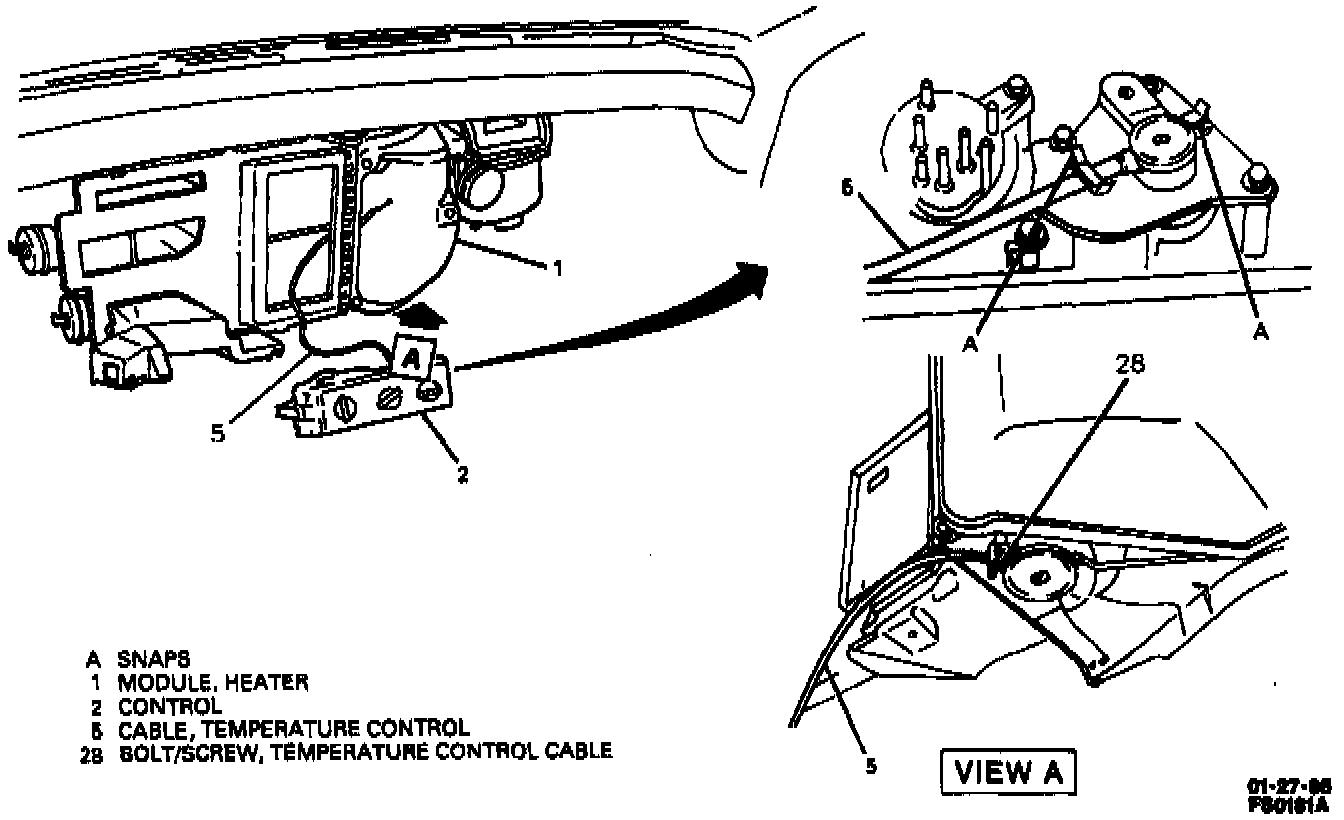

2. Temperature control cable (5) at heater module (1).
^ Remove temperature control cable bolt/screw (28).
3. Accessory trim plate.
^ Pull control cable trim plate rearward and off instrument panel lower trim pad.
4. Heater and air conditioning control bolts/screws (26).
5. Control (2).
^ Pull control (2) out far enough to reach temperature control cable connection.
6. Temperature control cable (5).
^ While releasing temperature control cable clips from control (2), pry temperature control cable with small screwdriver from control (2).

Install or Connect

1. Temperature control cable (5) to control (2).
A. Slip temperature control cable into position over lever arm. Align shaft with temperature control cable slot.
B. Press temperature control cable clip into slot in control (2). Make sure all three clips are in place.
2. Control (2).
3. Heater and air conditioning control bolts/screws (26).

Tighten

^ Heater and air conditioning control bolts/screws (26) to 1.9 N.m (17 lb. in.).
4. Accessory trim plate.
^ Hold accessory trim plate in position and press it forward to engage four retaining clips.
5. Temperature control cable (5) at heater module (1) with temperature control cable bolt/screw (28).

Tighten

^ Temperature control cable bolt/screw (28) to 1.9 N.m (17 lb. in.).
6. Right instrument panel insulator.
