Oil Pump: Service and Repair

REMOVAL PROCEDURE





1. Remove the engine front cover.

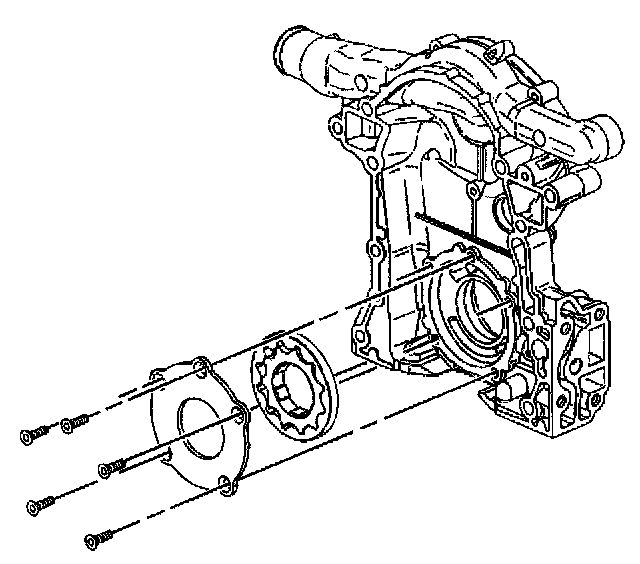

2. Remove the oil filter adapter.
3. Remove the pressure relief valve and spring.
4. Remove the oil pump cover attaching screws.
5. Remove the oil pump cover.
6. Remove the gears.

INSTALLATION PROCEDURE





1. Lubricate the gears with petroleum jelly.

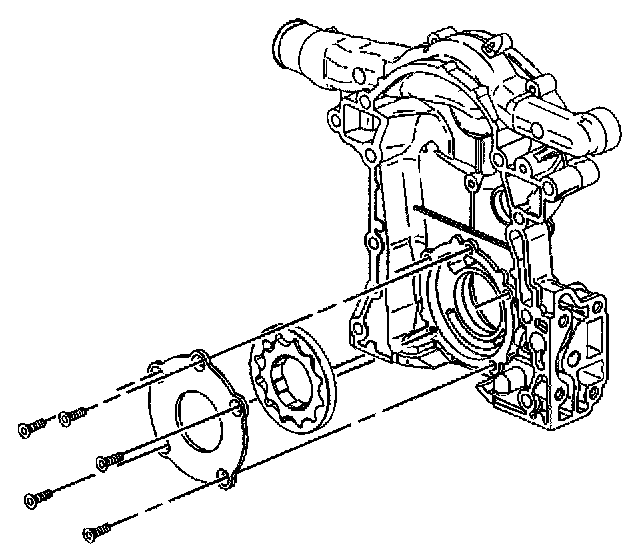

2. Install the gears.
3. Pack the cavity with petroleum jelly.
4. Install the oil pump cover.
5. Install the oil cover screws.

Tighten
^ Tighten the screws to 11 Nm (98 inch lbs.).
