Radiator Baffles and Deflector

RADIATOR AIR LOWER BAFFLE
Removal
1. Radiator air lower baffle bolt/screw (52).
2. Radiator air lower baffle retainers (50).
3. Radiator air lower baffle (49).

Installation
1. Radiator air lower baffle (49).
2. Radiator air lower baffle retainers (50).
3. Radiator air lower baffle bolt/screw (52). Tighten radiator air lower baffle bolt/screw (52) to 10 Nm (89 inch lbs.).

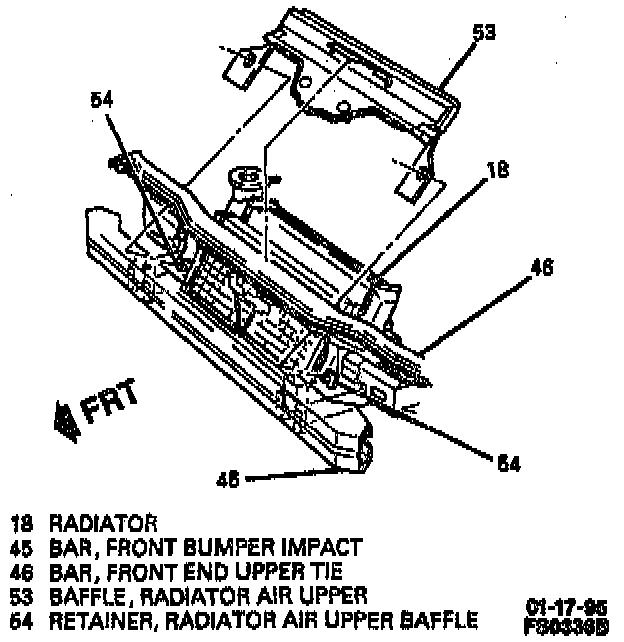

RADIATOR AIR UPPER BAFFLE
Removal
1. Radiator air upper baffle retainers (54).
2. Radiator air upper baffle (53) from radiator (18).

Installation
1. Radiator air upper baffle (53) to radiator (18).
2. Radiator air upper baffle retainers (54).
