Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Wiring Diagram
>>
W/Traction Control
W/Traction Control

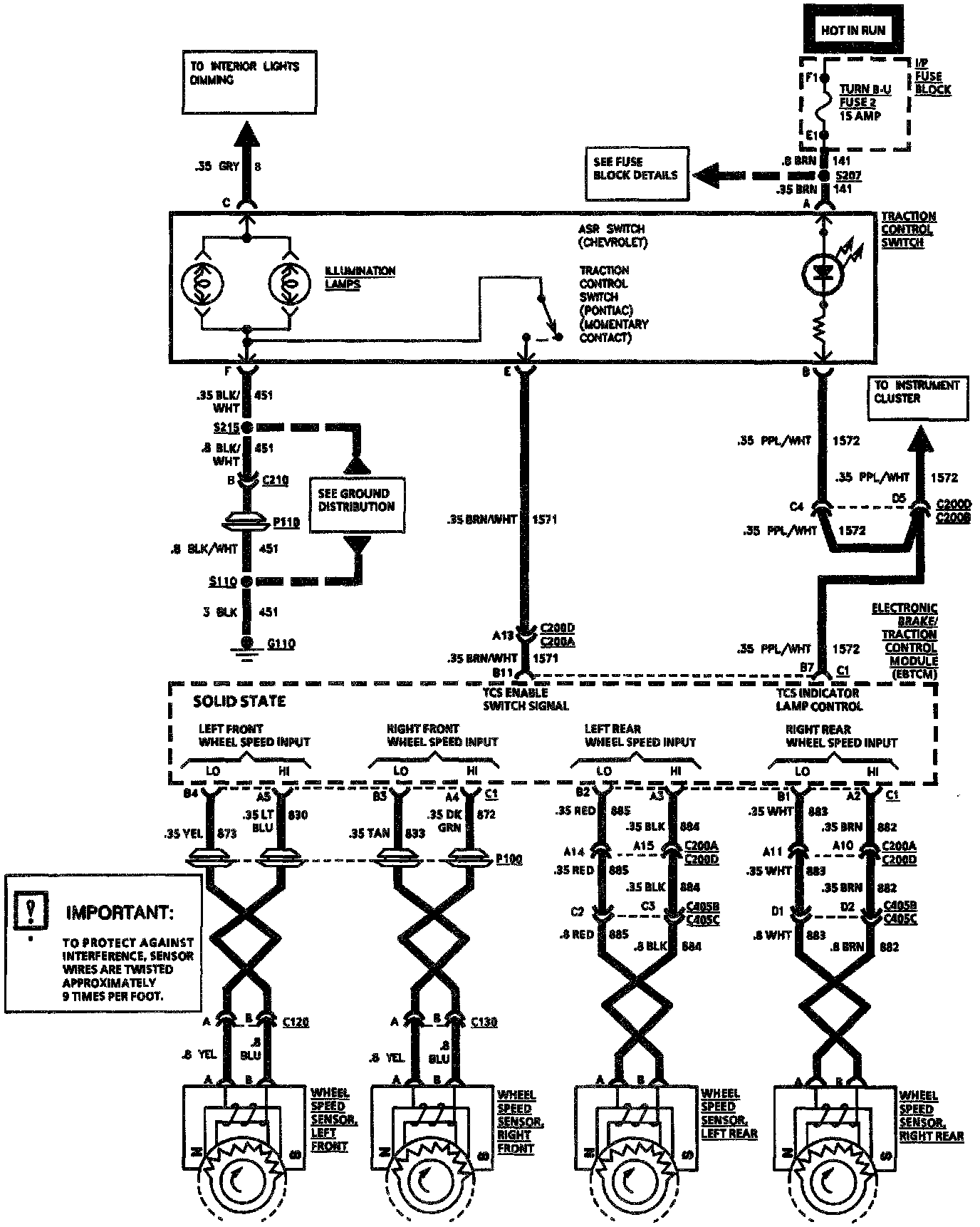

Antilock Brakes (Part 1 Of 2):

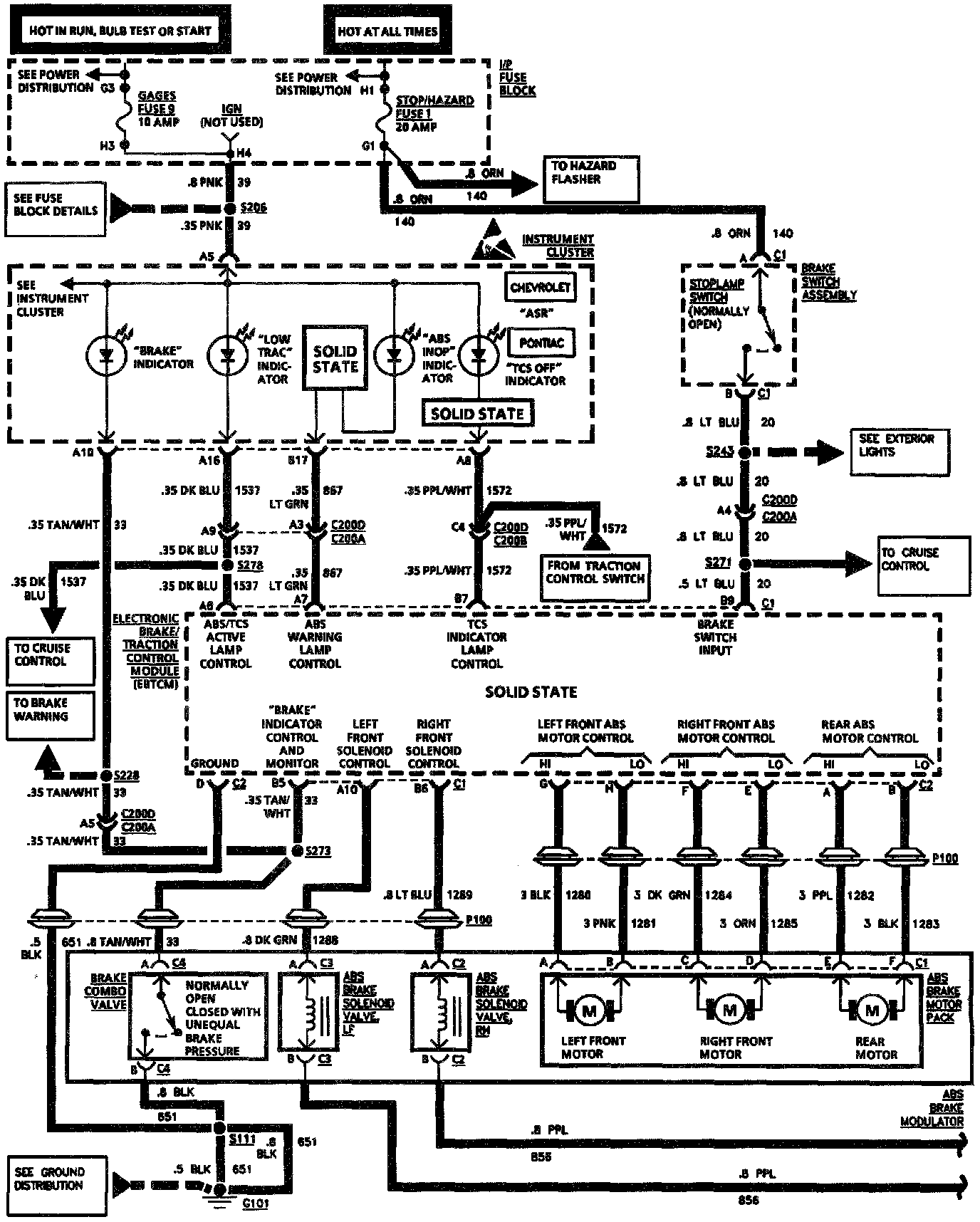

Antilock Brakes (Part 2 Of 2):

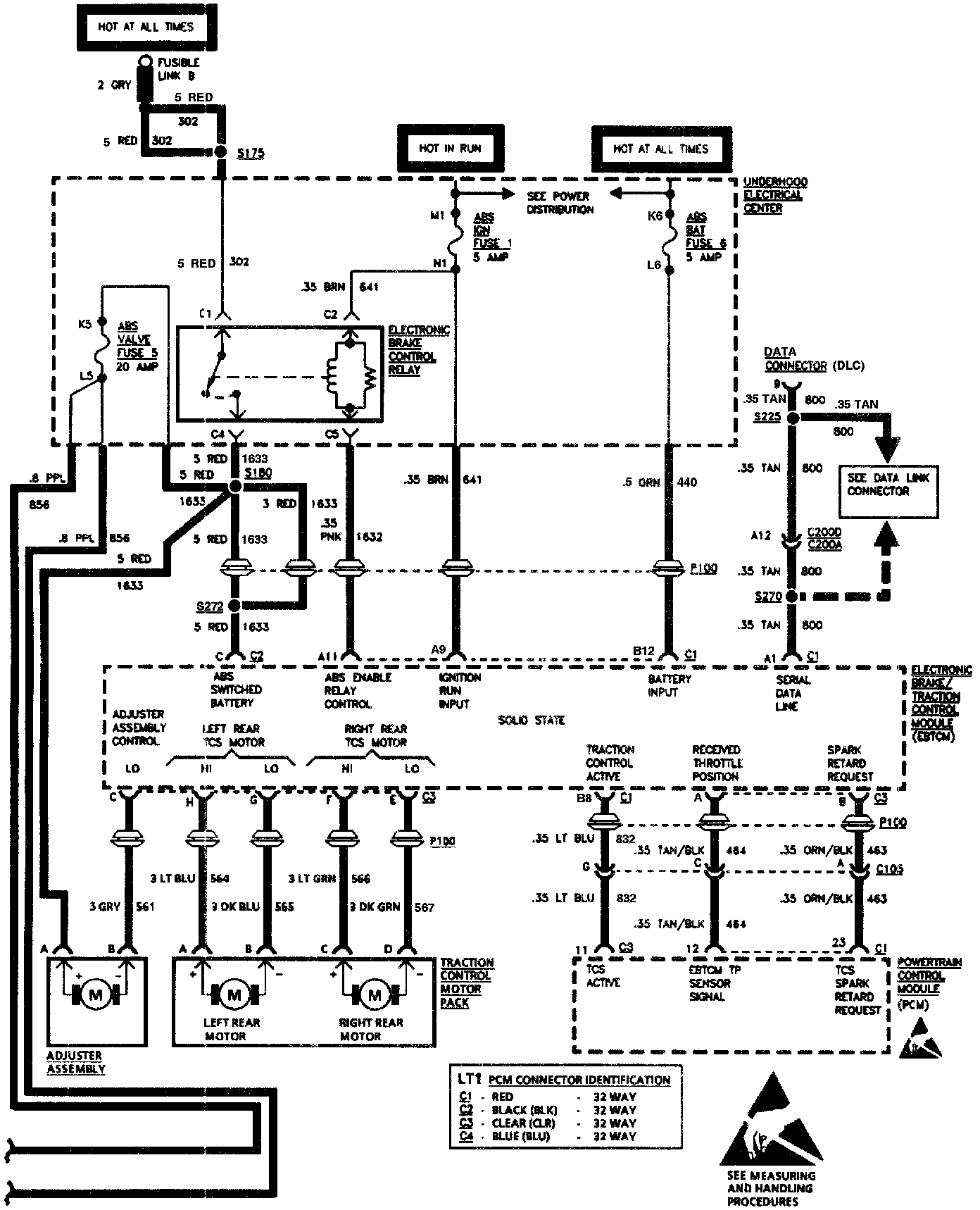

Antilock Brakes:
