Rear Wheel Cylinder Repair

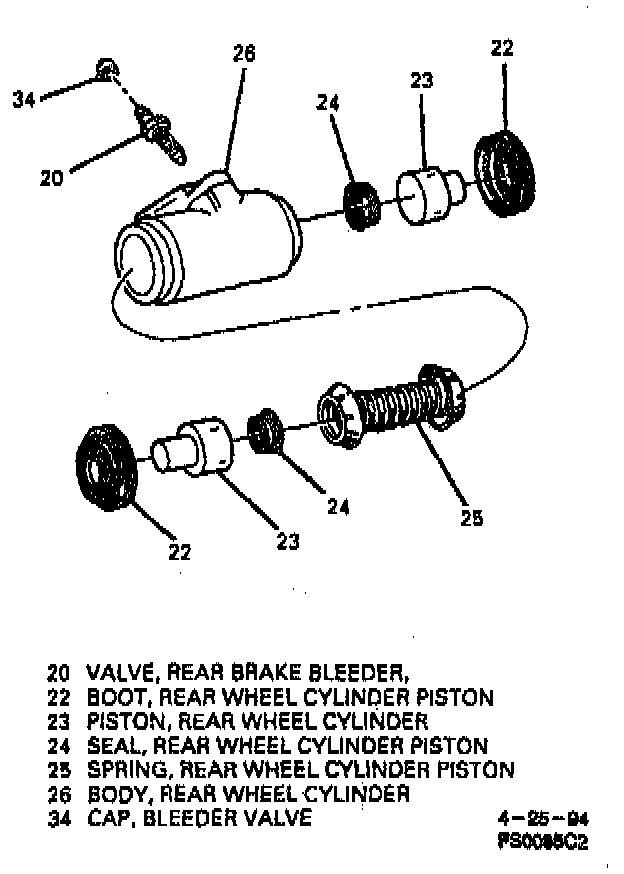

Rear Wheel Cylinder Components:

DISASSEMBLE
1. Wheel cylinder from vehicle. Refer to Wheel Cylinder Replacement.
2. Wheel cylinder piston boots (22).
3. Wheel cylinder pistons (23) and piston seals (24).
4. Wheel cylinder piston spring (25).
5. Bleeder valve cap (34).
6. Bleeder valve (20) from wheel cylinder body (26). Inspect Wheel cylinder bore for scoring, nicks, corrosion and wear.

CLEAN
1. All parts in clean denatured alcohol.
2. Dry with unlubricated compressed air.
3. Lubricate new piston seals (24) with clean brake fluid.

ASSEMBLE
1. Brake bleeder valve (20). Tighten Brake bleeder valve (20) to 6 Nm (53 inch lbs.).
2. Bleeder valve cap (34).
3. Wheel cylinder piston spring (25).
4. Piston seals (24), pistons (23) and piston boots (22).
5. Wheel cylinder to vehicle. Refer to Wheel Cylinder Replacement.
