Brake Line Locations

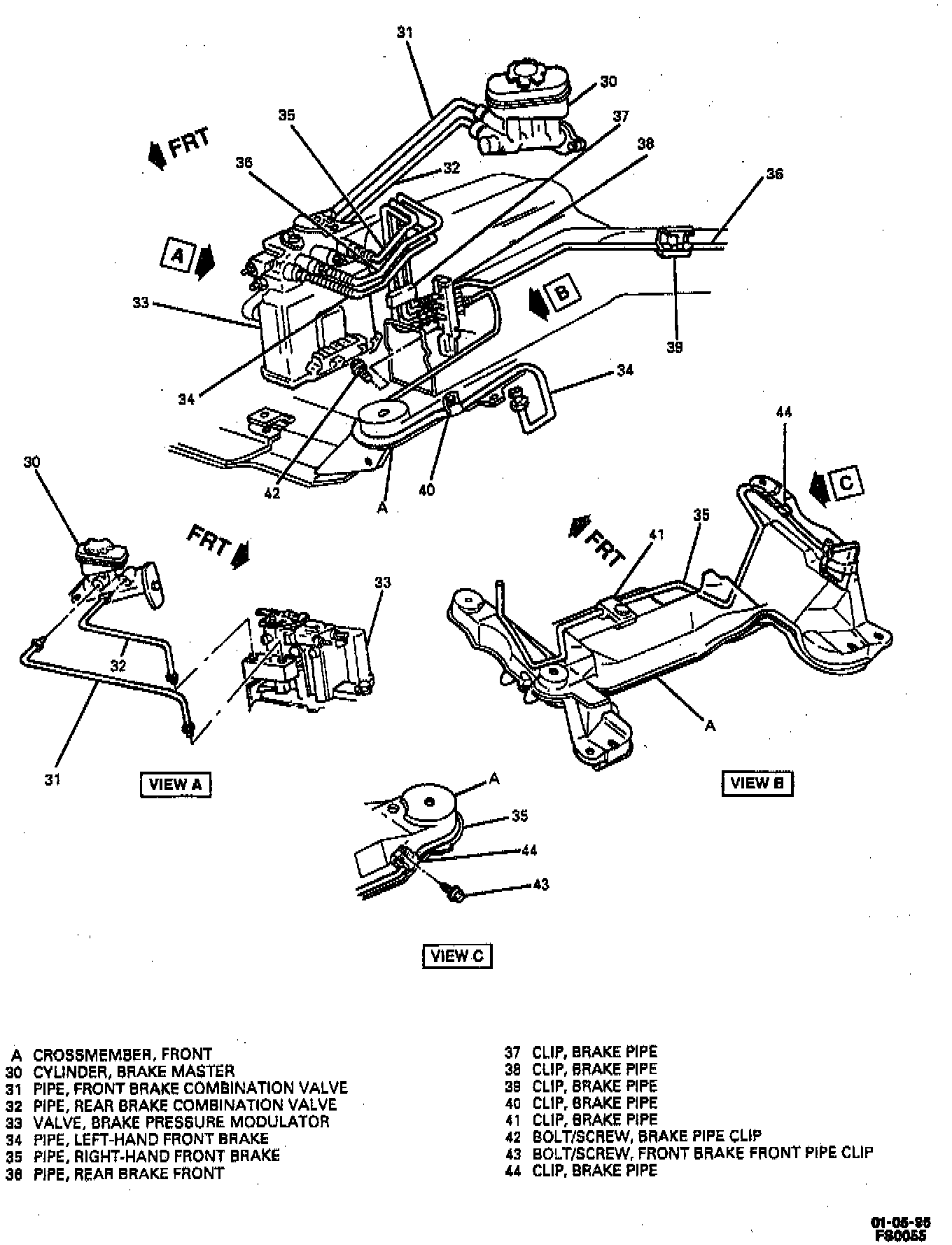

Routing Front Brake Pipe (Without Traction Control):

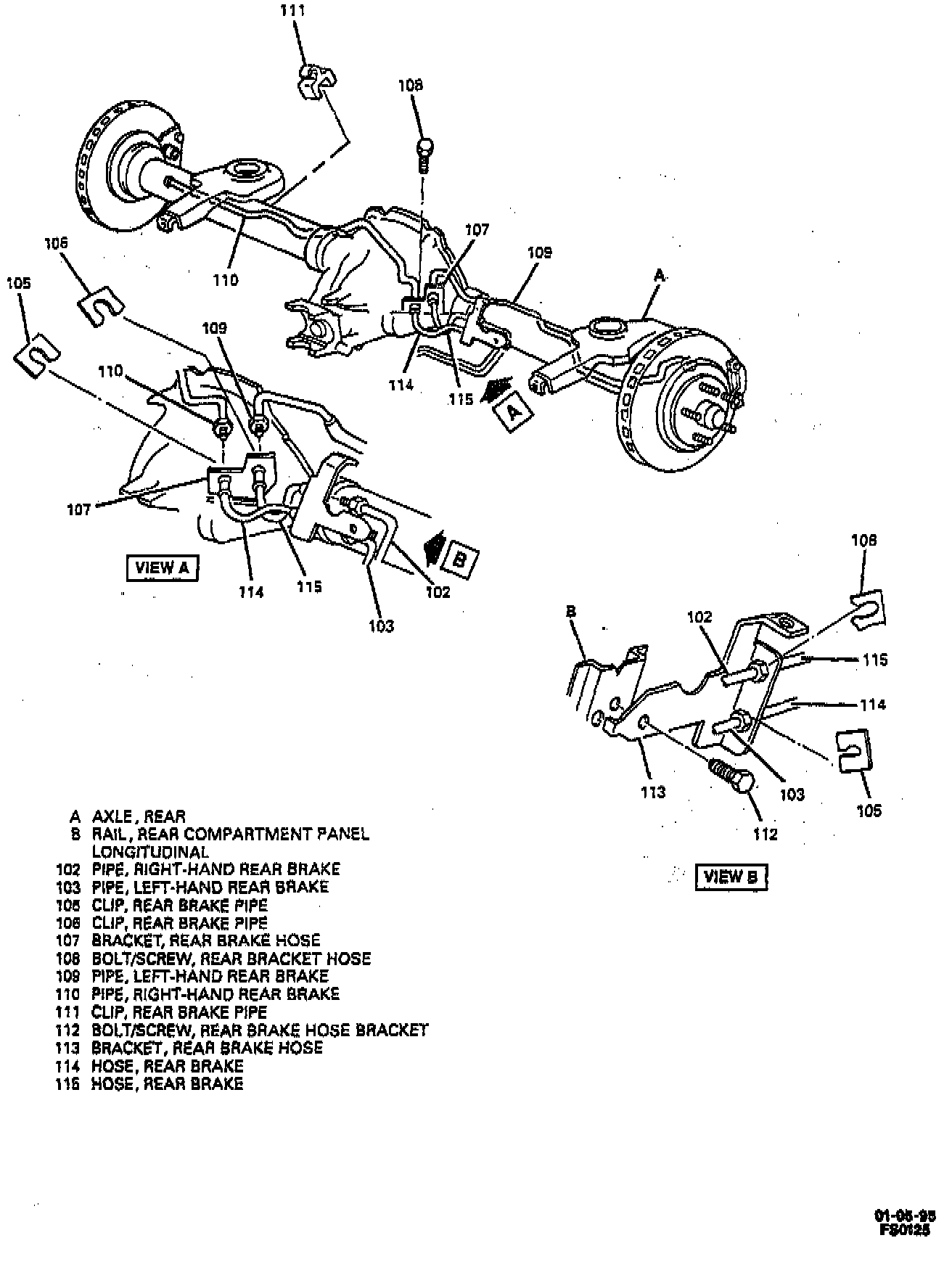

Routing Rear Brake Pipes And Hoses (Without Traction Control):

Routing Underbody Rear Brake Front Pipes (Without Traction Control):

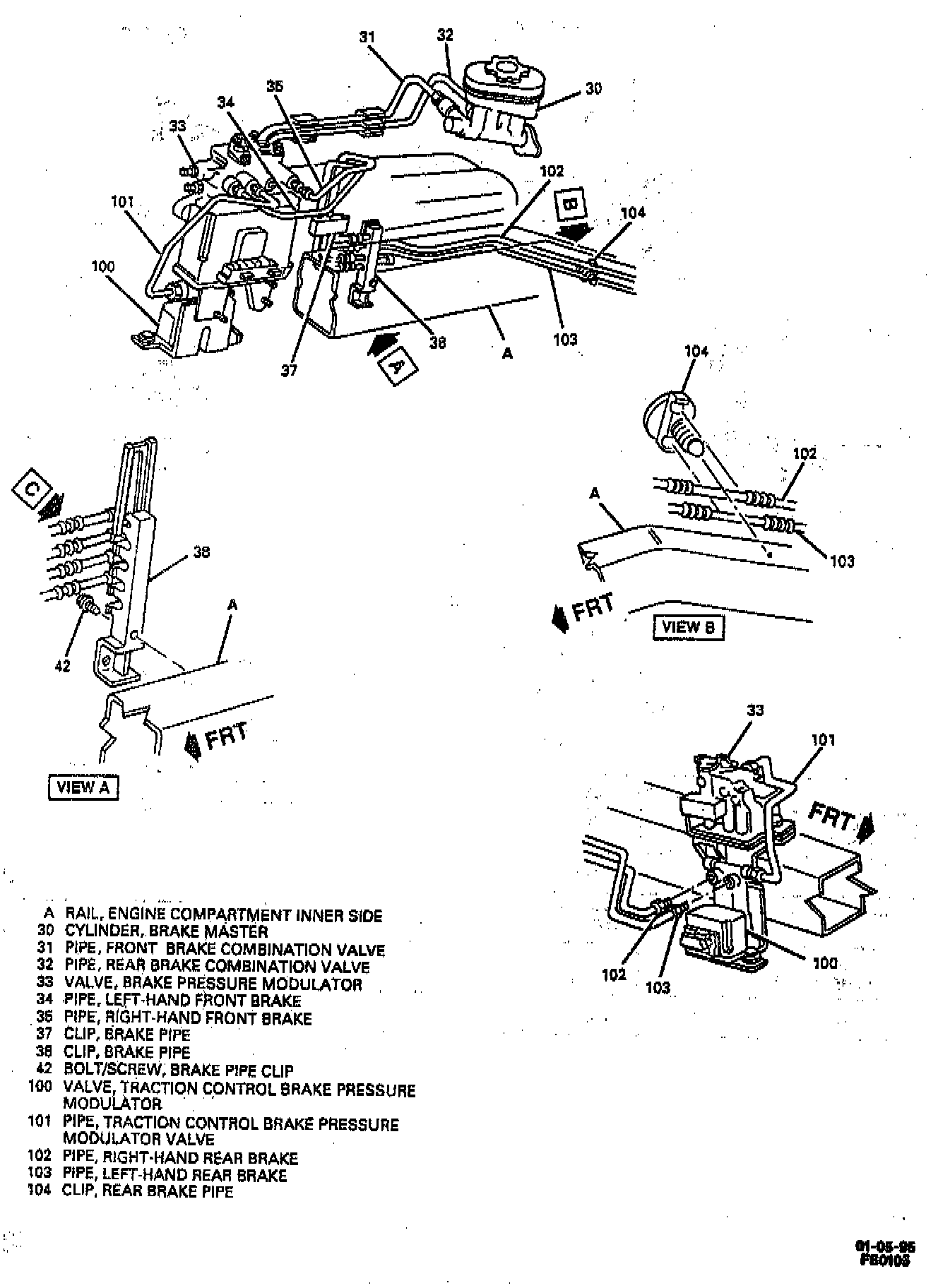

Routing Front Brake Pipes (With Traction Control):

Front Brake Pipe Specifications (With Traction Control):

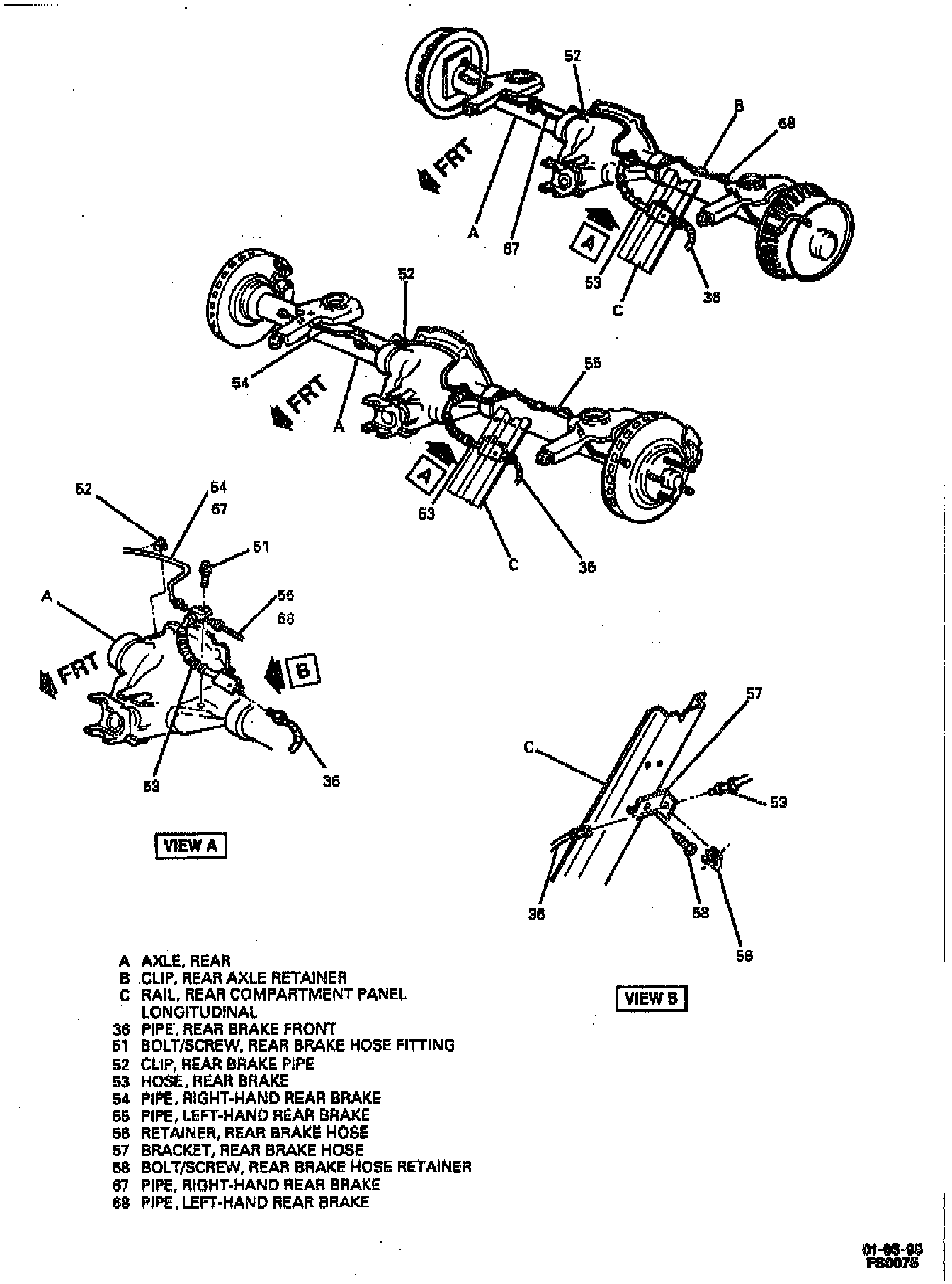

Routing Rear Brake Pipes And Hoses (With Traction Control):

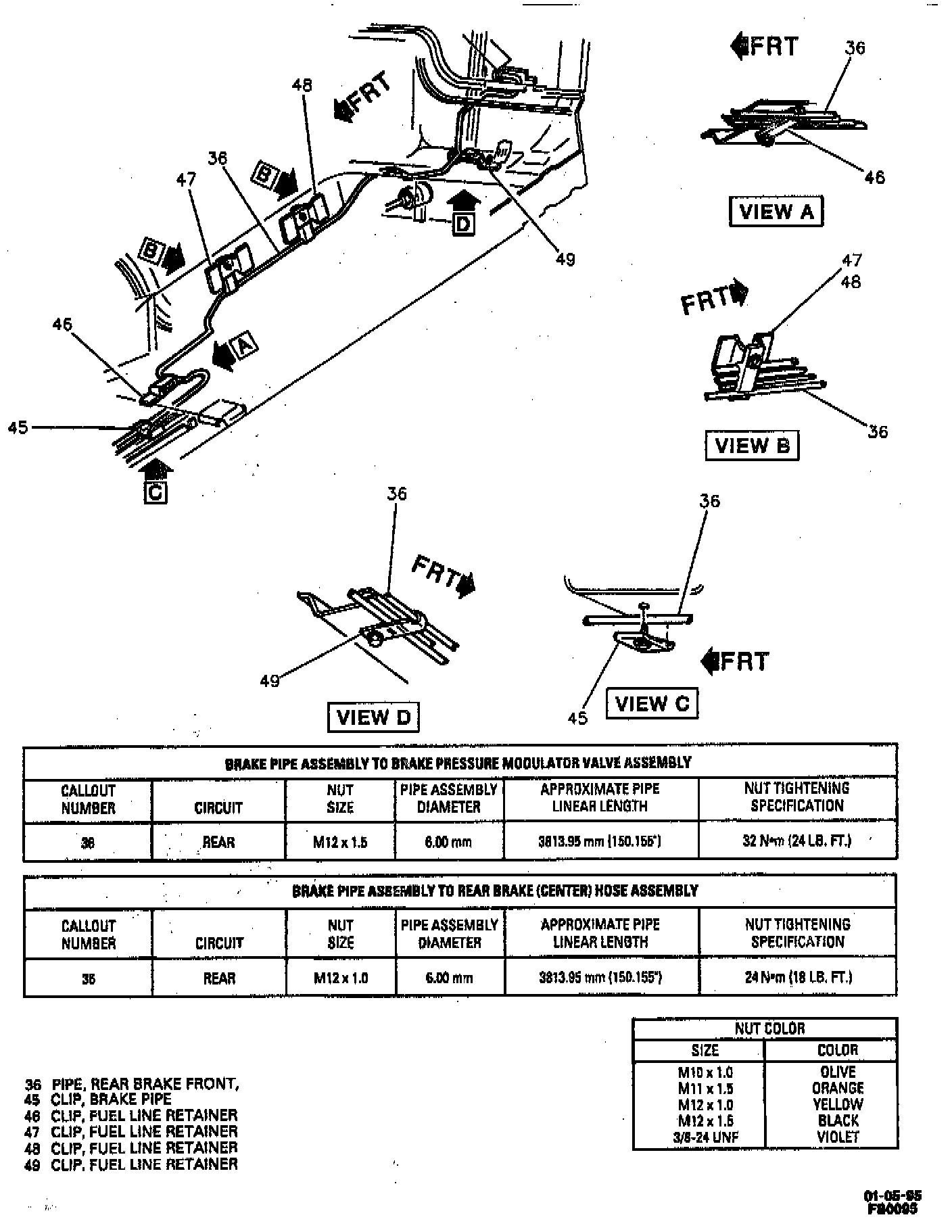

Routing Underbody Rear Brake Front Pipes (With Traction Control):
