Rear Brake Caliper Mounting Plate

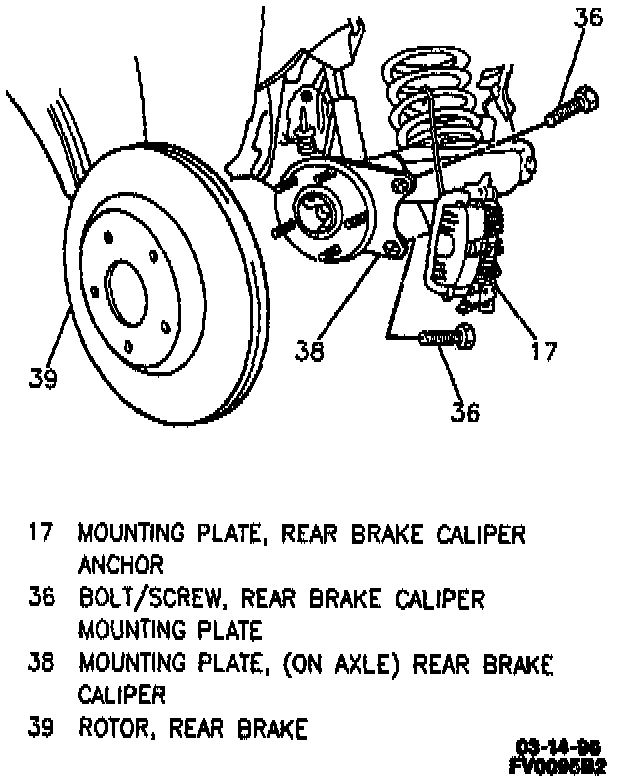

Rear Brake Rotor And Mounting Plate:

REMOVE OR DISCONNECT
1. Caliper. Remove caliper mounting plate (17) only if it is damaged or if rotor (39) is being removed for refinishing or other service operations.
2. Two rear brake caliper bolts/screws (36). Discard rear brake caliper bolts/screws (36).
3. Caliper mounting plate (17) from caliper mounting plate (on axle) (38).

INSTALL OR CONNECT
1. Caliper mounting plate (17) to caliper mounting plate (on axle) (38).
2. Two new rear brake caliper bolts/screws (36). Tighten Brake caliper mounting plate bolts/screws (36) to 100 Nm (74 ft. lbs.). Check torque on both rear brake caliper bolts/screws (36) immediately.
3. Caliper.
