Traction Control Switch: Service and Repair

Remove or Disconnect

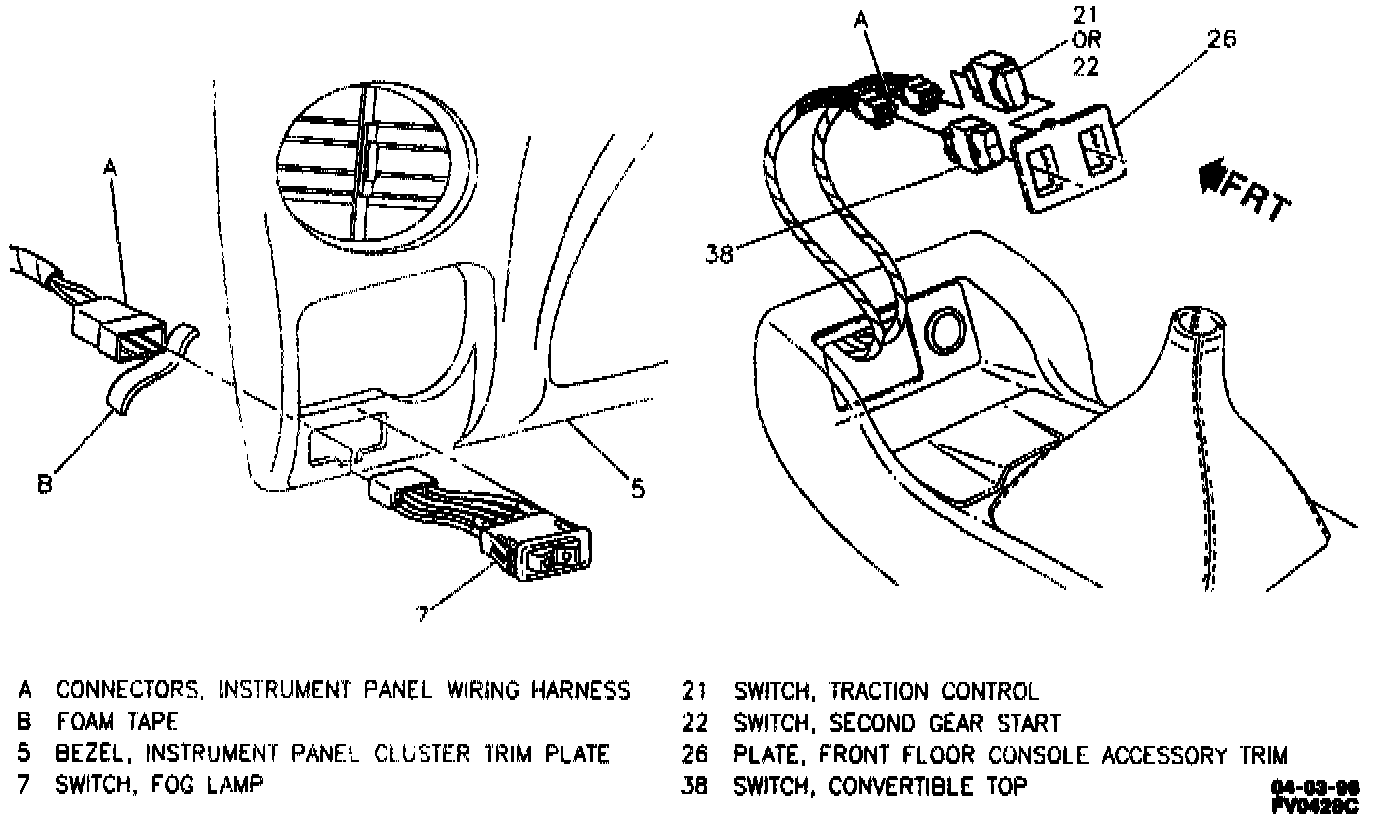

1. Unsnap the instrument panel accessory trim plate (15).
2. Electrical connector from the traction control switch (21).
3. Electrical connector from the fog lamp switch (7), if equipped.
4. Unsnap the traction control switch (21) from the instrument panel accessory trim plate (15).

Install or Connect
1. Traction control switch (21) to the instrument panel accessory trim plate (15).
2. Electrical connector to the fog lamp switch (7), if equipped.
3. Electrical connector to the second gear start switch (22).
4. Instrument panel accessory trim plate (15).
