Convertible Top - Revised Inoperative Diagnostic Chart
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 63-81-36
Date: November, 1996
SERVICE MANUAL UPDATE
Subject:

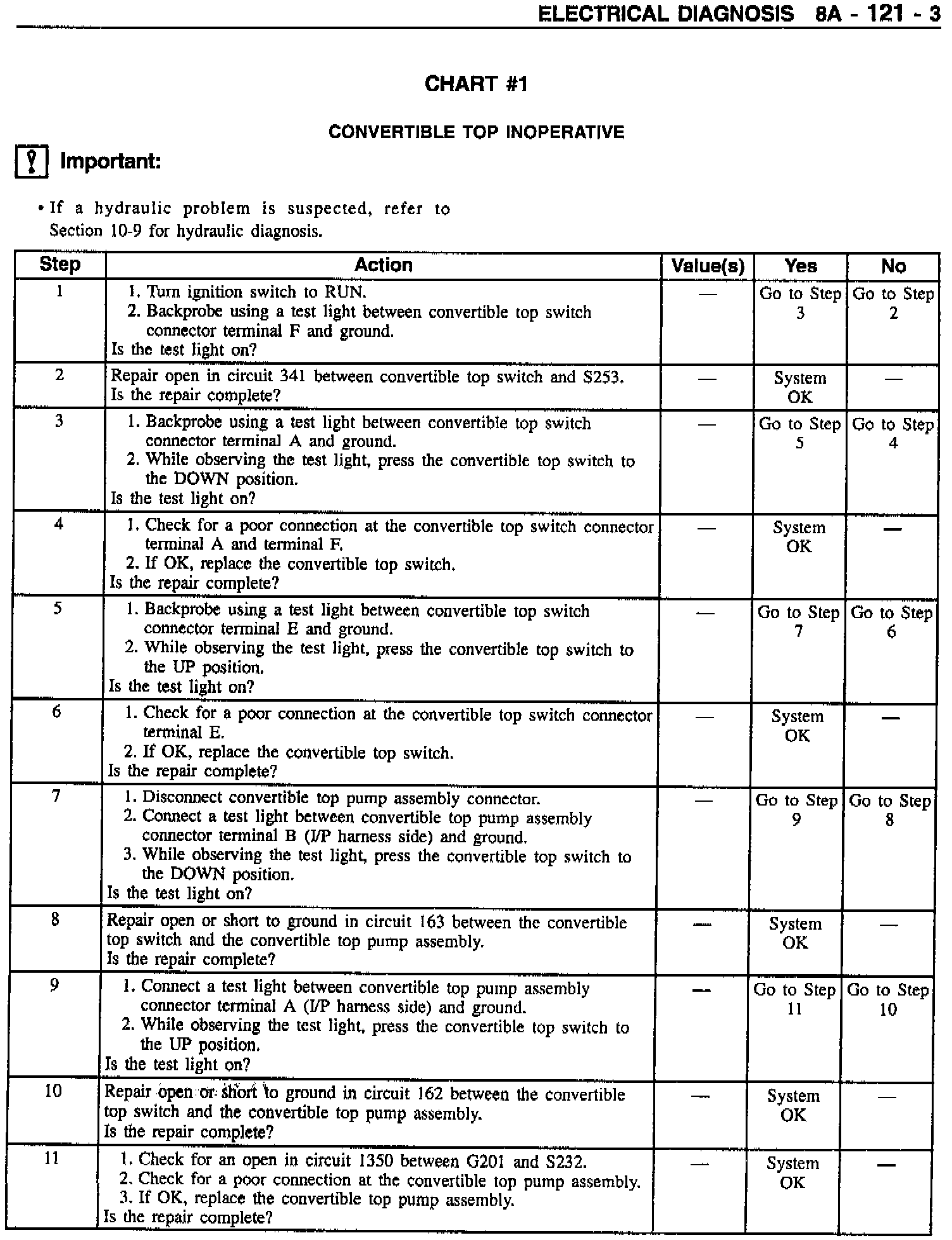

Section 8A-121 - Revised Diagnostic Chart # 1 - Convertible Top Inoperative
Models:
1997 Chevrolet Camaro
1997 Pontiac Firebird
This bulletin is being issued to revise the diagnostic Chart # 1 (Convertible Top Inoperative) on page 8A-121-3 of the 1997 Camaro/Firebird Service Manual (GMP/97-F-1).
Please use image to replace the existing chart in the affected Service Manuals.
