Transmission Code

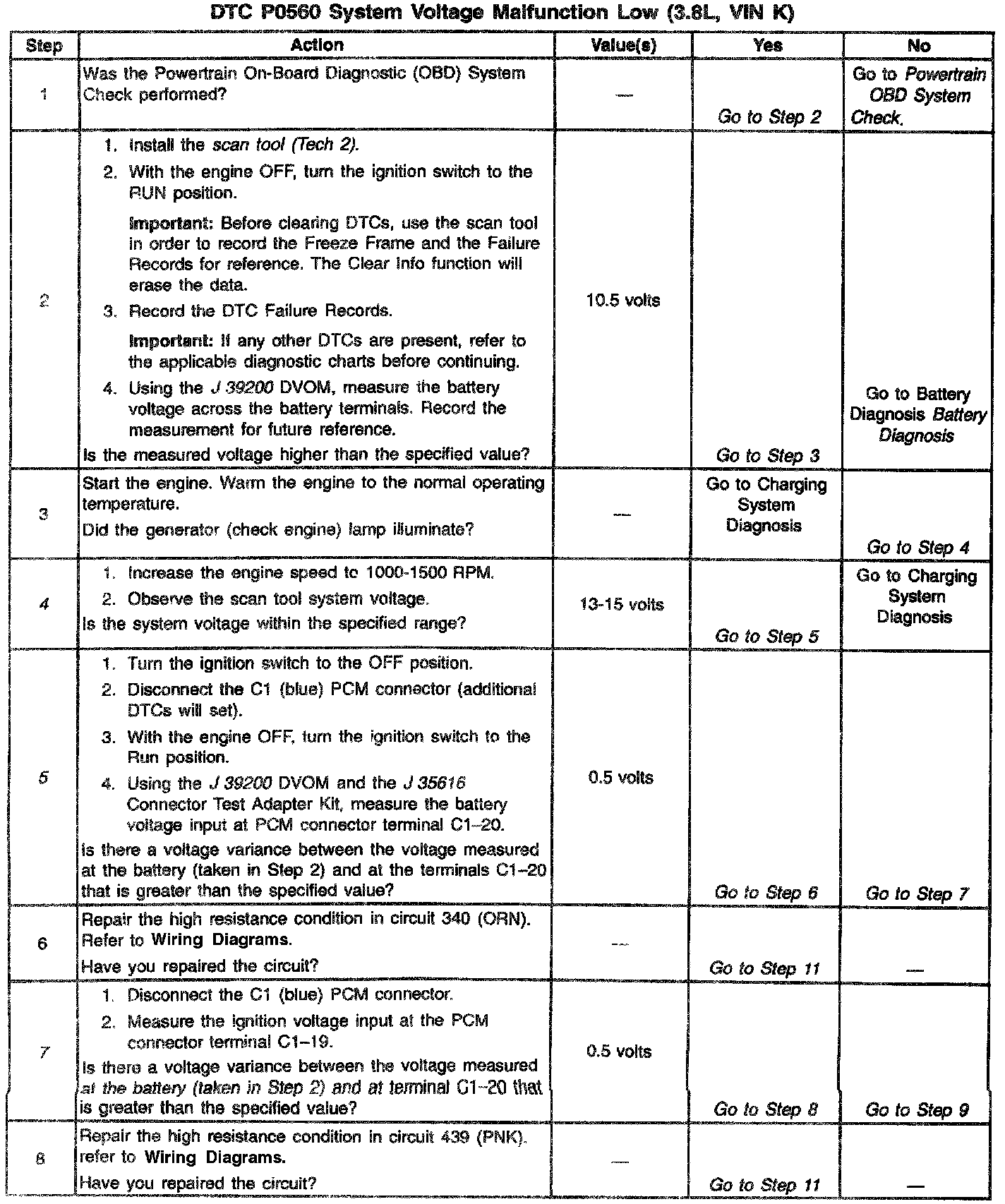

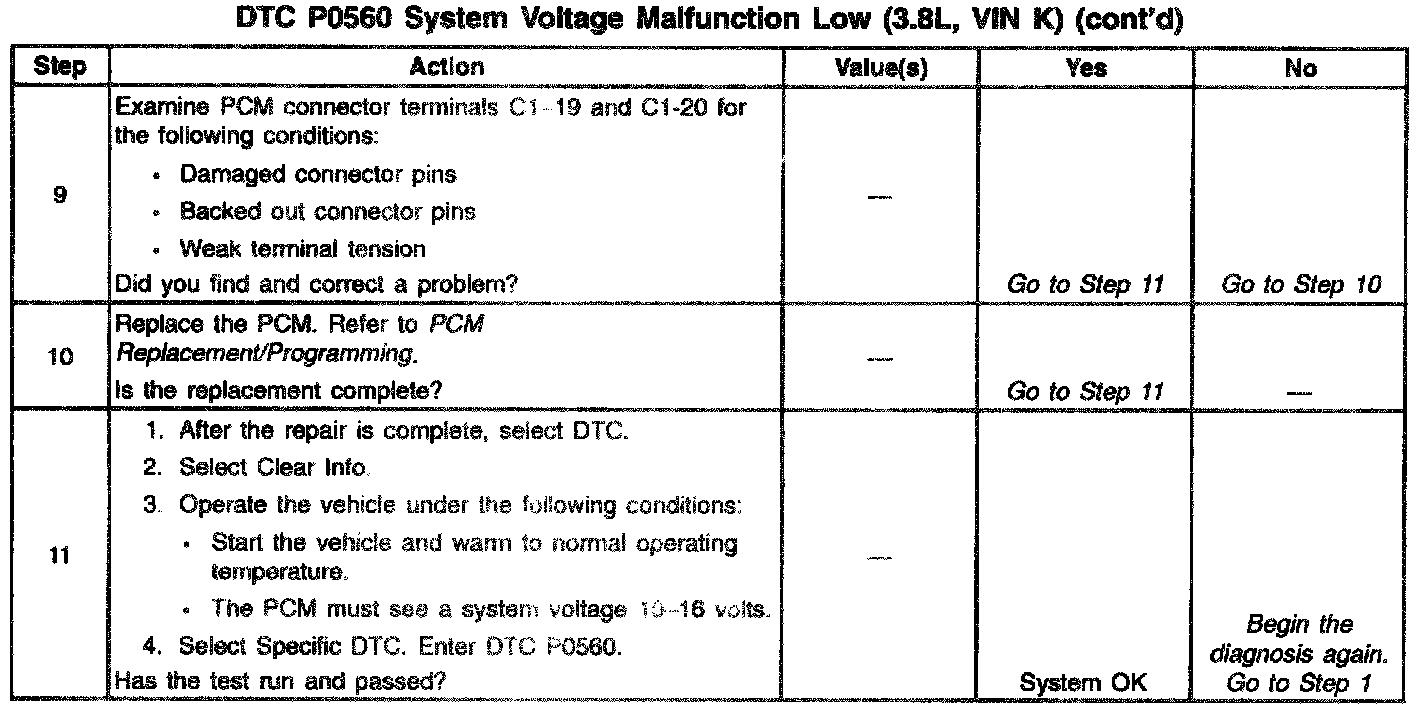

Diagnostic Chart:

Wiring Diagram:

Circuit Description

Circuit 439 is the ignition voltage feed for the PCM. Circuit 340 is the battery voltage feed for the PCM. If the PCM detects a low voltage and a high voltage, then DTC P0560 sets. DTC P0560 is a type D DTC.

Conditions for Setting the DTC
The system voltage is low:
- The engine speed is greater than 800 RPM.
- The system voltage is less than 10 volts.
- All conditions are met for 2 seconds. The system voltage is high:
- The system voltage is greater than 16 volts.
- The TFT is greater than 0°C (32°F).
- All conditions are met for 2 seconds.

Action Taken When the DTC Sets
- All transmission output devices are OFF.
- The PCM does not illuminate the Malfunction Indicator Lamp (MIL).

Conditions for Clearing the DTC
- A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.
- The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

Diagnostic Aids
- Charging the battery with a battery charger may set DTCs. Jump starting an engine may falsely set DTCs.
- If DTCs set when you operate an accessory, inspect the applicable wiring for faulty connections, and excessive current draw.
- Inspect the starter solenoid for faulty connections. Examine the starter solenoid fusible link.
- Inspect the generator for a damaged terminal.
- Inspect the accessory belts for damage. Check the belts for correct tension.

Test Description
The numbers below refer to the step numbers on the diagnostic chart.
4. This step tests the charging system voltage.
5. This step tests tile battery voltage input at the PCM.
7. This step tests the ignition voltage input at the PCM.
