DTC 24

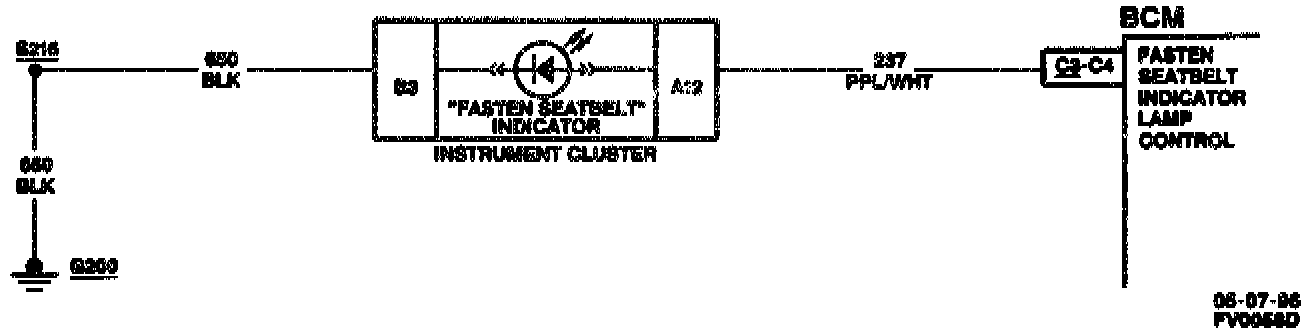

Circuit Description:
The BCM provides a 12 volt output to the "Fasten Seatbelt" Indicator Lamp on the Instrument Cluster while the driver's seatbelt is unfastened

DTC Will Set When:
The "Fasten Seatbelt" output has been detected by the BCM to be shorted to ground, or shorted to B+ for greater than 50 milliseconds.

Action Taken:
DTC 24 will set. The "Fasten Seatbelt" indicator lamp will not illuminate when ignition is "ON" and the driver's seatbelt is not fastened.

DTC Will Clear When:
Fault is corrected and DTC memory clearing procedure is completed.

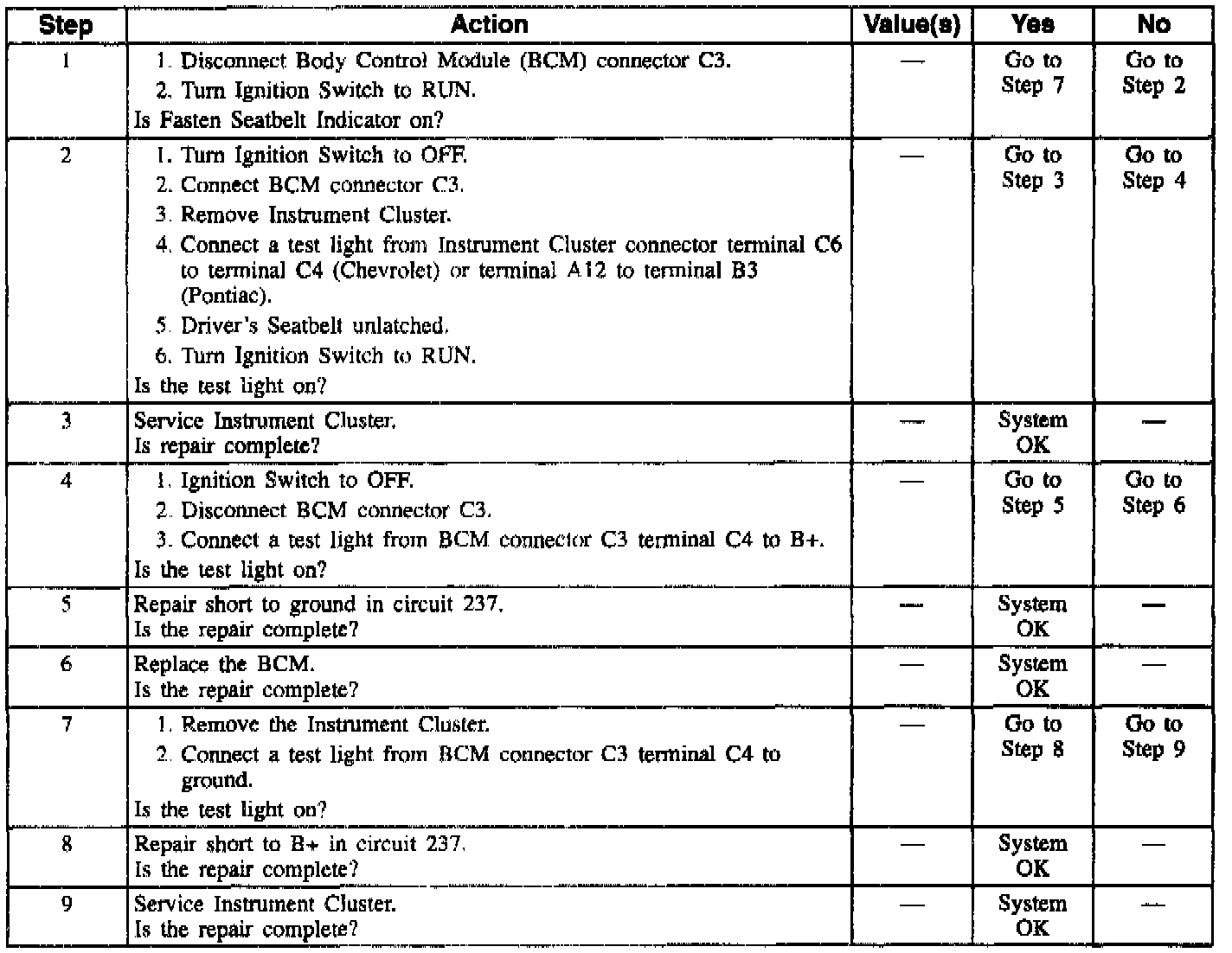

DTC Chart Test Description:
Numbers below refer to the steps in the diagnostic table.
1. This step checks 'Fasten Seatbelt" indicator for operation with BCM disconnected, which would reveal a short to B+ in circuit 237.
2. This step determines if there is a short to ground in the Instrument Cluster.
3. If the Instrument Cluster is OK, this step determines if circuit 237 is shorted to ground or the BCM is defective.
4. If there is a short to B+, this step determines if the short is in the Instrument Cluster or in circuit 237.

Diagnostic Aids:
If the only DTC that flashes is a "History" code (DTC 34), the problem may be intermittent. Try performing the test shown while "wiggling" wiring and connectors; this can often cause the fault to appear. Check for poor connections at the BCM connector, which could cause an open or an intermittent fault.
