Transaxle Mount

TRANSAXLE MOUNT

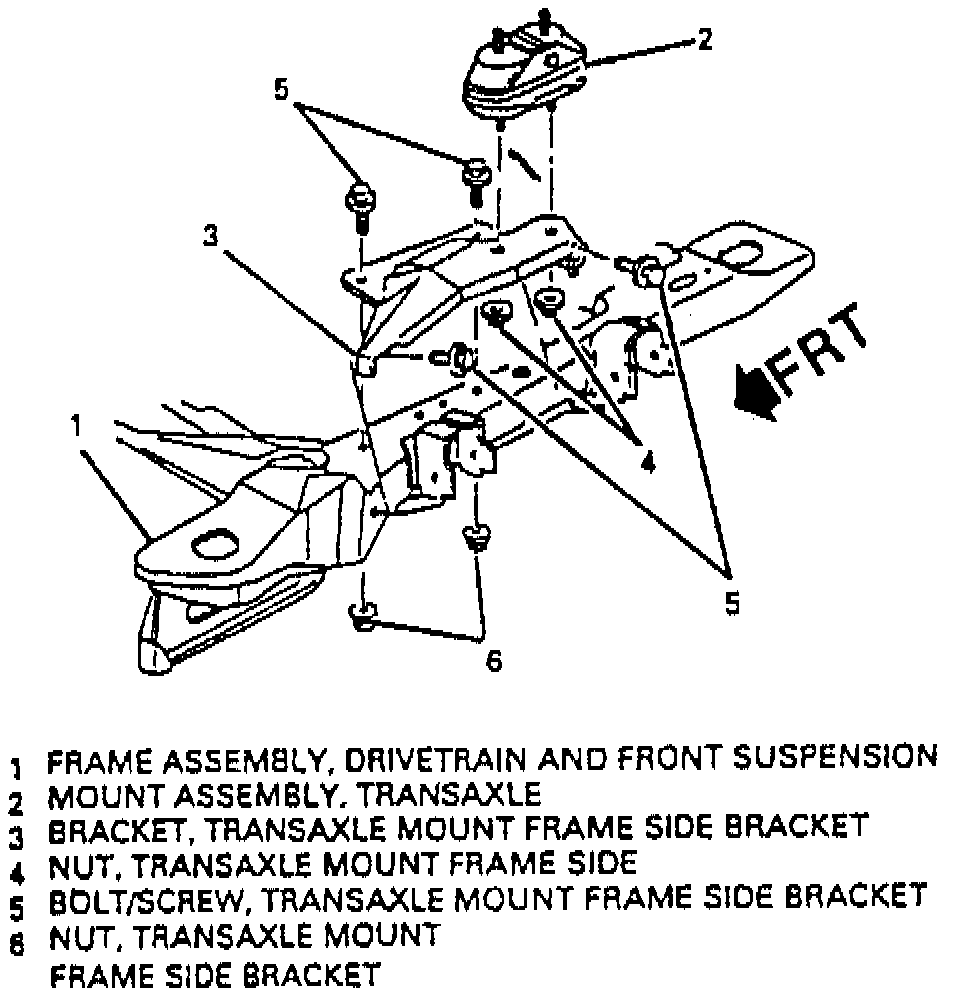

Transaxle Mount:

REMOVE OR DISCONNECT
1. Transaxle bracket. Refer to "Transaxle Support Assembly".
2. Transaxle mount from transaxle mount frame bracket.

INSTALL OR CONNECT
1. Transaxle mount to transaxle mount frame bracket.
2. Transaxle mount frame bracket and attaching bolts/screws and nuts.

TIGHTEN
^ Nuts to 53 Nm (39 lb. ft.).

3. Transaxle bracket to transaxle. Refer to "Transaxle Support Assembly".
